MAINTENANCE

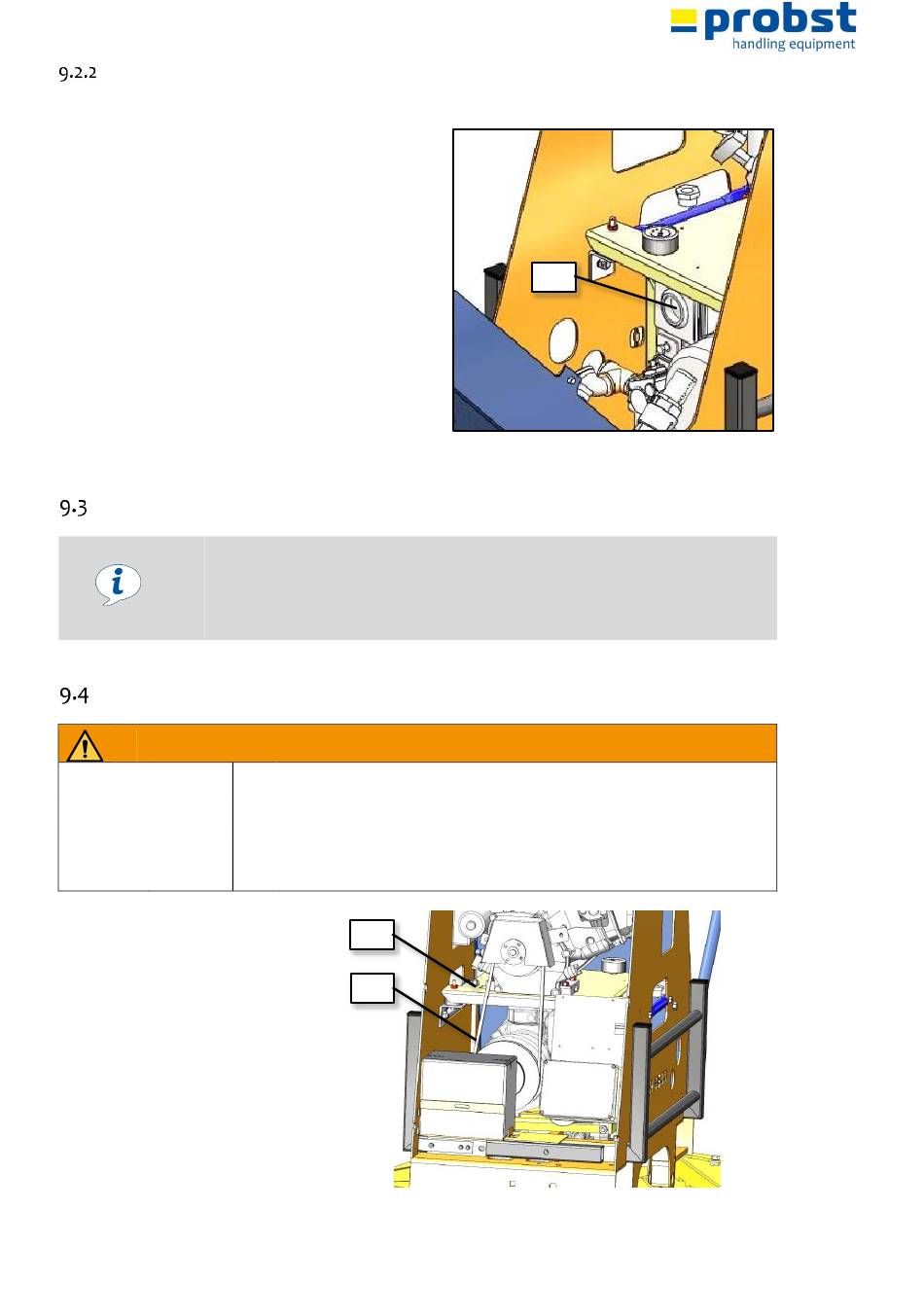

Replacing the oil trap

The oil trap (13.1) may become clogged or start to bleed through.
1. Stop the motor (see chapter 6.8).
2. Vent the vacuum system to ambient pressure.
3. Disconnect the connector cable of the control
panel.
4. Unscrew the operator handle.
5. Swing the reservoir out.
6. Remove the rear cover plate.
7. Unscrew the switch box supporting sheet.
8. For further steps, consult the separate operating
and maintenance instructions for the vacuum
pump in the appendix.

Gasoline motor

See separate operating and maintenance instructions for the gasoline motor.

V-belt

WARNING
►
►
1. Open the rear cover plate.
50
Torn V-belt
The load may fall as a result of vacuum failure.
Inspect the V-belt monthly and replace if necessary.
Replace the V-belt annually.
14.1
14
13.1
