probst SH-3500-B Operating Instructions Manual page 137

START OF OPERATIONS

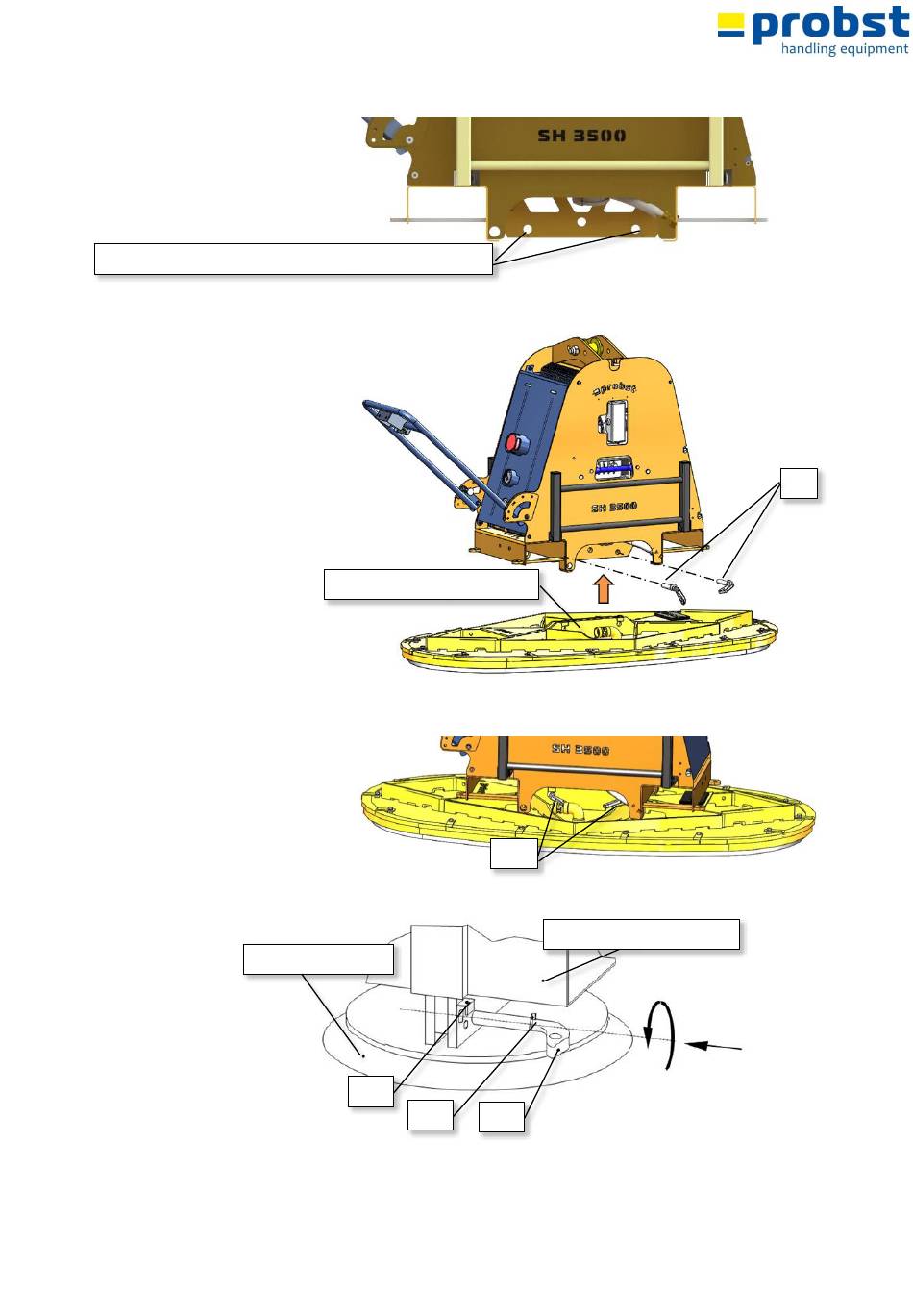

Suction plate mounting holes
2. Lift the lifting device approx. 50 cm.
3. Set the suction plate into
the lifting device.
4. Insert the two socket pins
(32) into the mounting
holes.
5. Turn the socket pins (32)
downward until the
projection (33) is secured
underneath the angled
retainer (34).
6. Check that the socket pins are securely and firmly fastened. It should be impossible to pull them out
7. Connect the vacuum hose to the suction plate and secure it with the built-in screw seal.
8. Before commencing work, inspect the safety features (see chapter 9.7).
27
Suction plate
without turning them.
Suction plate
34
33
32
Lifting device
32
