3.2.2 Topology Diagram

XPOSE 2.0 offers the feature of making topology diagram which require users to import the actual
input and output connection into XPOSE. XPOSE will check the topology according to the actual
input and output modules combination.

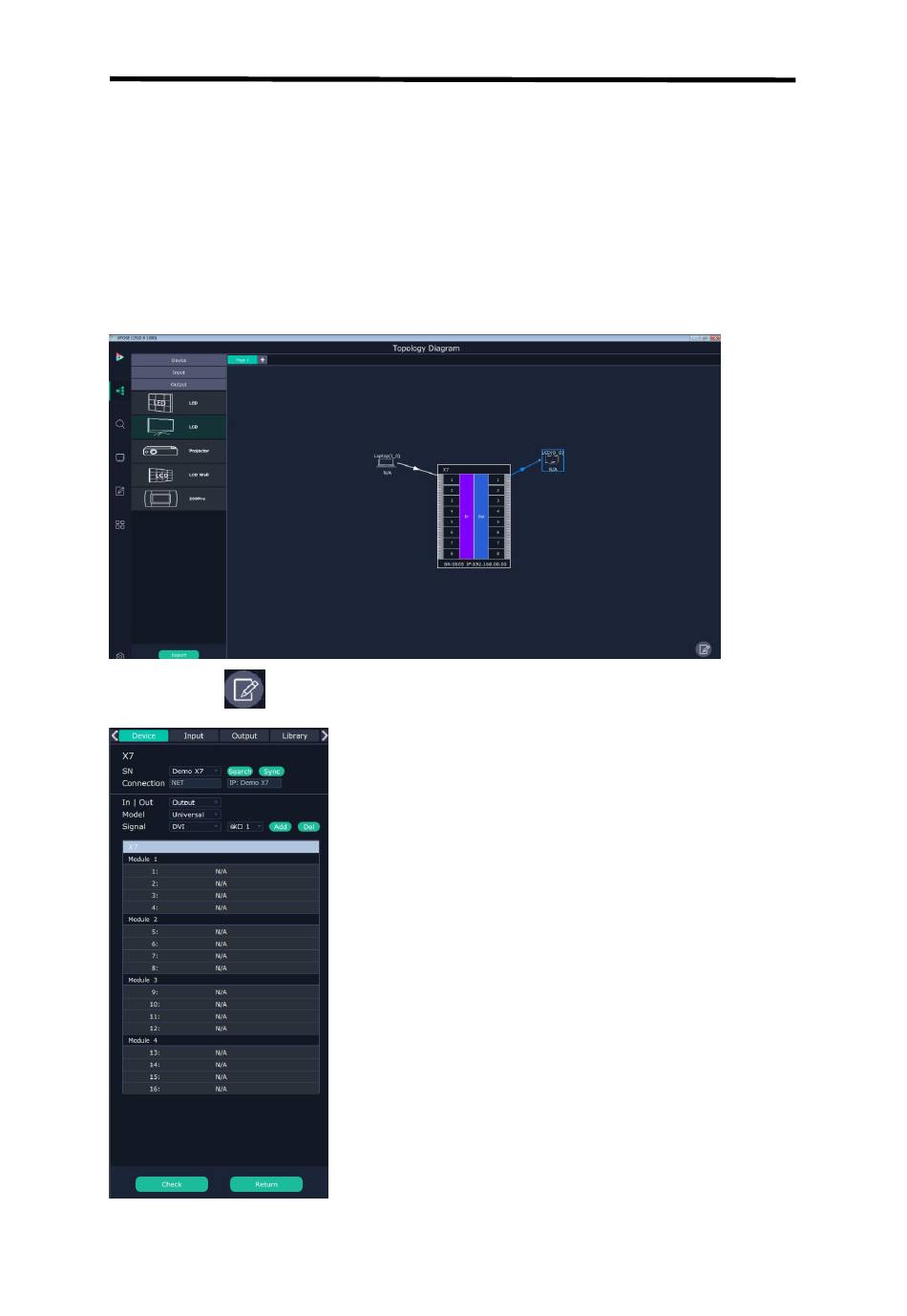

1. Drag device, input source device and output device from the list on the left based on the field
application. For example, drag a X7 from Device, Laptop from Input and LCD from Output list as
follows:
2. Click the icon at the right bottom corner and open the setting interface as following:
