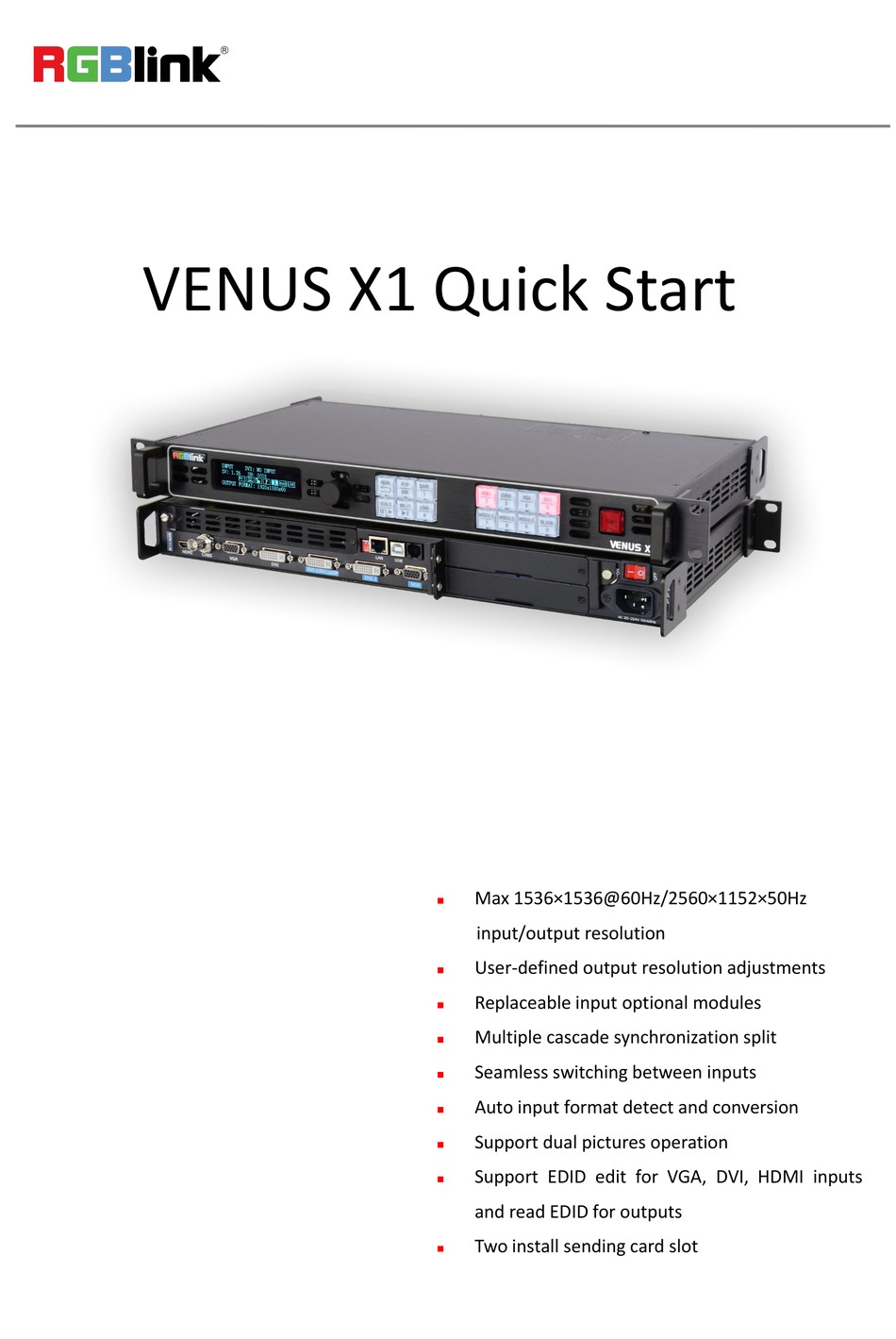

VENUS X1 Quick Start
Max 1536×1536@60Hz/2560×1152×50Hz
input/output resolution
User-defined output resolution adjustments
Replaceable input optional modules
Multiple cascade synchronization split
Seamless switching between inputs
Auto input format detect and conversion
Support dual pictures operation
Support EDID edit for VGA, DVI, HDMI inputs
and read EDID for outputs
Two install sending card slot

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VENUS X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RGBlink VENUS X1

Summary of Contents for RGBlink VENUS X1

  • Page 1 VENUS X1 Quick Start Max 1536×1536@60Hz/2560×1152×50Hz  input/output resolution User-defined output resolution adjustments  Replaceable input optional modules  Multiple cascade synchronization split  Seamless switching between inputs  Auto input format detect and conversion  Support dual pictures operation ...

  • Page 2: Table Of Contents

    TAKE Key..............................22 Transition Setting............................22 Set the Audio.............................23 Using Black Out............................23 Saving Views............................24 Recall Saved Settings..........................24 XPOSE software Operation............................25 Contact Information..............................34 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 3: Product Introduction

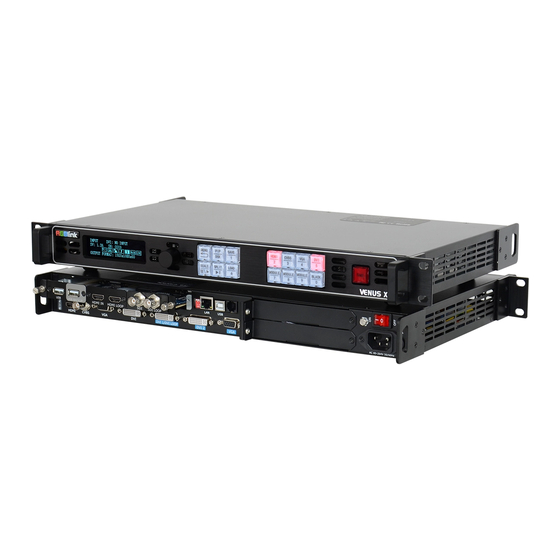

    VENUS X1 is a multiple outputs video processor that accepts a wide variety of video signals, including DVI, VGA, DP, HDMI. CVBS, SDI (SD / HD / 3G compatible) and USB. VENUS X1 combines truly seamless, fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high quality, high resolution video presentations.

  • Page 4: Packing Configuration

    Antistatic Bag Note: AC Power Cable supplied as standard according to destination market. USB is contained on the Warranty/Registration Card. Please keep. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 5: Hardware Orientation

    Load button VGA signal source button SCALE Size and position adjusting button Single and double picture switch button DVI signal source button PIP/DSK (VENUS X1 V1.4 can’t support DSK button function) SDI/VGA/DVI/DP/CVBS/USB/ MODULE/7 SPLIT Split button HDMI signal source button...

  • Page 6: Back Panel

    Sending Card Interface DVI/DVI LOOP Output DVI-I Port Illuminated Power Switch DVI Output DVI-I Port Power IEC-3 VGA Output DB15 Port Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 7: Operating Instruction

    Using TAKE Mode  Transition Setting  Set the Audio  Using Black Out  Saving Views  Recall Saved Settings  Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 8: Single Image Switching

    Same with above, switch the signals among CVBS, HDMI and input module option signal. PIP Setting Enable the PIP function VENUS X1 supports seamless switching for single image and double images. Push the [PIP/DSK] button, the LED light is on, and enter to the PIP menu items. OLED module show as follows: ->PIP...

  • Page 9: Set Led Display Connection

    Set LED Display Connection VENUS X1 can realize three connection as follows connecting the Port D or Port U of one sending card to LED screen, connecting the both Port D and Port U of one sending card to LED screen, connecting the Port D and Port U of two sending cards to LED screen (PORT A or PORT B is for Colorlight, and PORT D or PORT U is for Linsn).
  • Page 10 (9) Set the horizontal card, vertical card, width and height. For example, set horizontal card as 3, vertical card as 2, width and height as 120, shown as follows: CHOOSE CABLE PORT U ->HORIZONTAL CARD VERTICAL CARD WIDTH Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 11 Offset (A/B) Y >> CONNECT CARD TYPE After setting, turn the knob and choose <CONNECT CARD TYPE> according to actual connection mode. VENUS X1 support 8 kinds of connection modes, they are respectively. HEIGHT Offset (A/B) X Offset (A/B) Y >>...
  • Page 12 Turn the rotary knob, select <SENDING CARD NO.>, push the knob to confirm. Turn the knob and choose “No.1”, push the knob to confirm. Shown as follows: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 13 240 (Note: Offset (A/B) Y=VERTICAL CARD×HEIGHT, in the previous part, we set vertical card as 2 and height as 120). Shown as follows: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 14 (5) Same as above, connect Port D2 and Port U2 of No.2 Sending Card to LED screen. (6) Turn the knob, and select <LED MANAGEMENT>: SYSTEM >> ->LED MANAGEMENT >> LANGUAGE/语言 FACTORY RESET >> Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 15 <CHOOSE CABLE>, push the knob to confirm. Turn the knob, select PORT U2 and push the knob to confirm. SENDING CARD SET >> ->RECEIVING CARD SET >> ->CHOOSE CABLE PORT U HORIZONTAL CARD VERTICAL CARD WIDTH Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 16 (12) Same as above, set X of Port D of No.2 sending card as 360. Then connect the Port D and Port U of Two Sending Cards to LED Screen is finished. Rendering is as follows: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 17 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 18 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 19: Split Setting

    Split Setting SPLIT is used when multiple VENUS X1 are used in cascade mode. When do cascade, connect the signals to the signal distributor first, and then connect from the outputs of the signal distributor to each input of VENUS X1.

  • Page 20: Set The Output Resolution

    Only digital 50 or digital 60 supports for the refresh rate. Use the digital buttons to finish the settings. 6. After input all the values, push knob to enable VENUS X1 to output this resolution. VENUS X1 will take 5~10 seconds to enable this output resolution.

  • Page 21: Zoom The Image

    H POS: Horizontal phase setting. V POS: Vertical phase setting. RESET: If image quality distorts by improper operation, it can be recover by reset. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 22: Text Overlay Setting

    (1) If select <FREEZE>, push the button, its LED light turns on, and freeze the image. Push the button again, its LED light is off, and output the video image. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 23: Scale Key

    (2) If select <TEST PATTERN>, push the button, its LED light turns on, the output will be switched to test pattern. There are 66 kinds of test patterns. If choose <AUTO SWITCH>, VENUS X1 will output all the test patterns one by one, and the interval between is 1 to10S. Push the button again, its LED light is off, and output the video image.

  • Page 24: Set The Audio

    Black out descriptions: Black signal realizes one-key-touch to a black screen. VENUS X1 provides black effect processing for output with cut black effect. Operation is as below: Push the [BLACK/0] button, then output will cut to BLACK, shown as below: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C...

  • Page 25: Saving Views

    Saving Views VENUS X1 provides 36 positions for saving or recording parameters. To save current parameters and settings: 1. Push the [SAVE/1] button, the button light is on, and enable the SAVE function. SAVE TO ->SAVE 1 Button is on can be saved Button flashes will be overwrite 2.

  • Page 26: Xpose Software Operation

    XPOSE software Operation 1. Connection Connect the VENUS X1 to any LAN port of the wireless router via a network cable. The LAN port are marked with the red box. Shown in the figure below (connect from the left to right).
  • Page 27 (Android or router) Apple IOS) Connect the LAN port VENUS wireless router VENUS X1 (3) System Setting Push the [MENU] button, and enter to the menu items, turn the rotary knob and select <SYSTEM>. ->SYSTEM >> LED MANAGEMENT >>...
  • Page 28 Set the <IP ADDRESS> and <SUBNET MASK>, check the IP address of the wireless router, and make sure it is same with the other four IP address that it connect. The VENUS X1 will automatically save all the network parameters, it will not be cleared even factory reset. 3. APP connection (1) Download and install the APP XPOSE APP supports IOS and Android system.
  • Page 29 Open APP Search Device Connect the Device Operate the Device (3) APP functions ① Switch & Display Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 30 X and Y. Scale Crop User can also click “Edit” and precise adjust the width, height, X and Y in the pop-up window. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 31 R, G, B will be adjusted synchronously. “Reset” will factory reset all the parameters. Brightness Contrast Color Temp ④ Test Patterns Including color bars, color and grid, and include all the common test patterns. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 32 Output Adjust ⑥ Save Settings Load scene is load the saved scenes. Save scene is save the adjusted parameters. VENUS X1 supports 36 groups of “Load Scene” and “Save Scene”. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C...
  • Page 33 The device info includes device name, serial number, IP address, FPGA1, FPGA2, Core and Comm. If image quality distorts by improper operation, it can be recover by “Factory Reset”. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
  • Page 34 Factory Reset Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...

  • Page 35: Contact Information

    Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.

Table of Contents
