Quick Start
● 8K ready with quad link HDMI 2.0 input
● HDR 10 & HLG compliant
● Up to eight 4K/UHD layers per port
● Fully customisable in/out resolutions & EDID Management
● OSD overlay features
● XPOSE 2.0 Web Server Built in with IP connection
● Genlock/Sync
● I/O Module Based Design and hot swap capacity
● Each input module support up to 4*4K2K@60
● Each output module support up to 2*4K2K@60
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RGBlink VENUS X8K LEGENDARY
Summary of Contents for RGBlink VENUS X8K LEGENDARY

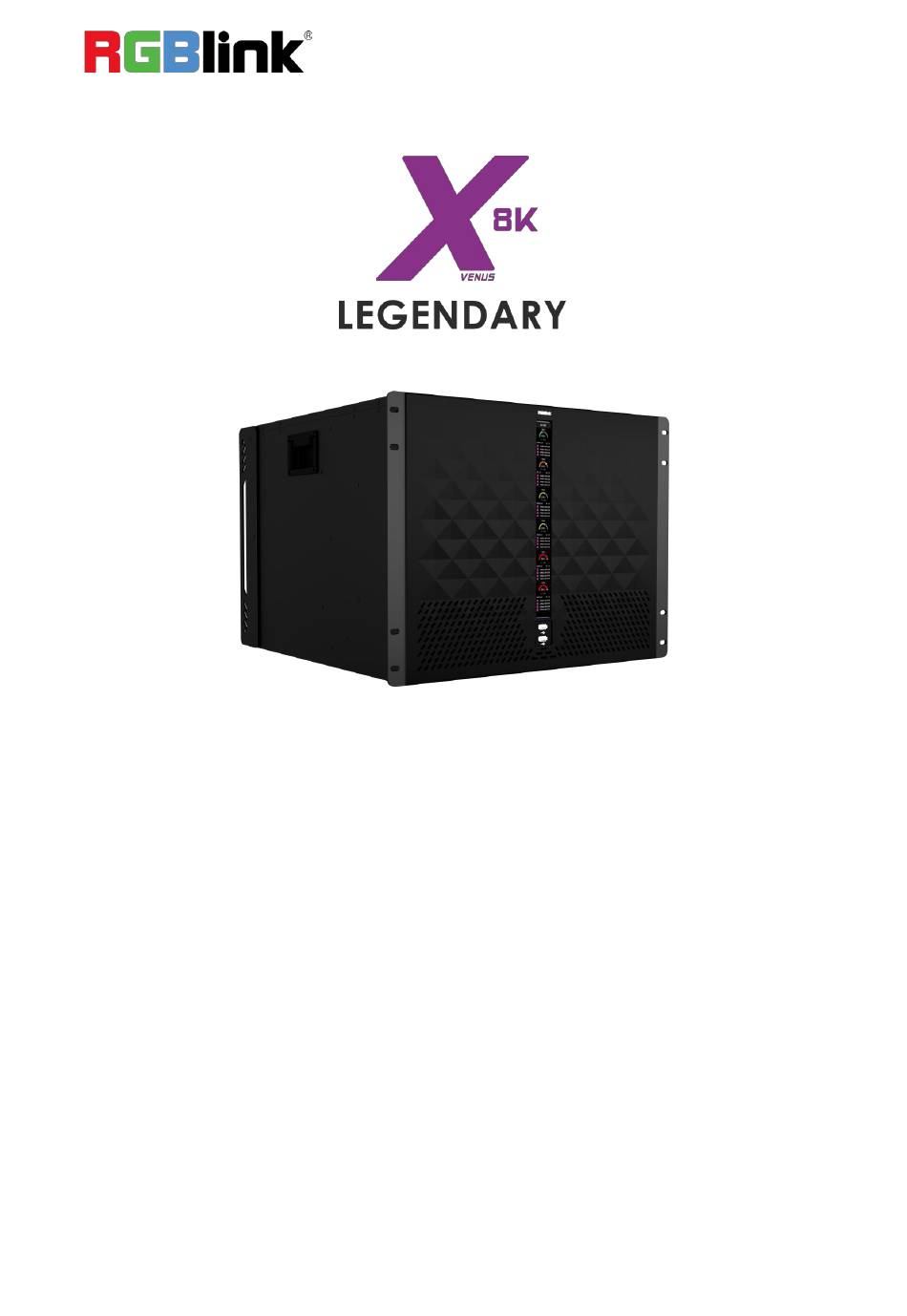

- Page 1 Quick Start ● 8K ready with quad link HDMI 2.0 input ● HDR 10 & HLG compliant ● Up to eight 4K/UHD layers per port ● Fully customisable in/out resolutions & EDID Management ● OSD overlay features ● XPOSE 2.0 Web Server Built in with IP connection ●...
-
Page 2: Table Of Contents
Turn on Your Product.............................. 7 Use Your Product................................. 7 Install XPOSE 2.0..............................8 Layer Management............................20 Preset Management............................. 24 System Setting...............................28 Web Server Control X8............................32 Contact Information..............................33 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 3: Overview
X8 is an HDCP compliant, scalable and extendable routing and video wall processor configurable to support a variety of inputs and outputs. It features RGBlink 3rd generation high performance video scaling technology for excellent image reproduction. The most outstanding feature of it is its throughly modular design, the card frame style, SmartSlot system allowing installation of up to 24 inputs and 12 outputs. -
Page 4: Packing Configuration
Packing Configuration AC Power Cord Network Cable HDMI Cable Note: AC Power Cable supplied as standard according to destination market. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 5: Hardware Orientation
Front Panel Front Panel Structure TFT-LCD panel,show the info of input and output module,device status,weather and so on 1×USB 2.0 ; 1×USB 3.0(blue), for upgrade © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 6: Rear Panel
2 slots for power supply modules and Power Switch HDMI 2.1& DP 1.4 Input Module Leadtime: 2022/6/1 DP 1.2 Input Module Leadtime: 2022/6/15 DP 1.2 Output Module Leadtime: 2022/7/1 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 7: Install Your Product
The system begins to work,and the TFT-LCD screen shows the input slot and output slot information, device status, COM. Versions. IP address and serial number. Use Your Product © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 8: Install Xpose 2.0
X8 and click to obtain the control of this device in 【Chosen Devices】 ,as shown in the picture below. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 9 Click any input port in purple area, the board where the port locates is selected. Users can do settings to the board now. A red rectangle flashes around the chosen port when it is clicked. Property Setting © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 10 Gamma:0~9.99(Adjust the brightness of picture,the higher the number,the higher the brightness) Bright Factor: 0~9.99 EDID Setting Input Port: Current Port and type Customized EDID: Monitor Name, Width ,Height and Frequency © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 11 Format for ALL: 720×480@60i 到 7680×1080@60 Format for Module: 1024×768@60 到 7680×1080@60 DE Setting Port: choose current port or Port All Bits: 8bits/10bits/12bits HDR: ON/OFF © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 12 Pixel alignment: Left, Right, Center to Horizontal,Vertical Center Right, Align Bottom Right, Align left bottom, Vertical center left, Vertical center, Horizontal center bottom Transparent:font transparent © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 13 Overview: show Device Info, module info of version and temperature in each slot. IP Setting Select Auto IP address or manually type in the IP address, MASK and Gateway © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 14 Remove Logo/EDID,Save IP Display Management Display System is for users to set layout of outputs. Click this icon first enter the interface as follow: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 15 Mode and Edge Blending . Rotation and Edge blending is valid only when ARO rotation module is installed to the device. Each mode is marked in different color and provided with fitted templates. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 16 H Total, V Total, Row and Column, then click a customized containers is created. If this container need to be saved, click SAVE © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 17 Place the mouse in the Container, roll the mouse can zoom in or out the Container in the XPOSE window. Clicking icon can do the same work. Drag the border of the display area to move its place in the interface. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 18 Display System Show all Containers/Display Area that have been created. Click tick icon behind to give alias to the each Display Area if necessary. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 19 There are two ways to adjust the display, by Parameter or by the bar below the window. Parameter Bar under XPOSE window Swap : Swap two output ports if needed. Hotkey © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 20: Layer Management
Display Area Here is to show all the Display Area set in previous step System Management. Click to cancel or use the corresponding Display Area. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 21 8 layers. For example in one display area, there are monitor 5 and monitor 6, monitor 5 can contain 8 layer and so does monitor 6) © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 22 Place the cursor on the layer, it turns to a palm icon , press the left of mouse, the icon turns to a fist moving the mouse can drag the layer. Layer Remove © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 23 Use the tools bar on top of window to do such operations Layer Backward Layer Forward Layer to Bottom Layer to Top Select All Copy Selected Paste Selected Cancel Selected Delete Selected © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 24: Preset Management
Preset Management Preset Management is designed to switch bank (scene setting done in last step). Preset Management Mode: 1. Manual Mode; 2. Schedule Mode © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 25 BANK. Fade Time: 0.0 ~10.0S Black out: slide to ON or OFF The tick on the bank indicates that the bank is selected. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 26 Click Load Page, pages with bank saved are green, select one from them and the selected one becomes red. The bank is loaded from page to PST. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 27 Click the color block after Color Selection and choose a new color for the boarder of chosen bank. For example change Bank1to RBGlink, with pink boarder © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 28: System Setting
3.Turn on Daily Loop and Loop Switch System Setting Click this icon and enter System Setting interface © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 29 Drag Input, Output, Layer and Preset from the list to the keys you desired as follow: Please note the keyboard area where allows to set short cut keys as follow: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 30 New version of XPOSE 2.0 is blank default in Find Device. Users are supposed to choose the device needed in System Setting. Communication Setting Search by Serial Port, Ethernet Connection or Both. Default communication by both. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 31 Delete:Delete user name and password already built. Permission: functions on this XPOSE 2.0 on this computer that the created users are allowed to operate. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 32: Web Server Control X8
2.Type the IP address of the device in the web,and then login in,the interface of web control are the same as XPOSE software.Please refer to <3.2 XPOSE Control X8>. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 33: Contact Information
All video products are designed and tested to the highest quality standard and backed by full 1 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
