Summary of Contents for RGBlink X8
- Page 1 USER MANUAL Article No: RGB-RD-UM- X8 E001 Revision No: V1.1...
-
Page 2: Table Of Contents
4.2 Options................................41 Chapter 5 Support..............................42 5.1 Contact Us..............................42 Chapter 6 Appendix..............................43 6.1 Specification..............................43 6.2 Terms & Definitions............................. 44 6.3 Revision History............................49 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
Installation Safety Summary Safety Precautions For all X8 installation procedures, please observe the following important safety and handling rules to avoid damage to yourself and the equipment. To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. - Page 5 Unpacking and Inspection Before opening X8 shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. If you find any shortages, contact your sales representative.
-
Page 6: Chapter 1 Your Product
AC Power Cable supplied as standard according to destination market. Upgrade tool package and user manual are stored in the USB disk, please keep it. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -

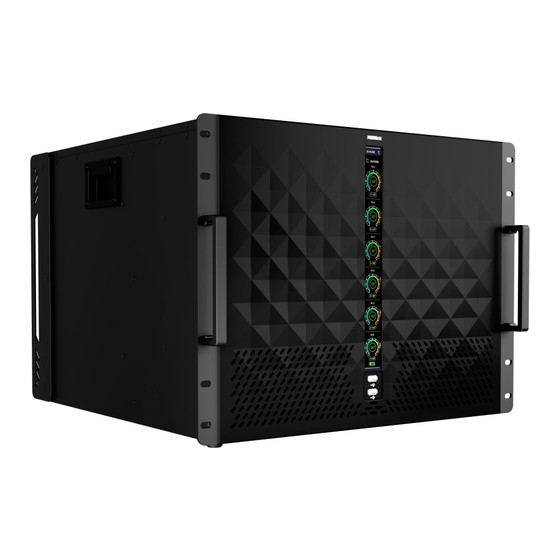

Page 7: Product Overview
1.2 Product Overview X8 as a new member of X series maintains leading technology.Since 2015,X series provide excellent solutions for national conference,stage activities and other high-end applications.With the higher requirements of resolution and layers,X8 upgrades and supports 4K/8K processing. X8 is an HDCP compliant, scalable and extendable routing and video wall processor configurable to support a variety of inputs and outputs. -
Page 8: Rear Panel
6 output module slots for Dual 4K HDMI Output Module,up to 12 outputs totally Communication ports including Genlock,LAN,RS232,CTL,USB 3.0 and HDMI CXP ports(to be developed) 2 slots for power supply modules and Power Switch © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 9: Front Panel
1.2.2 Front Panel Front Panel Structure TFT-LCD panel,show the info of input and output module,device status,weather and so on 1×USB 2.0 ; 1×USB 3.0(blue), for upgrade © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 10: Dimension
1.2.3 Dimension Following is the dimension of X8 for your reference: Dimension: 541mm×484mm×355.6mm © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 11: Chapter 2 Install Your Product
The system begins to work,and the TFT-LCD screen shows the input slot and output slot information, device status, COM. Versions. IP address and serial number. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 12: Chapter 3 Use Your Product
CPU:i5 and above Double click ,it will pop-up the installer language box, select the language, for example, select “English”, and click “OK” to confirm. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 13 Click “Next” to install: Click “Browse...” to select the XPOSE software install location: Click “Install”: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 14 During installation, it will pop up the window of Install Shield Wizard for Virtual Com port: If user install the XPOSE software for the first time, click “Next Then click “Install", as shown in the figure below: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 15 Click “Finish” and complete the installation, as shown in the figure below: Click “Finish” and is ready to run the XPOSE : © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 16: Xpose Controls X8
Click Activate and scan the QR code an email from ill be sent to the Register email address. RGBlink Registrations w Type in the activate code and confirm © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 17: Input And Output Settings
Management, Keyboard Settings. The details of each hierarchy will be described hereafter. 3.2.2 Input and Output Settings Connect the Device Click the icon to open【System Setting】,and select X8 in【Find Devices】. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 18 Click any input port in purple area, the board where the port locates is selected. Users can do settings to the board now. A red rectangle flashes around the chosen port when it is clicked. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 19 Height: vertical size after crop SDR to HDR Status: ON/OFF Gamma:0~9.99(Adjust the brightness of picture,the higher the number,the higher the brightness) Bright Factor: 0~9.99 EDID Setting © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 20 Format: when format type is Standard, there are standard format list to choose. Format for ALL: 720×480@60i 到 7680×1080@60 Format for Module: 1024×768@60 到 7680×1080@60 DE Setting © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 21 X/Y:the starting horizontal and vertical position Width/Height:the horizontal and vertical size of the text Font Style Font: font of the text,all fonts installed in the computer is available © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 22 Click Return , there are overview, IP setting,,Fan Control,Power ON,Factory Setting, Overview: show Device Info, module info of version and temperature in each slot. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 23 Fan Control Auto adjustment:ON/OFF Fan speed: 0-100 Backup Backup:ON/OFF Backup Mode: Input Backup/Preset Backup Power On Reserve Power On Reserve:0~255s Factory Setting Remove Logo/EDID,Save IP © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 24: Display Management
Template There are 15 types of basic “Display Area” which is used to contain output interface,and could be regarded as layout of output. Mode © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 25 At present, X8 supports Presentation Mode, Other products of X series also support PST+PGM Mode,Rotation Mode and Edge Blending . Rotation and Edge blending is valid only when ARO rotation module is installed to the device. Each mode is marked in different color and provided with fitted templates.
- Page 26 Place the mouse in the Container, roll the mouse can zoom in or out the Container in the XPOSE window. Clicking icon can do the same work. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 27 Display to cancel the display in Display Area Pressing CTRL+ALT can lead to close of all displays on the XPOSE window. Display System © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 28 There are two ways to adjust the display, by Parameter or by the bar below the window. Parameter Bar under XPOSE window Swap : Swap two output ports if needed. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 29: Layer Management
Hotkey 3.2.4 Layer Management Layer Management is designed to manage the layer of each monitor. Click this icon to enter the interface: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 30 (each neighboring monitor (5 and 6, 9 and 10) allows to put 8 layers, if there is no neighboring monitor in the display area, the single monitor can contain 8 layers. For example in one display area, there are monitor 5 and © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 31 Place the cursor on the layer, it turns to a palm icon , press the left of mouse, the icon turns to a fist moving the mouse can drag the layer. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 32 Other Operation on Layer Use the tools bar on top of window to do such operations Layer Backward Layer Forward Layer to Bottom © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 33 When layer setting of one BANK is done, click next or other BANK, this BANK can be saved automatically. Blending Width:the width of blending Turn ON blending HotKeys Hot keys, provided to do quick layer setting such as Copy Layer, Layer move © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 34: Preset Management
Switch Manual Mode or Schedule Module by the bar in the left bottom corner of the window. Preset is showing the BANK selected. PGM is in first box in the bottom left. Take Setting © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 35 Select a bank,click Page,select Page X,the bank is saved in the page. The page turns green then become green, indicating the bank is saved in the page. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 36 Select a bank and click Preset Name , fill in the blank after New Preset Name to rename a Preset (Bank) Click the color block after Color Selection and choose a new color for the boarder of chosen bank. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 37 Start Time and End Time if needed.Click this icon to delete this preset if it is not needed. 3.Turn on Daily Loop and Loop Switch © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 38: System Setting
Input, Output, Layer and Preset. Drag Input, Output, Layer and Preset from the list to the keys you desired as follow: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 39 Find Device New version of XPOSE 2.0 is blank default in Find Device. Users are supposed to choose the device needed in System Setting. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 40 Delete:Delete user name and password already built. Permission: functions on this XPOSE 2.0 on this computer that the created users are allowed to operate. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 41: Web Server Control X8
1.Make sure your computer and the device are in the same network segment. 2.Type the IP address of the device in the web,and then login in,the interface of web control are the same as XPOSE software.Please refer to <3.2 XPOSE Control X8>. © Xiamen RGBlink Science & Technology Co., Ltd. -
Page 42: Chapter 4 Order Codes
Chapter 4 Order Codes 4.1 Product 310-0008-01-0 4.2 Options 190-0008-01-0 Quad 4K HDMI Input Module 190-0008-21-0 Dual 4K HDMI Output Module © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 43: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 44: Chapter 6 Appendix
2160p@25/29.97/30/50/59.94/60 VESA 640×480@60|800×600@75|1280×768@50/60| 1280×1024@60|1360×768@60|1600×1200@60| 1920×1080@60|2048×1152@60|2560×812@60| 2560×816@60|2560×1600@60|3840×1080@30/60| 3840×2160@30/50/60 Format Standard HDMI 2.0 Color Space RGB/YUV444 | YUV422 Indicator Light White Light:normal signal connection;Unlit:no signal connection © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 45: Terms & Definitions
29 pins that handles both digital and analog video. ●SDI：Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels are © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 46 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 47 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini B Micro-A Micro-B Type C USB 2.0 USB 3.0 USB 3.1&3.2 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 48 ●H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video compression standard. H.264 was standardized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving Picture Experts Group (MPEG). © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 49 This serves as a colour synchronizing signal to establish a frequency and phase reference for the Chroma signal. Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 50: Revision History
Update Product picture,dimension Sylvia All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
