Lights

The lights function can operate basic on/off discrete control and for dimmable control with PWM or 0-10V
dimming. Dimming controls can be ramped up and down with a ramp-rate setting. Multiple dimming set-
tings can be layered to create a complex lighting pro le. Lighting control includes features to dim lights
based on a light intensity or if a high temperature condition exists.
To con gure a lighting control, set the enable and schedule properties, then select a control mode (discrete
or dimmable.) Con gure the output assignments and if the light is dimmable, set the the target intensity
and ramp rate.
It is possible to con gre both a discrete output for controlling mains/circuit power and a dimmable output
for controlling intensity.

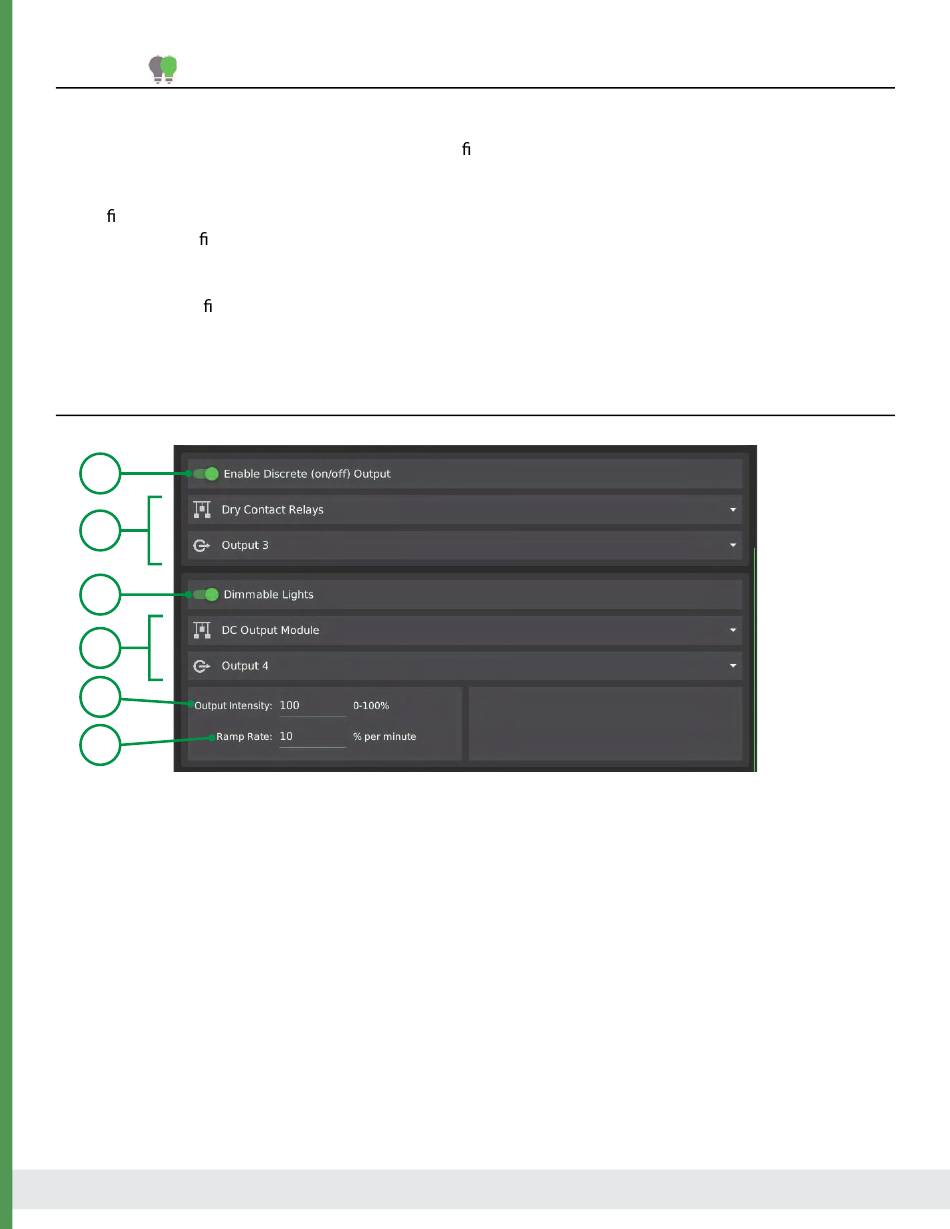

Light Control Modes
1
2
3
4
5
6
1. Discrete Mode Enables discrete (on/off ) output control.
2. Discrete Output Select a device and output on the device to operate.
3. Dimmable Mode Enable the analog dimmable output control.
4. Analog Output Select a device and an analog output on the device to operate the dimming control.
5. Output Intensity Target intensity for the dimmable output.
6. Ramp Rate Rate of change from current dimmable output intensity to new intensity.
