MX Motor Monitoring

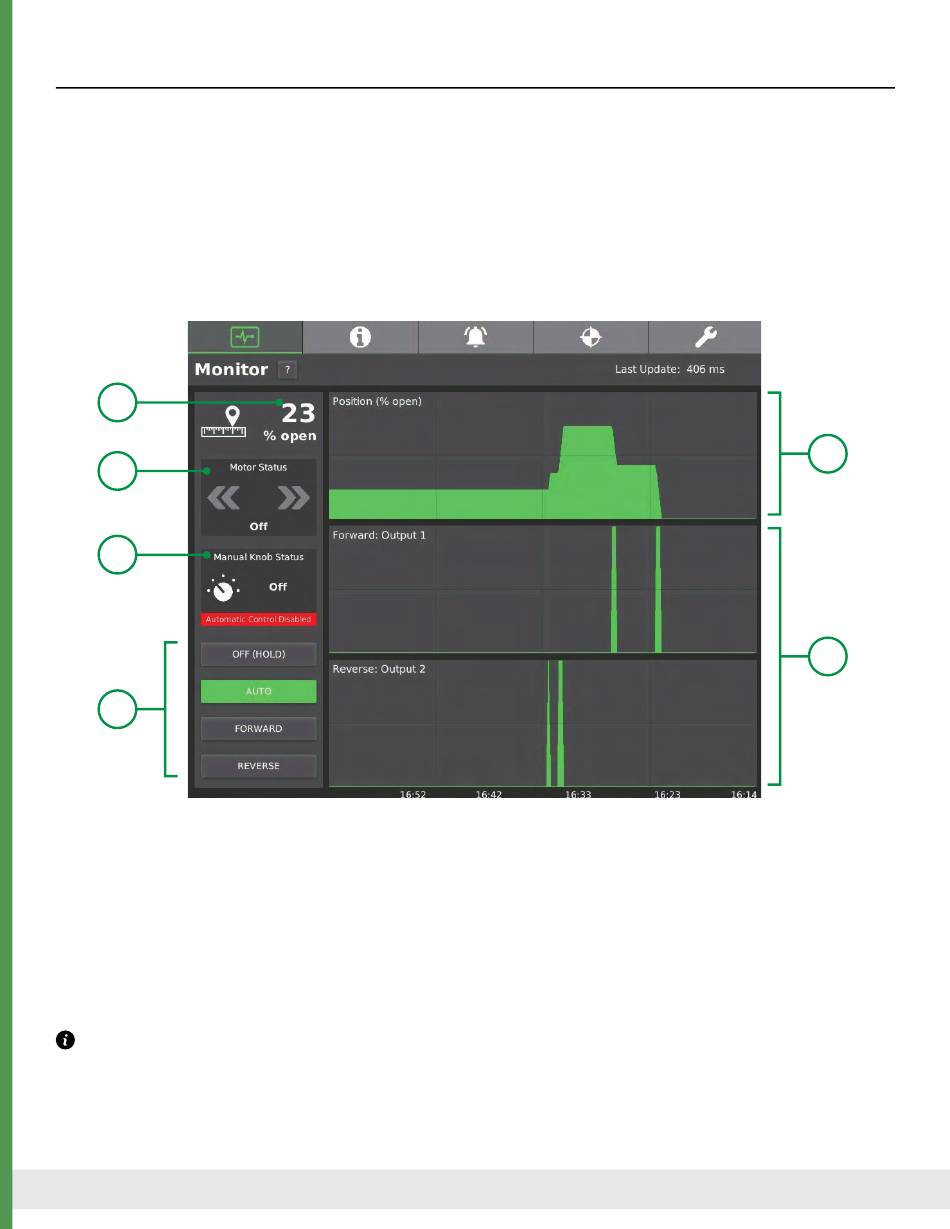

The MX monitor page displays data relevant to the MX motor controller:
• Current MX controller position
• Forward/reverse output status
• Manual knob position
• Manual overrides
• History charts
The time since the last reading update is shown in the page title bar.
Additional data can be displayed by touching on a graph pane to open the enlarged graph window.
1
2
3
4
1. Position
Current position reported by the MX controller.
2. Output Status
Graphic and info displaying the output status; forward, reverse or off.
3. Knob Status
Displays current position of the MX controller's manual override knob.
4. Manual/Auto
Manually operate the MX controller, disable or enable automatic control.
Automatic or manual controls are not available if the knob position is not in "auto."
5. Position Graph
Graph history pane of the motor position.
6. Output Graph
Graph history pane of the motor outputs (forward, reverse.)
NOTE
The MX position is calibrated on the calibration page; see the calibration section.
