Output & Pump Monitoring

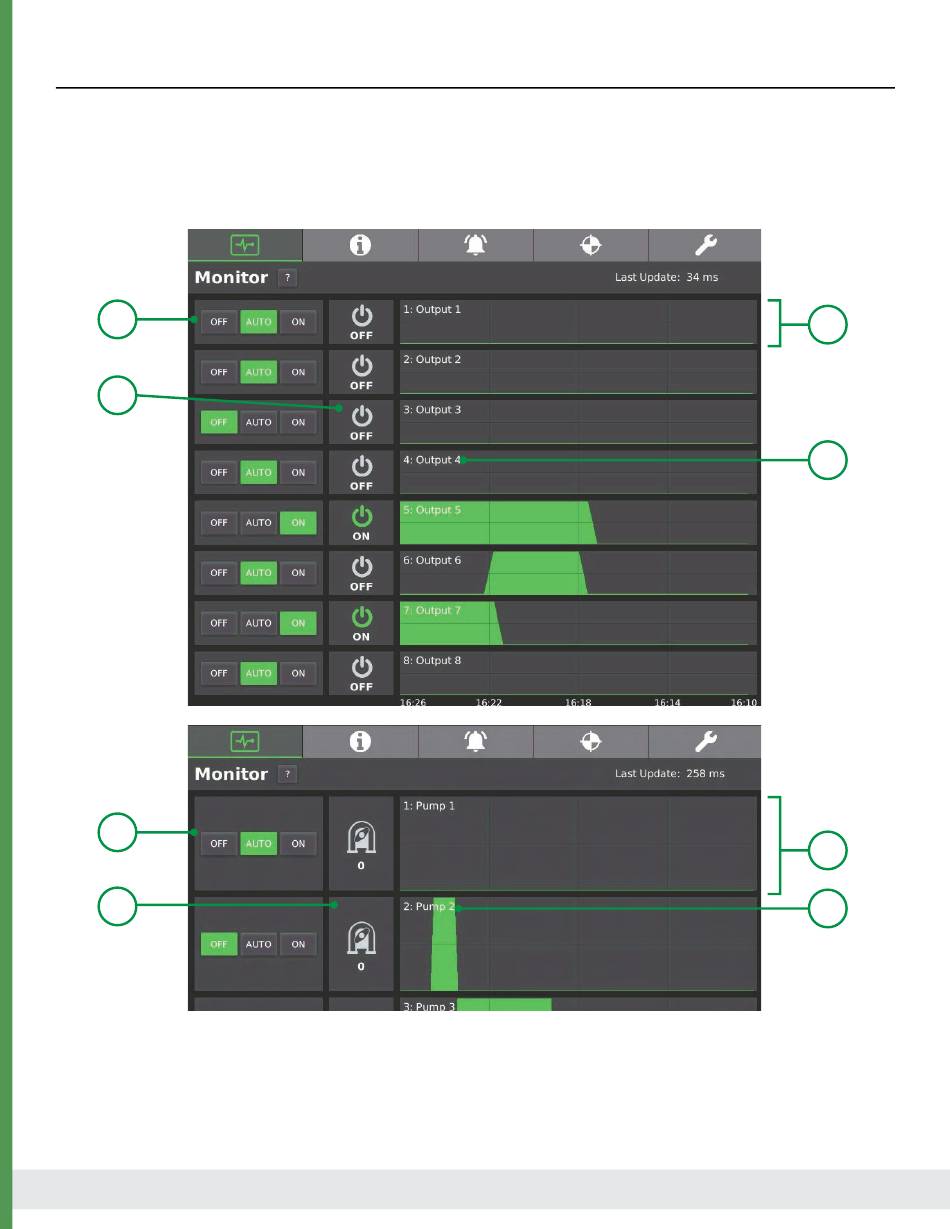

The device monitor page provides the output status' and a graphical history for each output. The time since
the last reading update is shown in the page title bar.
Additional data can be displayed by touching on a graph pane to open the enlarged graph window.
3
4
3
4
1. Graph Pane
Graph history pane showing 1440 points; touch a pane to enlarge the graph.
2. Output Name
Reference name for the output or pump.
3. Manual/Auto
Manually set outputs/pumps Off/On, or set to AUTO for function control.
4. Output Status
Graphic and info displaying the output status.
14
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
1
2
1
2
