Technical data

12 Technical data

12.1 Device data

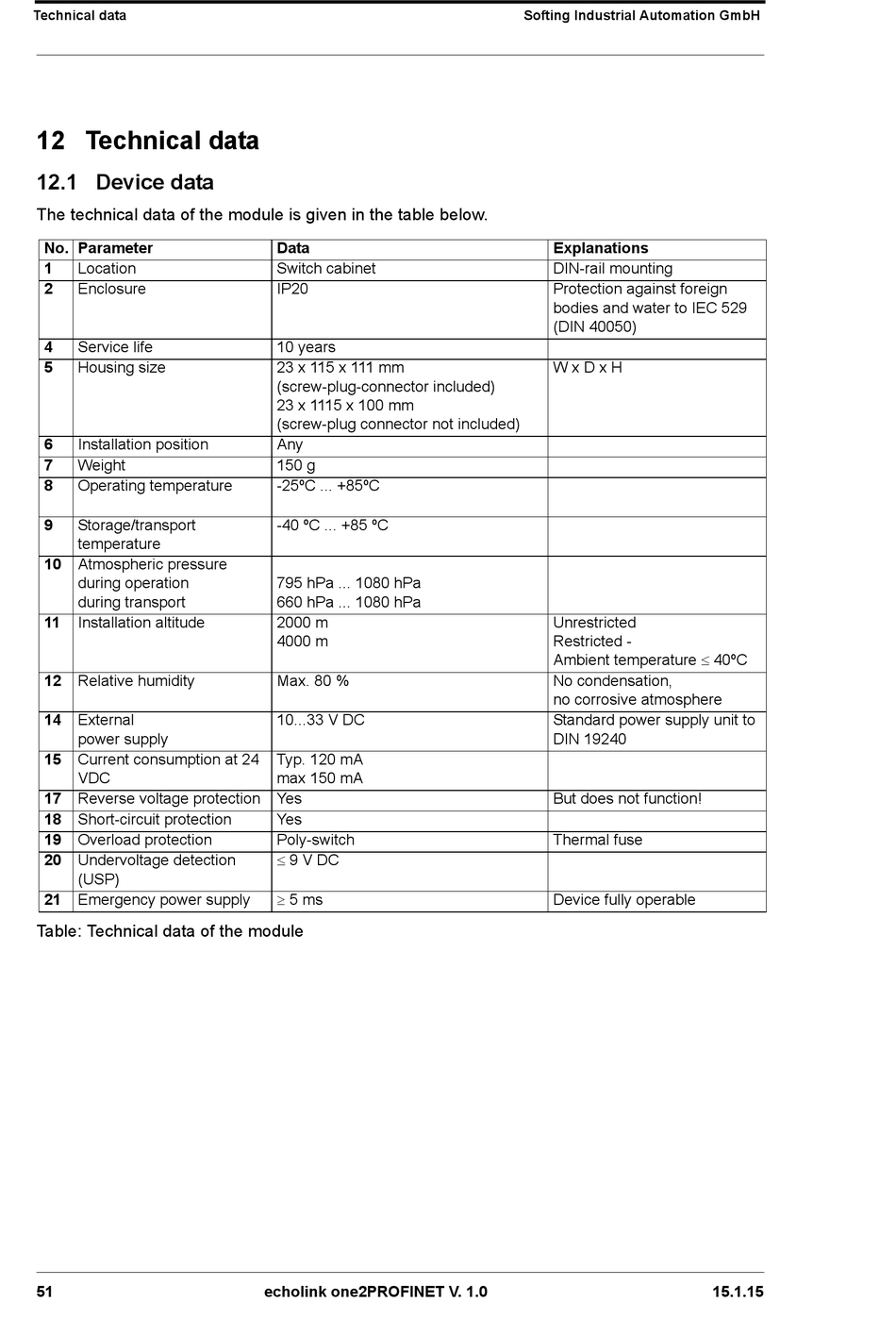

The technical data of the module is given in the table below.
No. Parameter
1 Location
2 Enclosure
4 Service life
5 Housing size
6 Installation position
7 Weight
8 Operating temperature
Storage/transport 
9
temperature
10 Atmospheric pressure
during operation
during transport
11 Installation altitude
12 Relative humidity
14 External
power supply
15 Current consumption at 24
VDC
17 Reverse voltage protection
18 Short-circuit protection
19 Overload protection
20 Undervoltage detection
(USP)
21 Emergency power supply
Table: Technical data of the module
51
Data
Switch cabinet
IP20
10 years
23 x 115 x 111 mm 
(screw-plug-connector included)
23 x 1115 x 100 mm 
(screw-plug connector not included)
Any
150 g
-25ºC ... +85ºC 
-40 ºC ... +85 ºC

795 hPa ... 1080 hPa
660 hPa ... 1080 hPa
2000 m
4000 m
Max. 80 %
10...33 V DC
Typ. 120 mA
max 150 mA
Yes
Yes
Poly-switch
 9 V DC
 5 ms
