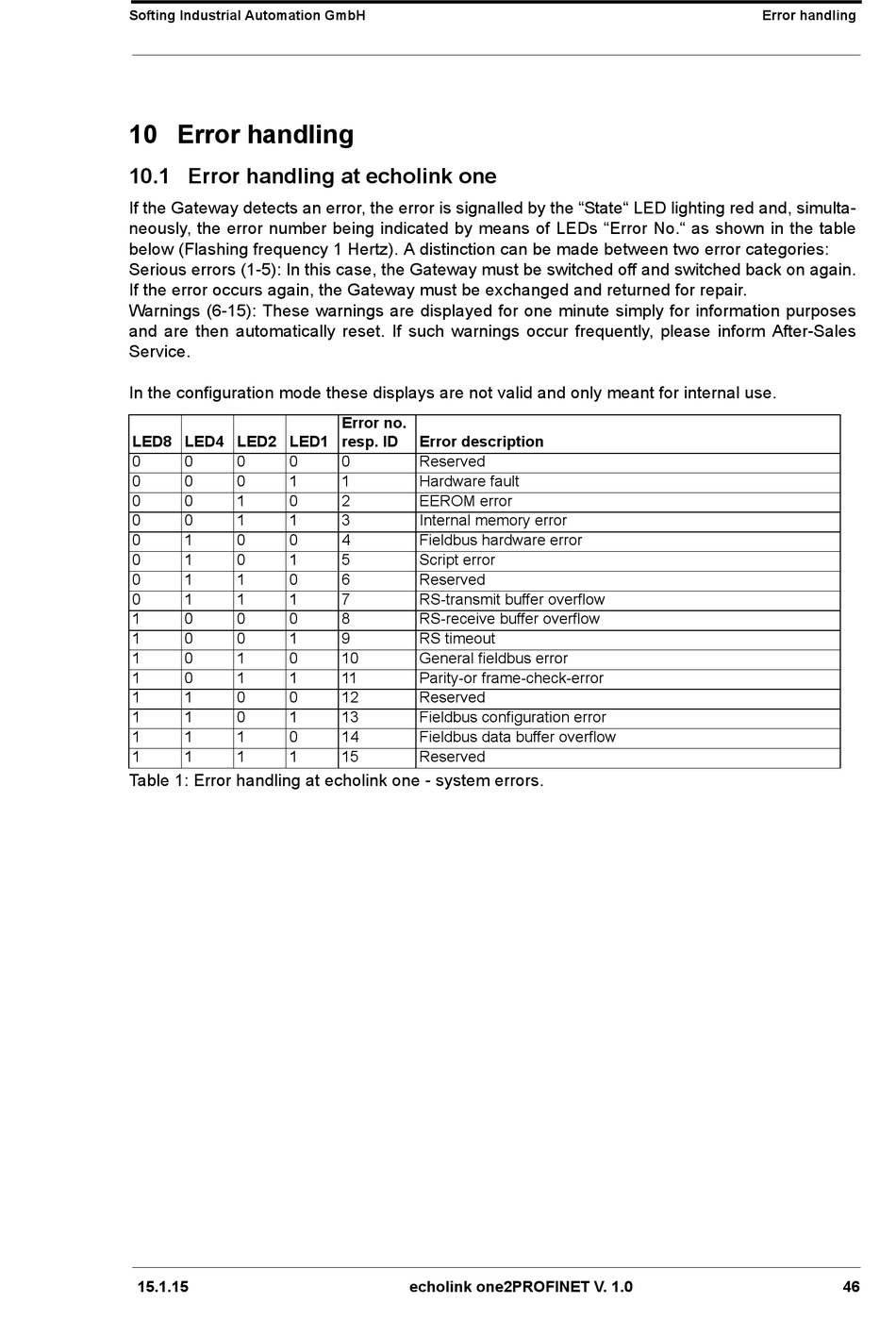

10 Error handling

10.1 Error handling at echolink one

If the Gateway detects an error, the error is signalled by the "State" LED lighting red and, simulta-
neously, the error number being indicated by means of LEDs "Error No." as shown in the table
below (Flashing frequency 1 Hertz). A distinction can be made between two error categories:
Serious errors (1-5): In this case, the Gateway must be switched off and switched back on again.
If the error occurs again, the Gateway must be exchanged and returned for repair.
Warnings (6-15): These warnings are displayed for one minute simply for information purposes
and are then automatically reset. If such warnings occur frequently, please inform After-Sales
Service.
In the configuration mode these displays are not valid and only meant for internal use.
LED8 LED4 LED2 LED1
0 0 0 0
0 0 0 1
0 0 1 0
0 0 1 1
0 1 0 0
0 1 0 1
0 1 1 0
0 1 1 1
1 0 0 0
1 0 0 1
1 0 1 0
1 0 1 1
1 1 0 0
1 1 0 1
1 1 1 0
1 1 1 1
Table 1: Error handling at echolink one - system errors.
15.1.15
Error no.
resp. ID Error description
0 Reserved
1 Hardware fault
2 EEROM error
3 Internal memory error
4 Fieldbus hardware error
5 Script error
6 Reserved
7 RS-transmit buffer overflow
8 RS-receive buffer overflow
9 RS timeout
10 General fieldbus error
11 Parity-or frame-check-error
12 Reserved
13 Fieldbus configuration error
14 Fieldbus data buffer overflow
15 Reserved
