Implemented protocols in echolink one
8.8.3

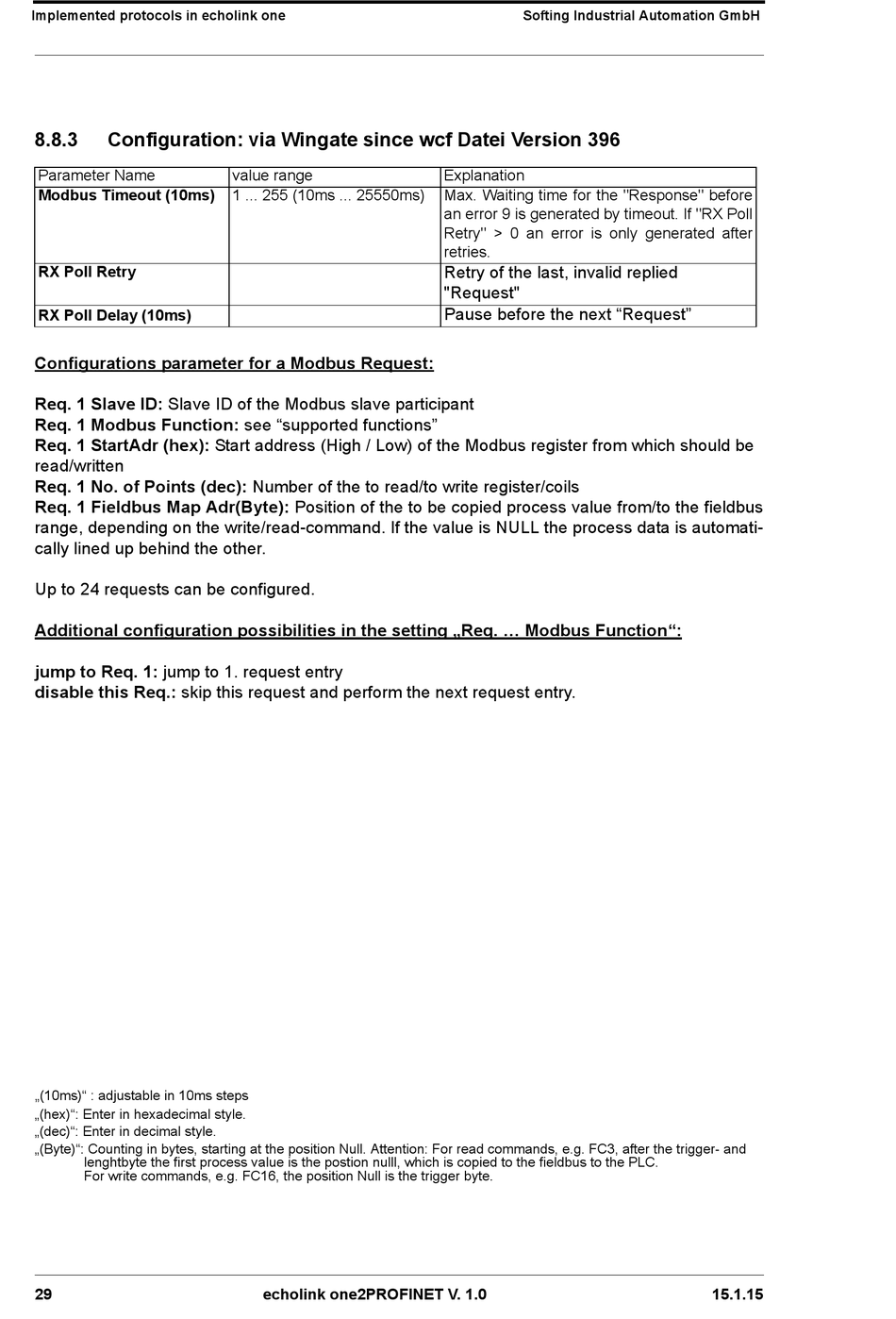

Configuration: via Wingate since wcf Datei Version 396

Parameter Name
Modbus Timeout (10ms)
RX Poll Retry
RX Poll Delay (10ms)
Configurations parameter for a Modbus Request:
Req. 1 Slave ID: Slave ID of the Modbus slave participant
Req. 1 Modbus Function: see "supported functions"
Req. 1 StartAdr (hex): Start address (High / Low) of the Modbus register from which should be
read/written
Req. 1 No. of Points (dec): Number of the to read/to write register/coils
Req. 1 Fieldbus Map Adr(Byte): Position of the to be copied process value from/to the fieldbus
range, depending on the write/read-command. If the value is NULL the process data is automati-
cally lined up behind the other.

Up to 24 requests can be configured.
Additional configuration possibilities in the setting „Req. ... Modbus Function":

jump to Req. 1: jump to 1. request entry
disable this Req.: skip this request and perform the next request entry.





















„(10ms)" : adjustable in 10ms steps
„(hex)": Enter in hexadecimal style.
„(dec)": Enter in decimal style.
„(Byte)": Counting in bytes, starting at the position Null. Attention: For read commands, e.g. FC3, after the trigger- and
lenghtbyte the first process value is the postion nulll, which is copied to the fieldbus to the PLC.
For write commands, e.g. FC16, the position Null is the trigger byte.
29
value range
1 ... 255 (10ms ... 25550ms)
echolink one2PROFINET V. 1.0
Softing Industrial Automation GmbH
Explanation
Max. Waiting time for the "Response" before
an error 9 is generated by timeout. If "RX Poll
Retry" > 0 an error is only generated after
retries.
Retry of the last, invalid replied
"Request"
Pause before the next "Request"
