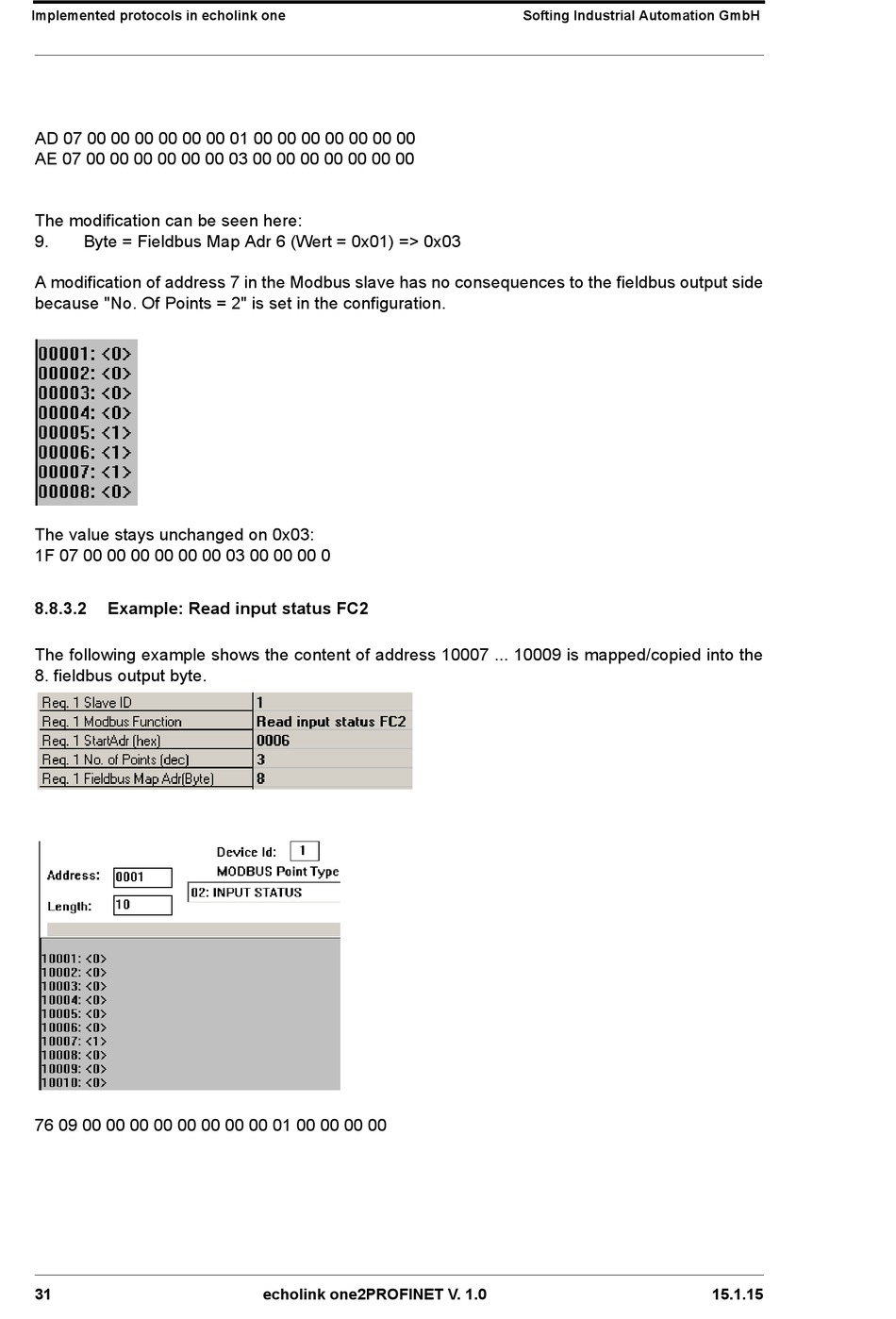

Implemented protocols in echolink one Softing Industrial Automation GmbH
AD 07 00 00 00 00 00 00 01 00 00 00 00 00 00 00
AE 07 00 00 00 00 00 00 03 00 00 00 00 00 00 00
The modification can be seen here:
9. Byte = Fieldbus Map Adr 6 (Wert = 0x01) => 0x03
A modification of address 7 in the Modbus slave has no consequences to the fieldbus output side
because "No. Of Points = 2" is set in the configuration.
The value stays unchanged on 0x03:
1F 07 00 00 00 00 00 00 03 00 00 00 0
8.8.3.2

Example: Read input status FC2


The following example shows the content of address 10007 ... 10009 is mapped/copied into the
8. fieldbus output byte.

76 09 00 00 00 00 00 00 00 00 01 00 00 00 00
31 echolink one2PROFINET V. 1.0 15.1.15
