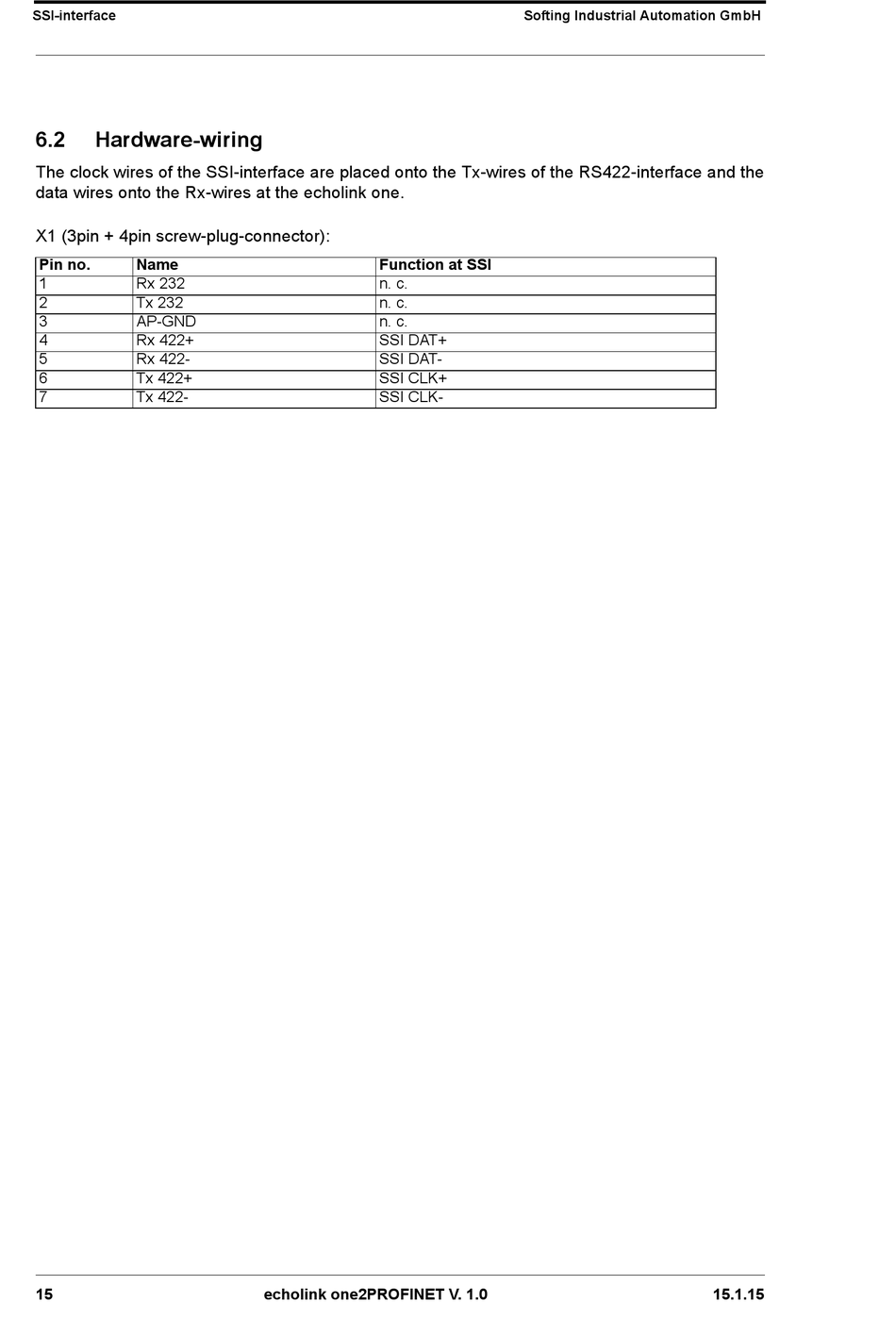

6.2

Hardware-wiring

The clock wires of the SSI-interface are placed onto the Tx-wires of the RS422-interface and the
data wires onto the Rx-wires at the echolink one.

X1 (3pin + 4pin screw-plug-connector):
Pin no. Name
1 Rx 232
2 Tx 232
3 AP-GND
4 Rx 422+
5 Rx 422-
6 Tx 422+
7 Tx 422-
15
Function at SSI
n. c.
n. c.
n. c.
SSI DAT+
SSI DAT-
SSI CLK+
SSI CLK-
