and 5001) are required between the Generic 3 and the FEP with
each HSL used for one FEP/CC connection. On the Generic 2,
another HSL (extension 3000) will connect to the CC. The other
CC is connected directly to the ASDS network via a DSU and will
be administered as an access endpoint on the Generic 3 (extension
4000). Between the Generic 2 and Generic 3, a static trunk group
consisting of a single DS0 is required for the connection. This
trunk group is part of an overall DS1 facility.
Once the proper facilities are in place, a PBX to PBX AC will be
initiated on the Generic 3 between one HSL on the Generic 3 and
the HSL on the Generic 2. For the other FEP/CC connection, a
PBX to an access endpoint AC must be created between the other
Generic 3 HSL and the DSU. Once these connections have been
established, the FEP will be able to communicate with both CCs.
Cluster
Controller
Robbed-bit
DS1
ASDS
DCP
Trunk
Group 10
DCP
DEFINITY G3

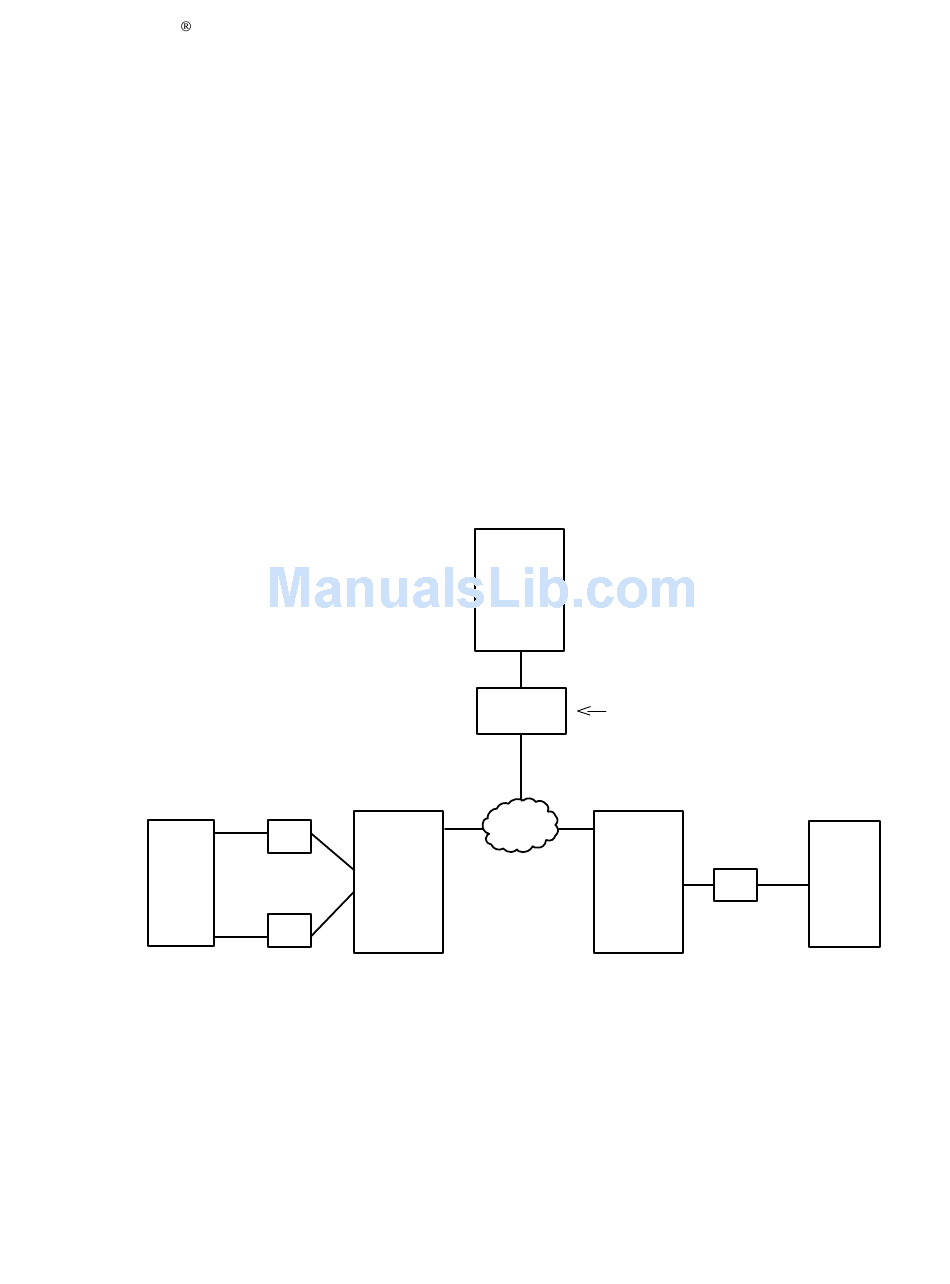

FIGURE D-5

FEP/CC Configuration

Administration
The following section describes the HSL options as well as the
administration of the DEFINITY Generics 2 and 3 needed to
implement this application. The explanation of Generic 2 and 3
administration will be done in the following order:
