Assembly
– Moisture
– Aggressive atmospheres
– Store and transport the product in its original packaging or installed in the control cabinet. The
original packaging offers sufficient protection from typical stresses.
6
Assembly
Dimensions

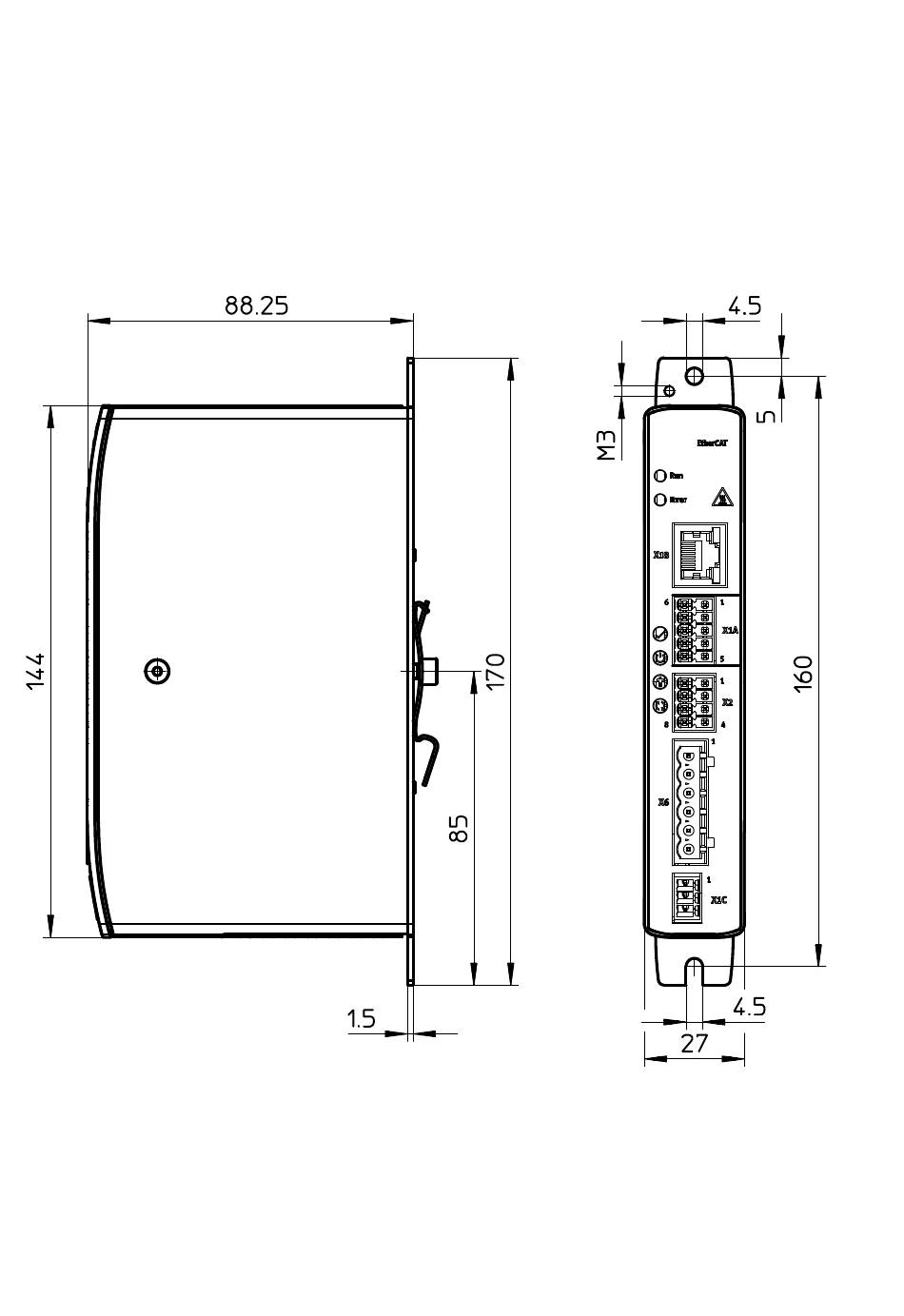

Fig. 7: Dimensions [mm]
6.1
Mounting clearances
The series CMMT-ST servo drives can be connected in series.
With effective output currents > 4.5 A mounting clearances may be required on both sides to allow
dissipation of the heat generated during operation by allowing sufficient air flow.
16
Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b
