Festo CMMT-ST-C8-1C Series Manual

Festo CMMT-ST-C8-1C Series Manual

Servo drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

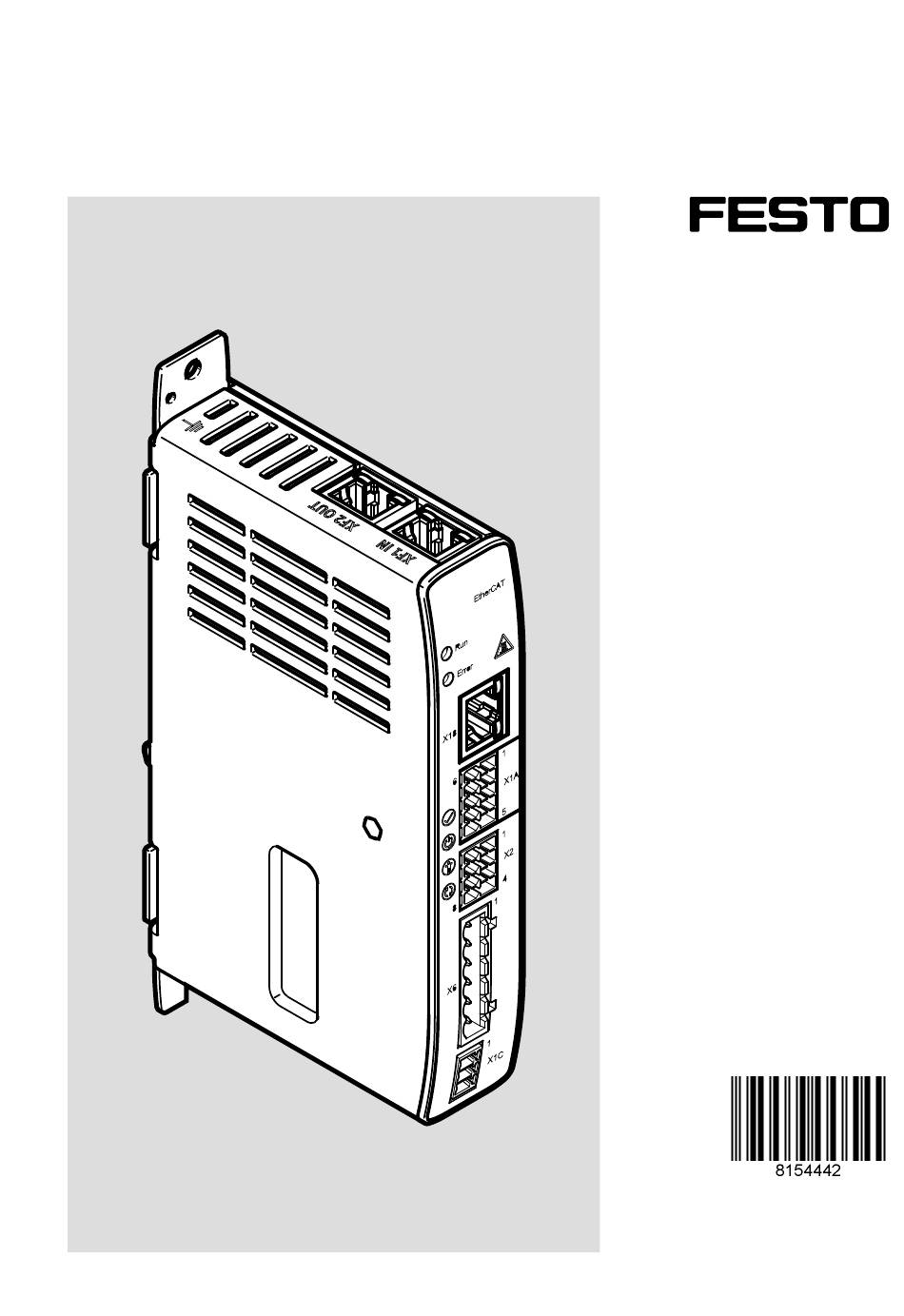

CMMT-ST-C8-1C-...-S0
Servo drive
Manual | Assembly,
Installation
8154442
2021-04b
[8154444]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMMT-ST-C8-1C Series and is the answer not in the manual?

Questions and answers

Related Manuals for Festo CMMT-ST-C8-1C Series

Summary of Contents for Festo CMMT-ST-C8-1C Series

  • Page 1 CMMT-ST-C8-1C-...-S0 Servo drive Manual | Assembly, Installation 8154442 2021-04b [8154444]...
  • Page 2 Translation of the original instructions AKULON , BISS , CiA , EtherCAT , EtherNet/IP , PI PROFIBUS PROFINET , PHOENIX CONTACT ® ® ® ® ® ® ® registered trademarks of the respective trademark owners in certain countries.

  • Page 3: Table Of Contents

    Device and interface status, EtherCAT ....... . 40 Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 4 10.4 Technical data UL/CSA certification ......... . . 56 Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 5: About This Document

    The document is targeted towards individuals who perform assembly, installation and service work on the product. Applicable documents All available documents for the product è www.festo.com/sp. The user documentation for the product also includes the following documents: Identifier Table of contents...

  • Page 6: Product Labelling

    R-R-FTO-KC-2018-1092 KC mark certificate (test mark for Korea) 01/205/5696.00/19 TÜV certificate number Data matrix code, 123456789AB Product key as a data matrix code and an 11- character alphanumeric code Festo SE & Co. KG Manufacturer Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 7: Specified Standards

    – Assembly and installation should only be carried out by qualified personnel. – Only use the product if it is in perfect technical condition. – Only use the product in original status without unauthorised modifications. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 8: Intended Use

    The device is intended for use in an industrial environment. The device is intended to be installed in a control cabinet. The minimum degree of protection required for the control cabinet is IP54. 2.2.2 Permissible components Supported motors: – Stepper motors – EC motors Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 9: Training Of Qualified Personnel

    UL/CSA certification Technical data and environmental conditions may be subject to change in order to comply with Underwriters Laboratories Inc. (UL) certification requirements for the USA and Canada. Deviating values è 10.4 Technical data UL/CSA certification. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 10: Additional Information

    The servo drive CMMT-ST is a 1-axis servo drive for controlling a stepper motor or an EC motor with connected mechanisms, e.g. a Festo axis. The device is controlled by a higher-level controller using the bus protocol EtherCAT, EtherNet/IP or PROFINET, depending on the product version, via a real-time Ethernet interface.

  • Page 11: Product Design

    The ventilation slots on the bottom, top and left side of the device ensure sufficient air flow for cooling the device. The metal housing parts form the cooling elements. Heat is also dissipated to the surroundings via the cooling elements. The device does not have a fan. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 12 Product overview Fig. 3: Servo drive CMMT-ST 1 Top 4 Cooling element (metal housing parts, top, bottom left side and back of housing) 2 Front side 5 Ventilation slots 3 Bottom Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 13 5 Hood (right side of housing) 3 T-rail clamp There is a hole at the back on top and a slot for wall mounting at the bottom. The t-rail clamp is mounted in the centre of the back. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 14 Product overview Fig. 5: Bottom 1 Ventilation slots 2 Bottom of the CMMT-ST Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 15: Overview Of Connection Technology

    10 [X9] Load and logic voltage (underneath) 5 [X18] Standard Ethernet 6 [X1A] I/O interface Transport and storage – Protect the product during transport and storage from excessive stress factors. Excessive stress factors include: – Mechanical stresses – Impermissible temperatures Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 16: Assembly

    The series CMMT-ST servo drives can be connected in series. With effective output currents > 4.5 A mounting clearances may be required on both sides to allow dissipation of the heat generated during operation by allowing sufficient air flow. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 17 The necessary clearances are determined by the temperature in the control cabinet and the required effective current. The Festo PositioningDrives software can be used to calculate the effective current. If the clearances are insufficient, the device will be switched off by the I²t or temperature monitoring function of the power stage.

  • Page 18: Installation

    The servo drive is intended to be installed in a control cabinet with at least IP54 degree of protection. The servo drive can be screwed onto the backwall of the control cabinet or mounted on an H-rail. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 19 1. Attach the device by hooking the top of the H-rail clamp onto the H-rail from above. 2. Press the lower part of the device onto the H-rail until the H-rail clamp clicks into place on the H-rail. Fig. 9: Mounting on an H-rail Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 20: Installation

    RTE (port 2) 1) Adhere to the maximum permissible cable length for the encoder used. 2) Shielded cables from Festo can be used. The shield can only be connected on the motor side. Tab. 10: Cable lengths and cable shield...
  • Page 21 – Wherever possible, avoid crossing signal cables with power cables or running them at only a 90° angle in relation to one another. The encoder cable is e.g. a signal line and the motor cable is a power cable. These lines must therefore be installed separately. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 22: Connection Example

    Fig. 10: Connection example BiSS-C or incremental encoder PELV fixed power supply for load voltage supply (24 V … 48 V) EC motor or stepper motor PELV fixed power supply for logic voltage (24 V) Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 23: Interfaces

    (delivers cur- rent) Tab. 11: PNP logic Signal Level Input Outlet logic 0 24 V internal via pull-up resistor internal via pull-up resistor logic 1 – via low-side driver (consumes cur- rent) Tab. 12: NPN logic Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 24 Installation Connection examples Fig. 11: Connection example, PNP logic Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 25 Installation Fig. 12: Connection example, NPN logic Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 26 NEKM-C-22 (enclosed with the product) Signal contacts 10 (10-pin, 2-row) Nominal current Pitch 3.5 mm Strip length 10 mm UL Use Group Tab. 14: Mating plug requirements Requirements for the connecting cable Shielding not required Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 27: X1C], Reference Switch/Limit Switch

    Nominal current Pitch 3.5 mm Strip length 9 mm UL Use Group Tab. 17: Mating plug requirements Cable requirements Shielding not required Min. conductor cross section incl. wire end sleeve with plastic 0.14 mm sleeve Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 28: [X2], Encoder Interface

    +5 V 5 V encoder supply #A_IN A signal input, inverse #B_IN B signal input, inverse #IDX_IN Index signal input, inverse Reference potential of encoder supply Tab. 19: Incremental encoders with AB signals (quadrature encoder) Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 29 25 m 1) Festo screened cables can be used. The shield can only be connected on the motor side. 2) The conductor cross section used must be suitable for the expected currents. If flexible flying leads are used with plastic wire end sleeves, minimum cross sections of 0.14 mm²...

  • Page 30: [X18], Standard Ethernet

    The housing is used as a support for the cable shield and is sing connected to the FE. Tab. 23: Standard Ethernet Mating plug requirements Design VS-08-RJ45-5-Q/IP20 from Phoenix Contact or compatible Number of pins Shielded Degree of protection IP20 Tab. 24: Mating plug requirements Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 31: Xf1 In] And [Xf2 Out], Real-Time Ethernet (Rte) Port 1 And 2

    The real-time Ethernet interface [XF1 IN] and [XF2 OUT] is located on the top of the device. The inter- face permits RTE communication. The following protocols are supported, depending on the product version: Product variant Supported protocol CMMT-ST-...-EC EtherCAT CMMT-ST-...-EP EtherNet/IP CMMT-ST-...-PN PROFINET Tab. 28: Supported protocol Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 32: Motor Connection

    • Connect the cable shield to the plug housings on both sides. Motor connection The connection [X6] is located on the front of the device. The following functions are carried out via the connection [X6]: Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 33 Br-/0 V Brake 0 V Tab. 33: Motor phase connection for connecting an EC motor Mating plug requirements Identifier Based on Phoenix Contact FKC 2.5/6-ST-5.08 included in assortment of plugs NEKM-C-22 (enclosed with the product) Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 34: Load And Logic Power Supply

    Max. length 25 m 1) Festo screened cables can be used. The shield can only be connected on the motor side. 2) The conductor cross section used must be suitable for the expected currents. Tab. 35: Requirements for the connecting cable Festo offers prefabricated motor cables as accessories è...

  • Page 35: Cross-Wiring Of Several Servo Drives

    30 m 1) The conductor cross section used must be suitable for the expected currents. Tab. 38: Requirements for the connecting cable Cross-wiring of several servo drives Cross-wiring enables a device compound to be created. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 36: Malfunctions

    The device has LEDs for displaying status information on the top and in the RJ45 bushings [XF1 IN], [XF2 OUT] and [X18]. The following image shows an example of the LEDs on the front of product variant CMMT-ST-...-EC. The functions of the RTE network status LEDs 2 differ by product version. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 37: Device Status Displays

    After the device is switched on, it runs through an initialisation phase. When the initialisation phase is complete, the device performs an LED test. During the LED test, the 4 device status LEDs are activated simultaneously. The 4 device status LEDs light up yellow for approx. 300 ms. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 38 – Plausibility check of STO channel switch-off Malfunctions are externally reported by the functional part, including via the additional communica- tion interfaces (bus, commissioning software). Meaning Flashe Error in the safety part, or a safety condition has been violated. s red Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 39 If an error occurs during a firmware update, the status LED flashes red at one-second intervals. The frequency of flashing corresponds to the error number specified in the following table. After flashing, there is a pause of 3 s. Then the procedure repeats. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 40: Interface Status [X18]

    Together with the 2 LEDs on the top, the Run LED and the Error LED on the front display the bus/ network status. EtherCAT, Run LED; operating status Meaning Remedy The device is in the Init status (initialisa- – tion). Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 41 2) Double flash: double short flash (2x flash, pause, 2x flash, etc.) Tab. 49: Error LED EtherCAT, LINK/ACTIVITY LED; connection status at XF1 IN and XF2 OUT Meaning Remedy No network connection Check network connection. Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 42: Device And Interface Status, Profinet

    PROFINET, LEDs at XF1 IN and XF2 OUT; connection status, data traffic Meaning of the green LED Remedy No network connection Check network connection. Lights Network connection is OK (link). – green Tab. 52: Green LED at XF1 IN and XF2 OUT Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 43: Device And Interface Status, Ethernet/Ip

    Rectifiable error, possibly a configura- Check configuration. s red tion error Lights Error cannot be rectified Contact Festo Service è www.festo.com. up red Tab. 54: MS LED EtherNet/IP, NS LED; network status Meaning Remedy The device is switched off or has no IP Switch on device or check IP address.
  • Page 44 Tab. 56: Green LED at XF1 IN and XF2 OUT Meaning of the yellow LED Remedy No data traffic – Flicker Data traffic activity. – yellow Tab. 57: Yellow LED at XF1 IN and XF2 OUT Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 45: Disassembly

    Loosen retaining screws (2x) and remove the device from the mounting surface. Disassembly for H-rail mounting • Carefully tilt the servo drive upwards and remove it from the H-rail. Fig. 14: Disassembly from the H-rail Technical data Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 46: Technical Data, General

    RT Ethernet protocol CMMT-ST-...-EC: EtherCAT CMMT-ST-...-EP: EtherNet/IP CMMT-ST-...-PN: PROFINET Tab. 59: General technical data Ambient conditions, transport in original packaging or in control cabinet Transport temperature [°C] −25 … +70 Relative humidity 5 … 95 (non-condensing) Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 47 III (safety extra-low voltage) Overvoltage category Contamination level Vibration resistance in accord- EN 61800-5-1 and EN 61800-2 ance with Shock resistance in accordance EN 61800-2 with EMC in accordance with EN 61800-5-2 Tab. 62: Ambient conditions, operation Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 48: Technical Data, Electrical

    Tab. 65: Load power supply Electrical data, logic power supply [X9], pin 3 Logic voltage range [V DC] 24 ± 15 % Nominal voltage [V DC] Current consumption (without holding brake) Current consumption (with holding brake) Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 49: Power Specifications, Motor Connection [X6]

    [X6] Protective functions Short-circuit and overload-protected Tab. 69: Output of holding brake at [X6] 10.2.3 Encoder interfaces [X2] Digital incremental encoder at [X2] Parameterisable no. of 1 … 262144 periods/revolution (18 bit) encoder pulses Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 50 - default: 16 bit Support: mechanical multiturn encoder Support: battery-buf- fered multiturn encoder Support: encoder parameter memory Encoder signal moni- toring Protective function No overload protection Tab. 71: Encoder with BiSS-C protocol Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 51: Digital Inputs And Outputs [X1A]

    2) High test pulses must never occur simultaneously at inputs #STO-A and #STO-B, but only with a time offset. Tab. 72: Control inputs #STO-A and #STO-B at [X1A] Diagnostic contact STA at [X1A] Design Potential-free contact Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 52 L min Max. input current [mA] –4 ) with high level H max Min. input current [mA] –10 ) with high level H min Max. input current [mA] 3.43 ) with low level L max Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 53 Supply of potential-free outputs of the PLC, e.g. a potential-free relay contact for the CTRL-EN input Max. output current [mA] – Short circuit to 0 V Protective function – Feedback-proof Tab. 76: Voltage for supplying external components at [X1A] Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 54: Reference Switch [X1C]

    Supply of axis peripheral modules, e. g. reference or limit switch Max. output current [mA] – Short circuit to 0 V Protective function – Feedback-proof Tab. 78: Voltage for Supply of External Components at [X1C] Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 55: Standard Ethernet [X18], Parameterisation Interface

    Bus protocol PROFINET: CMMT-ST-...-PN – PROFINET RT Protocol – PROFINET IRT – PROFIdrive Drive profile 1) Restriction: the interface is galvanically isolated and intended for use with limited cable lengths. Tab. 80: Real-time Ethernet [XF1 IN], [XF2 OUT] Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...

  • Page 56: Characteristic Curves

    In combination with the UL inspection mark on the product, the information in this section must also be observed in order to comply with the certification conditions of Underwriters Laboratories Inc. (UL) for USA and Canada. UL/CSA certification information Product category code NMMS / NMMS7 (Power Conversion Equipment) File number E331130_Vol-3_Sec-1 Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 57 UL Listed JDDZ class K5 Max. permissible rated current Min. short circuit cur- [kA] rent rating SCCR of mains fuse Min. rated voltage [V DC] Tab. 83: Fuse requirements for load voltage supply Example: Littelfuse NLN 30, Bussmann NON-30 Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b...
  • Page 58 Copyright: Festo SE & Co. KG 73734 Esslingen Ruiter Straße 82 Deutschland Phone: +49 711 347-0 Internet: © 2021 all rights reserved to Festo SE & Co. KG www.festo.com...

This manual is also suitable for:

Cmmt-st-c8-1c-ec-s0Cmmt-st-c8-1c-ec-pnCmmt-st-c8-1c-ec-epCmmt-st-c8-1c-ec-ec
