Product overview
5
4
3

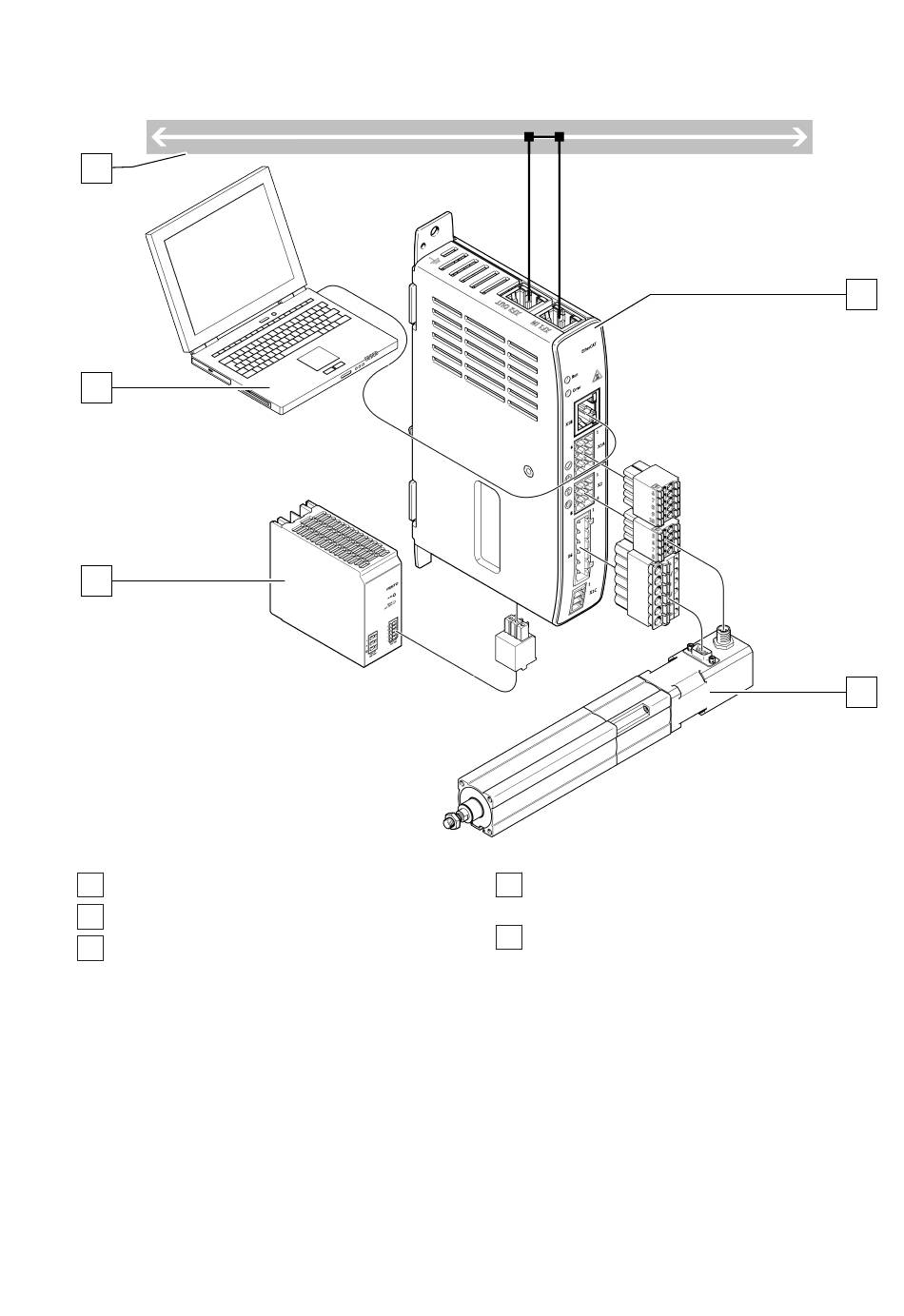

Fig. 2: System structure (example)
1 Servo drive CMMT-ST
2 Stepper motor or EC motor with drive
3 Fixed power supply (or supplies) for logic
and load voltage (PELV)
4.2.1

Product design

The device has a compact design. The connections are on the front, top and bottom of the device as
pin header, socket strip or RJ45 bushing.
The ventilation slots on the bottom, top and left side of the device ensure sufficient air flow for cooling
the device.
The metal housing parts form the cooling elements. Heat is also dissipated to the surroundings via the
cooling elements. The device does not have a fan.
Festo — CMMT-ST-C8-1C-...-S0 — 2021-04b
4 PC with Ethernet connection for parameteri-
sation
5 Bus/network
