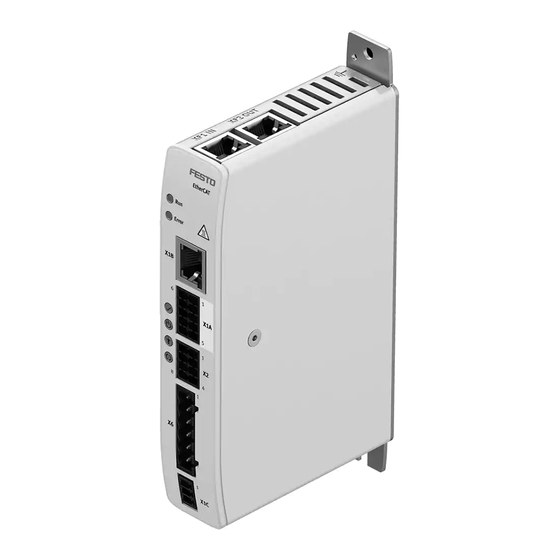

CMMT-ST-C8-1C-...-S0
Servo drive
Instructions | Installation, Safety sub­function
8097145
2019­01
[8097147]

Translation of the original instructions

BISS
®
, EtherCAT
®
, EtherNet/IP
®
, PI PROFIBUS PROFINET
are registered trademarks of the respective trademark owners in certain coun­
tries.
1
About this document
1.1

Target group

The document is targeted towards individuals who mount and operate the
product. It is additionally targeted towards individuals who are entrusted with the
planning and application of the product in a safety­related system (safety manual
in accordance with EN 61508).
1.2

Applicable documents

All available documents for the product è www.festo.com/pk.
The user documentation for the product also includes the following documents:
Designation
Contents
Product instruction manual
Installation, safety sub­function
Product descriptions
Detailed description of assembly, installation
Detailed description of safety sub­function
Description/online help plug­in
Plug­in:
Functions and operation of the software
Initial commissioning assistant
Firmware functions:
Configuration and parameterisation
Operating modes and operational functions
Diagnostics and optimisation
Bus protocol/control:
Device profile
Controller and parameterisation
Festo Automation Suite online
Function of the Festo Automation Suite
help
Management and integration of device­specific plug­ins
Tab. 1 User documentation for the product
1.3

Product variants

The product is available in 3 fieldbus variants. The following order code indicates
the equipment features of the product variant.
Feature
Order code
Servo drive
CMMT­
Motor type
ST­
Nominal current
C8­
Nominal input voltage
1C­
Bus protocol/activation
EC­
EP­
PN­
Safety function
S0
Tab. 2 Product variants CMMT­ST­... (e.g. CMMT­ST­C8­1C­EC­S0)
This documentation refers to the following version:
Servo drive CMMT­ST­...­S0, revision 1 and higher, see product labelling.
This is the first available revision.
For later revisions of the product, check whether updated documentation is
available è www.festo.com/pk.
1.4
Product labelling
Observe the specifications on the product.
The product labelling is located on the right side of the device. The product
labelling enables identification of the product and shows the following informa­
tion:
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347­0
www.festo.com
8097145
®
, PHOENIX CONTACT
®
Type
Servo drive, series T
Stepper motor or EC motor
8 A
24 ... 48 V DC
EtherCAT
EtherNet/IP
PROFINET
Basic safety
Product labelling (example)
CMMT­ST­C8­1C­EC­S0
8084005  MM­YYYY:XX   Rev 01
Main Input: 24 ... 48 V DC  8 A
Motor Out: 0 ... Input V AC  8 A
300 W
RMS
T
: max. 50 °C
AMB
IP20
MAC­ID: XF1 IN XX­XX­XX­XX­XX­XX
R­R­FTO­KC­2018­1092
01/205/5696.00/19
Data matrix code, 123456789AB
Festo AG & Co. KG
DE­73734 Esslingen
Made in Germany
Tab. 3 Product labelling (example)
Warning symbol on the front of the product
The following warning symbol can be seen on the front of the product:
Fig. 1 Warning symbol on the front of the product (example CMMT­ST­...EC)
General meaning
Meaning for the CMMT-ST
Attention! Hot surface
Metallic housing parts of the device can reach high temperatures
during operation.
Tab. 4 Meaning of the warning symbol
1.5
Specified standards
Version
EN ISO 13849­1:2015
EN ISO 14118:2018­02
EN 60204­1:2018­09
EN 60715:2017­11
EN 61508 Parts 1­7:2010
Tab. 5 Standards specified in the document
2
Safety
2.1
Safety instructions
General safety instructions
Assembly and installation should only be carried out by qualified personnel.
Only use the product if it is in perfect technical condition.
Only use the product in original status without unauthorised modifications.
Do not carry out repairs on the product. If defective, replace the product
immediately.
Observe labelling on the product.
Take into consideration the ambient conditions at the location of use.
The safety function might fail, and malfunctions might occur if you do not
comply with the parameters required for the ambient and connection condi­
tions.
Never remove or insert a plug when the power is switched on.
Meaning
Order code
Part number, serial number (manufacturing
month, manufacturing year, plant number), revi­
sion
Technical data for the power supply (PELV fixed
power supply)
Technical data for the motor output (output
voltage, nominal current, nominal output power)
Ambient temperature (T
)
AMB
Degree of protection
First MAC address of the device for RTE commu­
nication XF1 IN, also represented as a barcode
KC mark certificate (test mark for Korea)
TÜV certificate number
Product key as a data matrix code and an
11­character alphanumeric code
Manufacturer
Manufacturer's address
Manufactured in Germany
1 Attention! Hot surface
EN 61800­2:2015
EN 61800­5­1:2007+A1:2017
EN 61800­5­2:2017
EN 62061:2005+AC:2010+A1:2013+A2:2015
