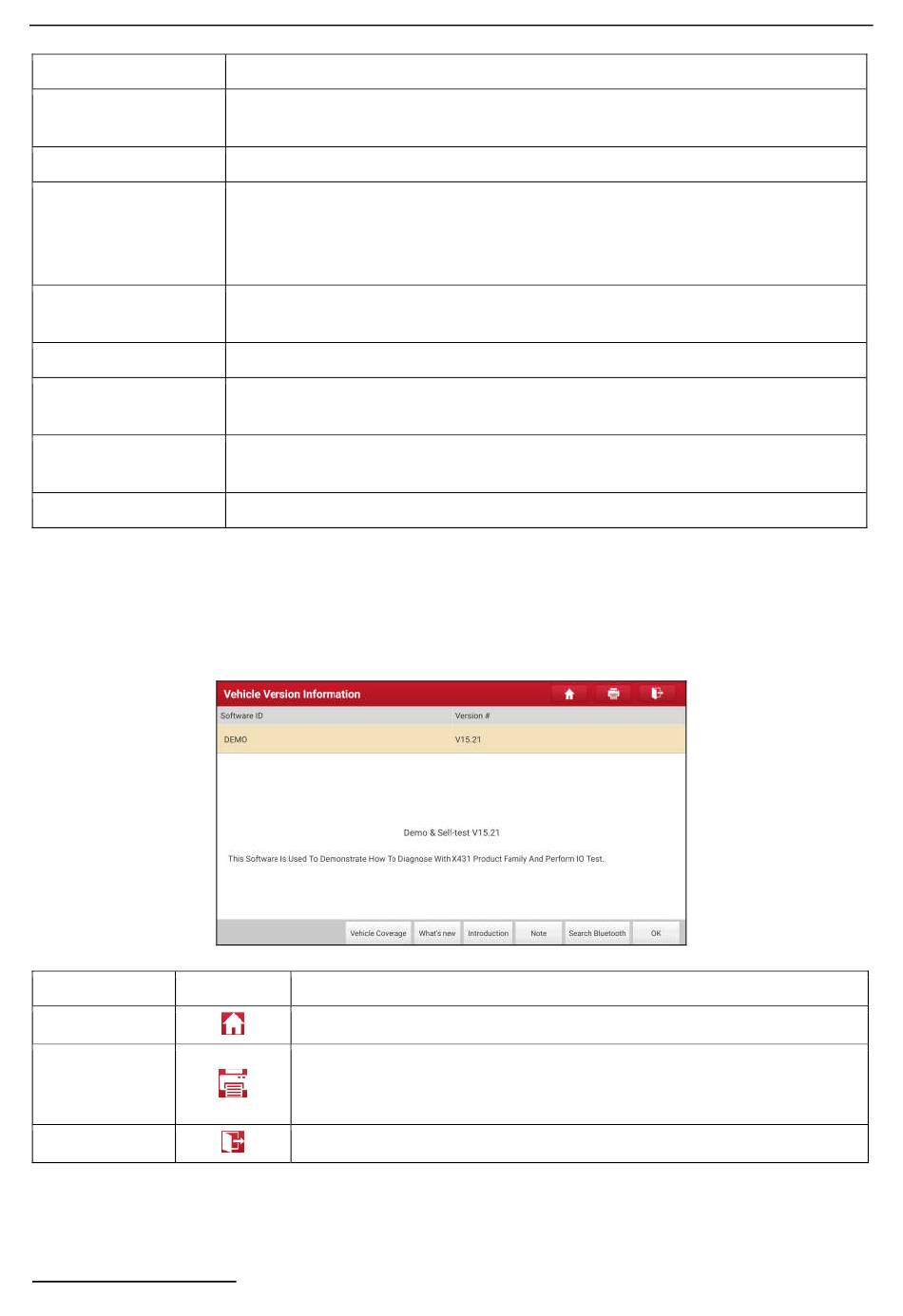

4.2.3 Diagnostics toolbar

The diagnostics toolbar contains a number of buttons that allow you to print the displayed data or make other
controls. It is displayed on the upper right corner of the screen and goes through the whole diagnostic session. The
table below provides a brief description for the operations of the diagnostics toolbar buttons:
Name
Home
Print
Exit

4.3 Connections

4.3.1 Preparation

Normal testing conditions
Testing can be resumed from the previous operation without starting from scratch.
This helps repair shops or mechanics to diagnose a remote vehicle, and launch instant
messages, allowing for improved efficiency and faster repairs.
To feed back the recent 20 diagnostic logs to us for issue analysis.
This function enables users to perform ADAS (Advanced Driver Assistance System)
calibration operations. The ADAS calibration software is disabled by default. Before
using this function, users must activate the ADAS function using the ADAS Activation
Card.
An online diagnostic software store. This module enables you to subscribe some extra
software or service functions that are not integrated in the tool online.
To view all the vehicle models that the tool covers.
Abundant maintenance data are available, which helps repair professionals diagnose
and repair vehicles efficiently, accurately and profitably.
To manage VCI, my reports, change password, configure Wi-Fi printer, system
settings and logout etc.
Includes Videoscope, product manual, FAQ and some system Apps etc.
Button
Returns to Job menu screen.
Touch to print the selected screenshots out via external printer. The printer
needs to be configured separately. For details on printer setting, refer to
Chapter 10.12.3.
To exit the diagnostic application.
Description
