LAUNCH X-431 PRO5 User Manual

10 User Info

This function allows users to manage personal information and VCI.

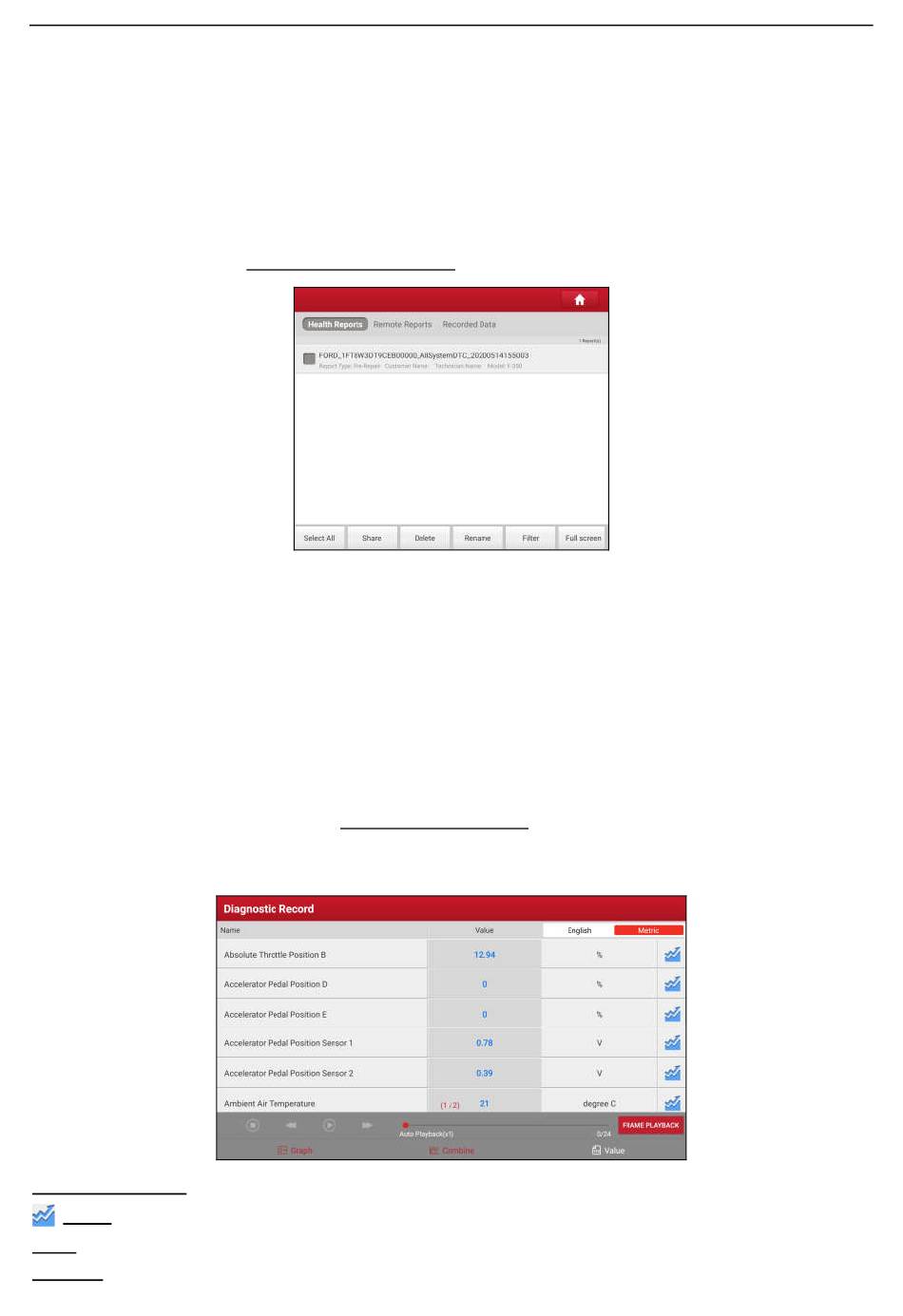

10.1 My Report
This option is used to view, delete or share the saved reports.
Tap My Report, there are total 3 options available.
1). If the DTC result is saved on Read Trouble Code page, the files will be listed under Health Reports tab.
All diagnostic reports are sorted by Date and Make. Tap the desired type to re-arrange and filter it.
• To select certain report, check the box before the report. To select all reports, tap Select All. To deselect all, tap
Unselect.
• To share the report with others, select the desired one and then tap Share.
• Select the desired report and then tap Delete to delete it.
• To change the filename of report, tap Rename.
• To quickly locate the desired report, tap Filter.
• To exit the full screen, tap Exit full screen.
2). Remote Reports lists all diagnostic reports generated in process of remote diagnosis.
3). If user records the running parameters while reading data stream, it will be saved as .x431 file and appear under
Recorded Data tab.
Tap the desired one to enter. Select the desired data stream items and tap OK to jump to the playback page:
On-screen Buttons:
Graph – displays the parameters in waveform graphs.
Value – this is the default mode which displays the parameters in texts and shows in list format.
Combine – this option is mostly used in graph merge status for data comparison. In this case, different items are
