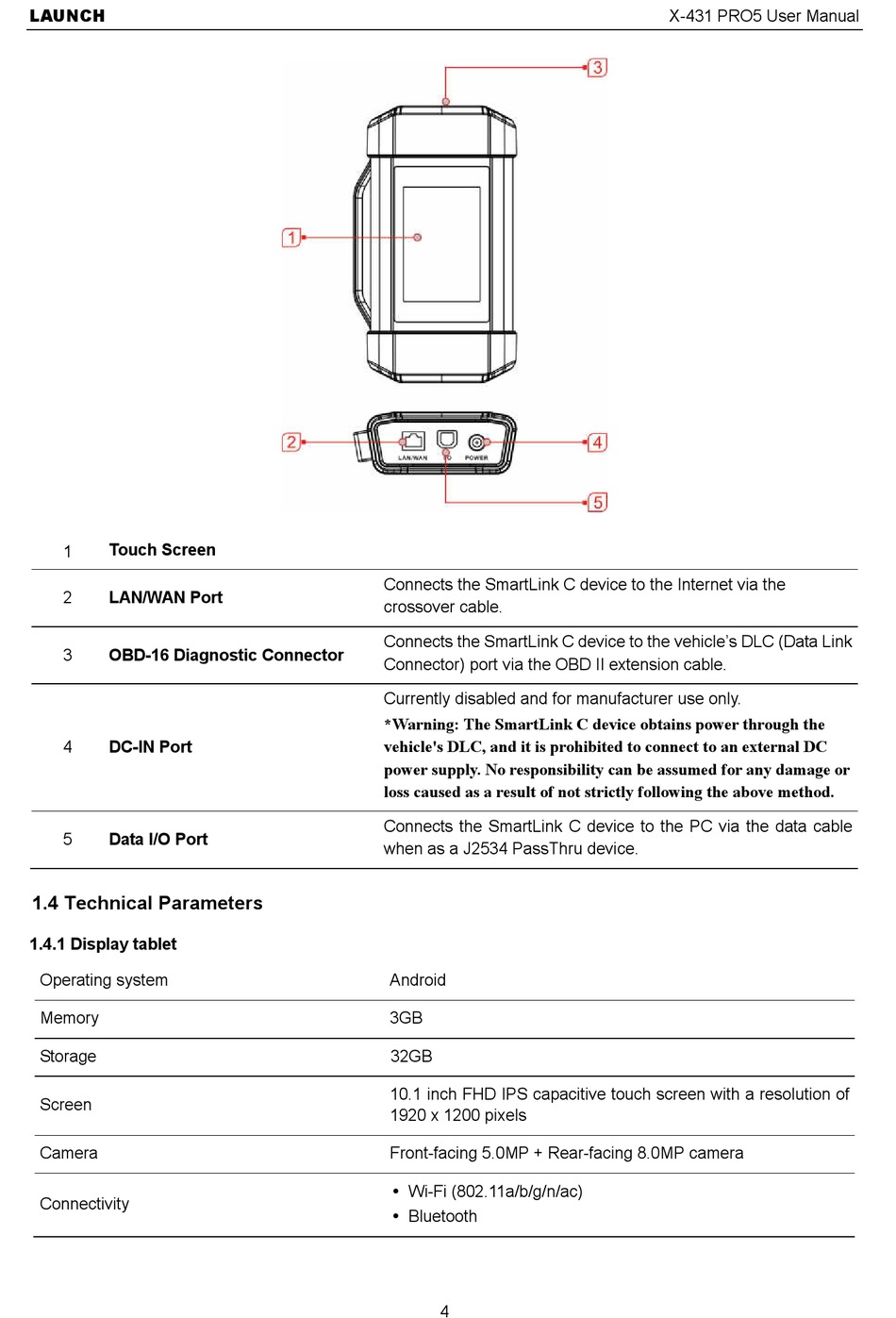

LAUNCH
Touch Screen
1
2
LAN/WAN Port
3
OBD-16 Diagnostic Connector
4
DC-IN Port
5
Data I/O Port
1.4 Technical Parameters
1.4.1 Display tablet
Operating system
Memory
Storage
Screen
Camera
Connectivity
Connects the SmartLink C device to the Internet via the
crossover cable.
Connects the SmartLink C device to the vehicle's DLC (Data Link
Connector) port via the OBD II extension cable.
Currently disabled and for manufacturer use only.
*Warning: The SmartLink C device obtains power through the
vehicle's DLC, and it is prohibited to connect to an external DC
power supply. No responsibility can be assumed for any damage or
loss caused as a result of not strictly following the above method.
Connects the SmartLink C device to the PC via the data cable
when as a J2534 PassThru device.
Android
3GB
32GB
10.1 inch FHD IPS capacitive touch screen with a resolution of
1920 x 1200 pixels
Front-facing 5.0MP + Rear-facing 8.0MP camera
Wi-Fi (802.11a/b/g/n/ac)
Bluetooth
4
X-431 PRO5 User Manual
