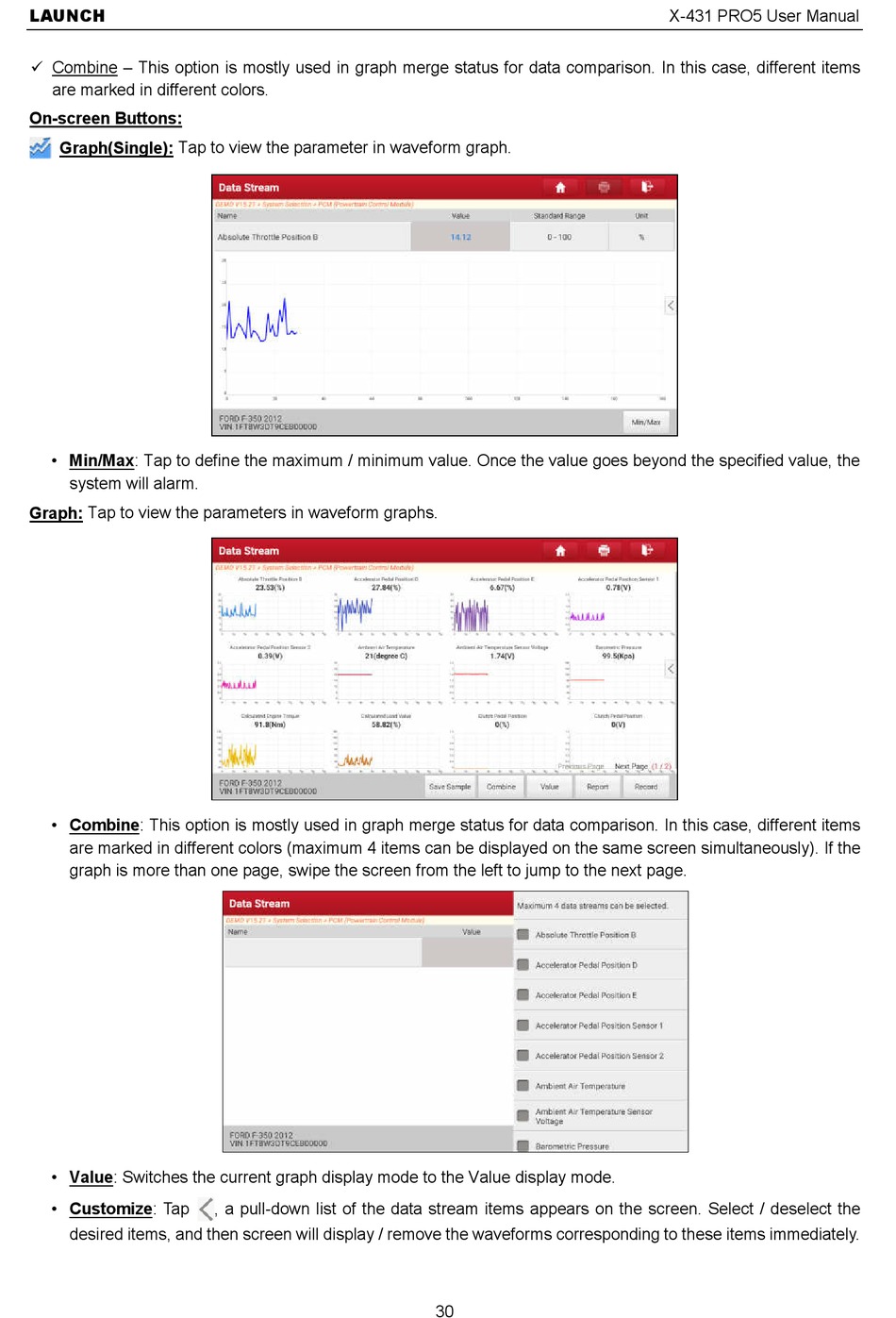

LAUNCH TECH X-431 PRO5 User Manual page 36

LAUNCH
 Combine – This option is mostly used in graph merge status for data comparison. In this case, different items
are marked in different colors.
On-screen Buttons:
Graph(Single): Tap to view the parameter in waveform graph.
• Min/Max: Tap to define the maximum / minimum value. Once the value goes beyond the specified value, the
system will alarm.
Graph: Tap to view the parameters in waveform graphs.
• Combine: This option is mostly used in graph merge status for data comparison. In this case, different items
are marked in different colors (maximum 4 items can be displayed on the same screen simultaneously). If the
graph is more than one page, swipe the screen from the left to jump to the next page.
• Value: Switches the current graph display mode to the Value display mode.
• Customize: Tap
desired items, and then screen will display / remove the waveforms corresponding to these items immediately.
, a pull-down list of the data stream items appears on the screen. Select / deselect the
30
