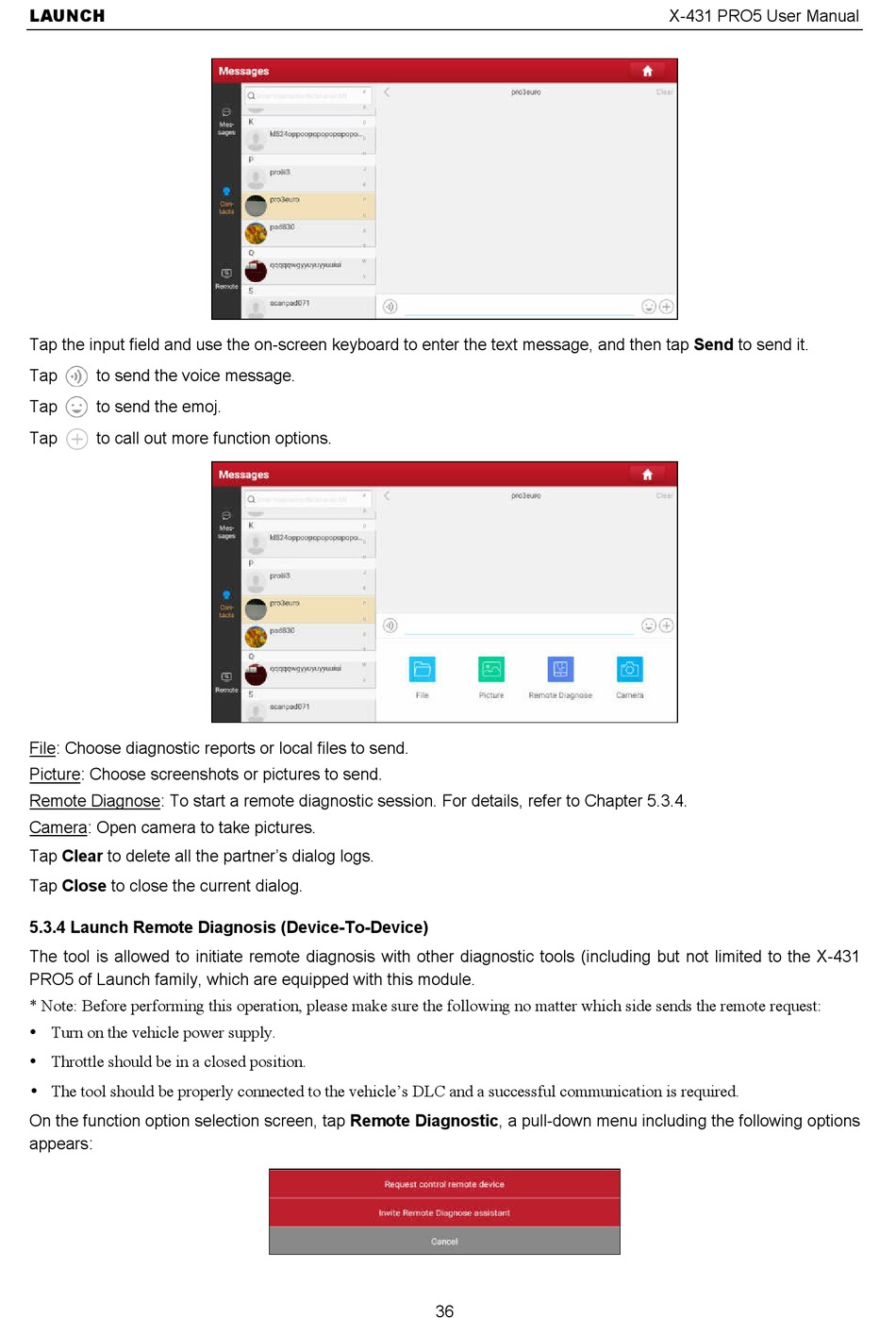

Launch Remote Diagnosis (Device-To-Device) - LAUNCH TECH X-431 PRO5 User Manual

LAUNCH
Tap the input field and use the on-screen keyboard to enter the text message, and then tap Send to send it.
Tap to send the voice message.
Tap to send the emoj.
Tap to call out more function options.
File: Choose diagnostic reports or local files to send.
Picture: Choose screenshots or pictures to send.
Remote Diagnose: To start a remote diagnostic session. For details, refer to Chapter 5.3.4.
Camera: Open camera to take pictures.
Tap Clear to delete all the partner's dialog logs.
Tap Close to close the current dialog.

5.3.4 Launch Remote Diagnosis (Device-To-Device)

The tool is allowed to initiate remote diagnosis with other diagnostic tools (including but not limited to the X-431
PRO5 of Launch family, which are equipped with this module.
* Note: Before performing this operation, please make sure the following no matter which side sends the remote request:
 Turn on the vehicle power supply.
 Throttle should be in a closed position.
 The tool should be properly connected to the vehicle's DLC and a successful communication is required.
On the function option selection screen, tap Remote Diagnostic, a pull-down menu including the following options
appears:
