• SmartLink Service Platform – It can be accessed from the SmartLink module of the tablet. There are two
modules available on the link service platform: I'd like a remote assistance (for SmartLink C) and I am a
remote technician (for SmartLink B).
• SmartLink C (Customer) - SmartLink Service Subscriber. In the SmartLink system, the SmartLink A has an
I'd like a remote assistance module on the SmartLink Service Platform for submitting remote repair orders plus
a SmartLink A dongle for accessing vehicle data. It supports remote diagnostic services for vehicles that meet
CAN / CAN FD / J2534 vehicle diagnostic standards.
1). Launch Service Link Platform: Binds SmartLink C dongles and submits remote repair orders.

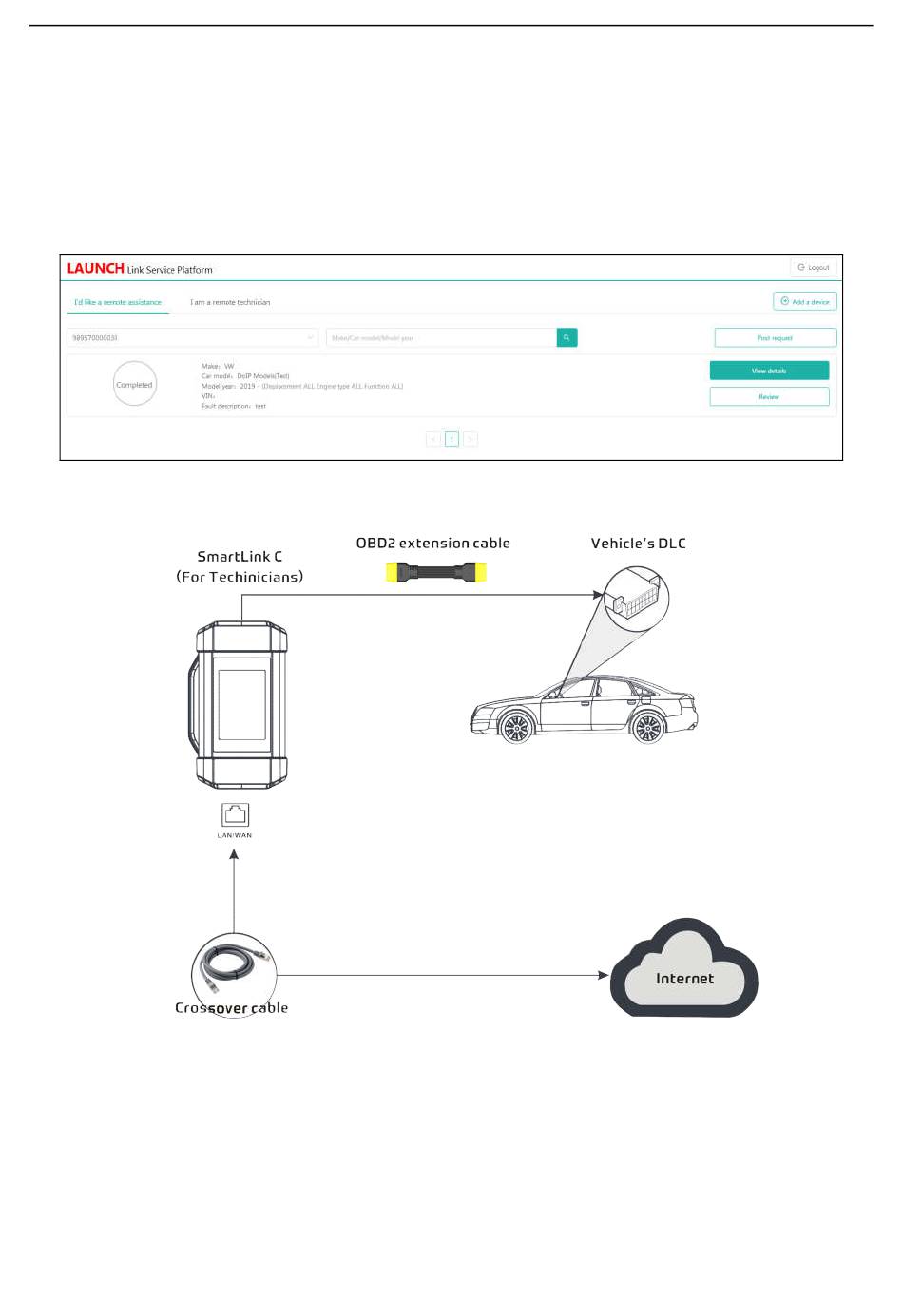

2). SmartLink C Dongle: Connects to the vehicle's DLC port for collecting the vehicle data and sends it to the
remote SmartLink B.
•
SmartLink B (Business) - SmartLink Service Provider. In the SmartLink system, the SmartLink B has an I am
a remote technician module on the SmartLink Service Platform for accepting the orders from SmartLink C plus
a SmartLink B dongle for providing hardware support.
1). Launch Service Link Platform: Binds SmartLink B dongles and accepts orders from SmartLink C.
• If the SmartLink B dongle works with the LAUNCH-specific diagnostic tool equipped with SmartLink module,
tap SmartLink to add the SmartLink B device and accepts orders on the diagnostic tool.
• If the SmartLink B dongle works with the third-party diagnostic tool, open the browser and visit SmartLink
Service Platform website http://smartlink.x431.com (web client) to add the SmartLink B device and accepts
orders in the browser.
