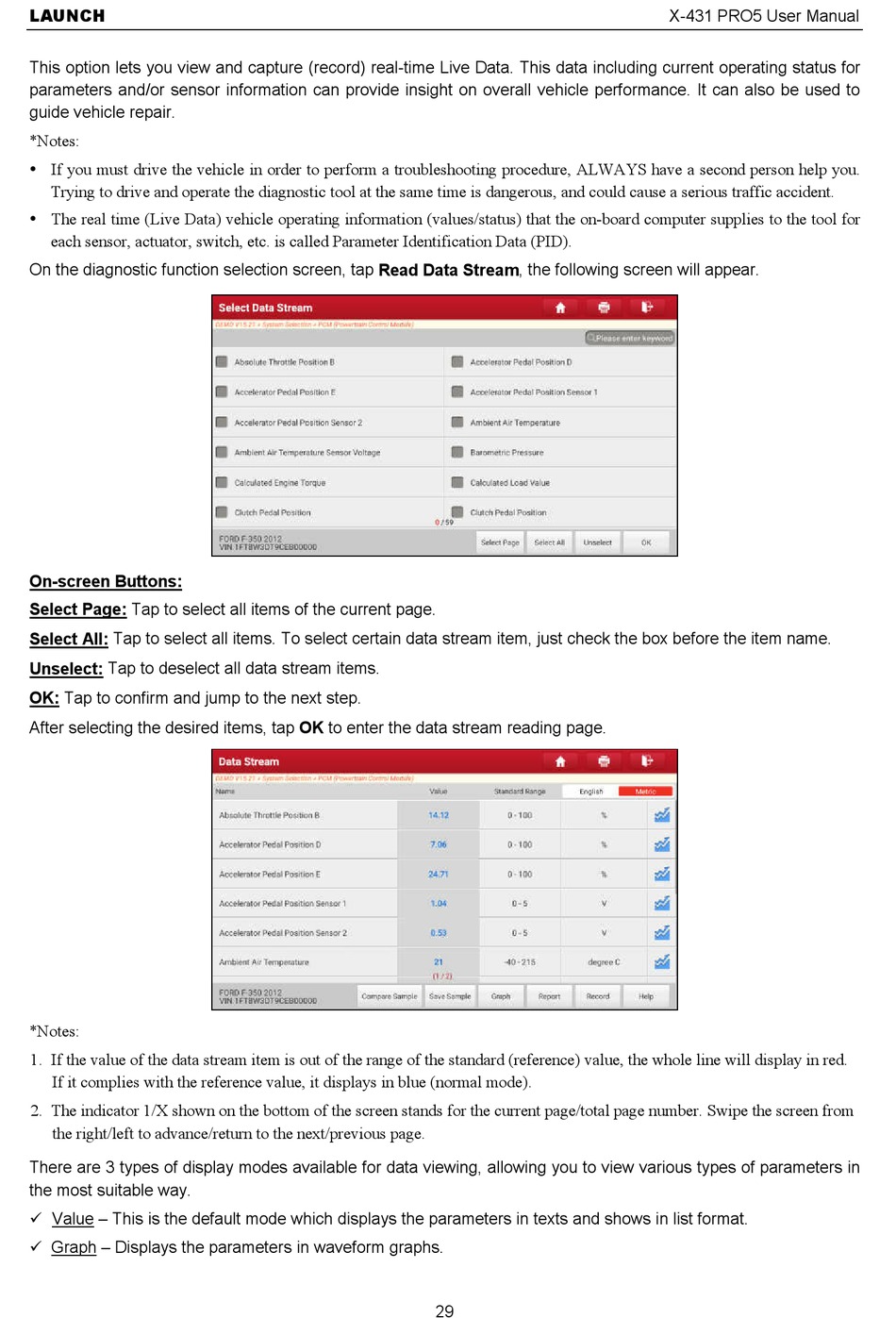

This option lets you view and capture (record) real-time Live Data. This data including current operating status for
parameters and/or sensor information can provide insight on overall vehicle performance. It can also be used to
guide vehicle repair.
*Notes:
 If you must drive the vehicle in order to perform a troubleshooting procedure, ALWAYS have a second person help you.
Trying to drive and operate the diagnostic tool at the same time is dangerous, and could cause a serious traffic accident.
 The real time (Live Data) vehicle operating information (values/status) that the on-board computer supplies to the tool for
each sensor, actuator, switch, etc. is called Parameter Identification Data (PID).
On the diagnostic function selection screen, tap Read Data Stream, the following screen will appear.
On-screen Buttons:
Select Page: Tap to select all items of the current page.
Select All: Tap to select all items. To select certain data stream item, just check the box before the item name.
Unselect: Tap to deselect all data stream items.
OK: Tap to confirm and jump to the next step.
After selecting the desired items, tap OK to enter the data stream reading page.
*Notes:
1. If the value of the data stream item is out of the range of the standard (reference) value, the whole line will display in red.
If it complies with the reference value, it displays in blue (normal mode).
2. The indicator 1/X shown on the bottom of the screen stands for the current page/total page number. Swipe the screen from
the right/left to advance/return to the next/previous page.
There are 3 types of display modes available for data viewing, allowing you to view various types of parameters in
the most suitable way.
 Value – This is the default mode which displays the parameters in texts and shows in list format.
 Graph – Displays the parameters in waveform graphs.
