NAV 10E 401 D and NAV 10E 201 D • Setup Guide (Continued)
Step 4: Complete the Physical Installation
Mount the encoder to the installation surface as follows:
NOTE:
Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.
Insert the cabled encoder into the mud ring or junction box within the wall or furniture, aligning the mounting holes in the
1.
encoder mounting tabs with those in box or mud ring.
Secure the encoder to the junction box, wall or surface mounting box, or mud ring as follows (see figure 4, below):
2.
Flush with
Wall Surface
Wallplate
Mounting
Screws
(6 Places) )

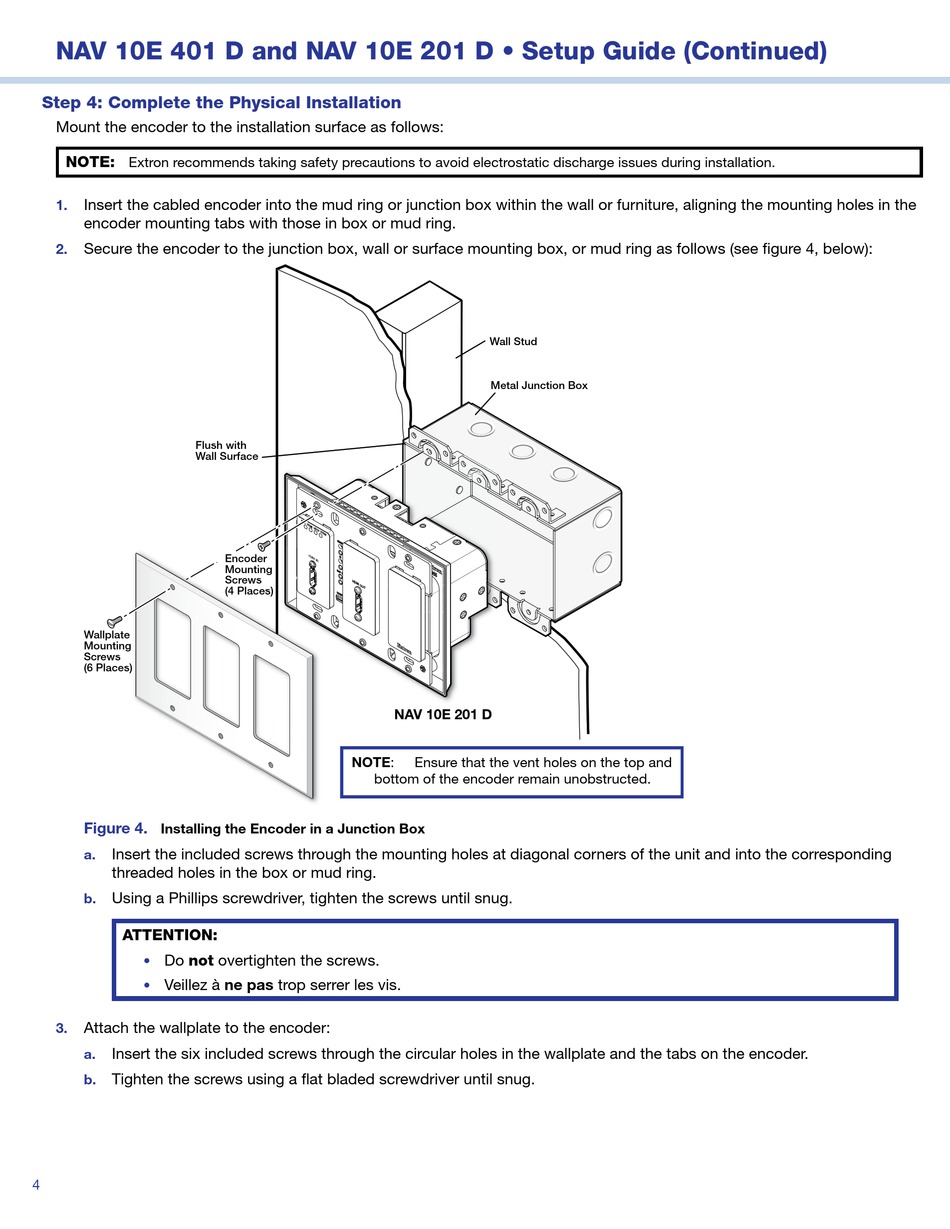

Figure 4.
Installing the Encoder in a Junction Box
Insert the included screws through the mounting holes at diagonal corners of the unit and into the corresponding
a.
threaded holes in the box or mud ring.
Using a Phillips screwdriver, tighten the screws until snug.
b.
ATTENTION:
Do not overtighten the screws.
•
Veillez à ne pas trop serrer les vis.
•
Attach the wallplate to the encoder:
3.
Insert the six included screws through the circular holes in the wallplate and the tabs on the encoder.
a.
Tighten the screws using a flat bladed screwdriver until snug.
b.
4
P W
R
H D
M I
H D
C P
S T
R M
Encoder
Mounting
Screws
H D
M I
O U
(4 Places)
T
E E
NAV 10E 201 D
NOTE:
bottom of the encoder remain unobstructed.
Wall Stud
Metal Junction Box
Ensure that the vent holes on the top and
