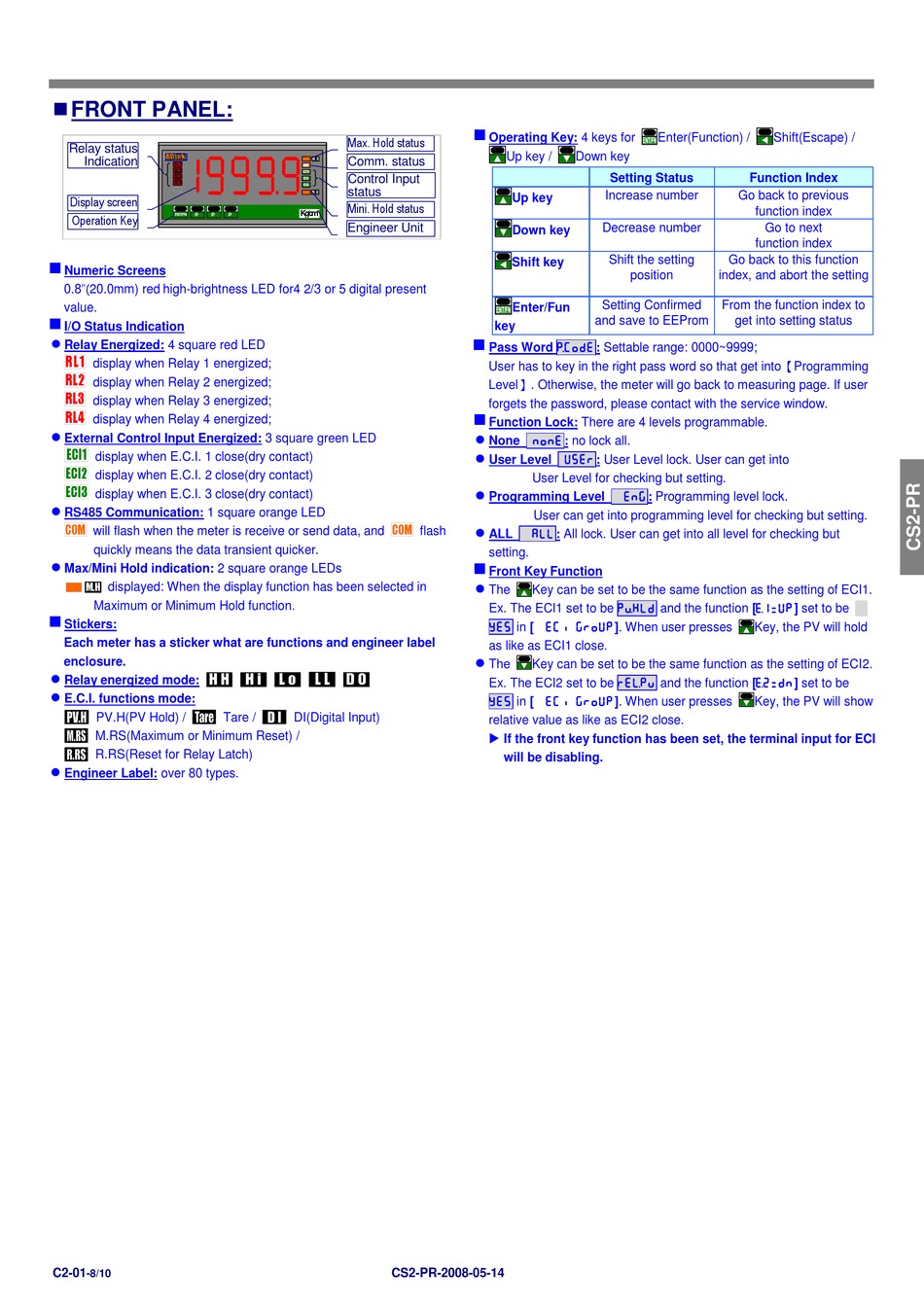

 FRONT PANEL:
Relay status
Indication
R L 1
RL2
2
RL3
RL4
Display screen
? ?
ENT/FN
Operation Key

Numeric Screens
0.8"(20.0mm) red high-brightness LED for4 2/3 or 5 digital present
value.

I/O Status Indication
●
Relay Energized: 4 square red LED
RL1
display when Relay 1 energized;
RL2
display when Relay 2 energized;
RL3
display when Relay 3 energized;
RL4
display when Relay 4 energized;
●
External Control Input Energized: 3 square green LED
display when E.C.I. 1 close(dry contact)
display when E.C.I. 2 close(dry contact)
display when E.C.I. 3 close(dry contact)
●
RS485 Communication: 1 square orange LED
will flash when the meter is receive or send data, and
quickly means the data transient quicker.
●
Max/Mini Hold indication: 2 square orange LEDs
displayed: When the display function has been selected in
Maximum or Minimum Hold function.

Stickers:
Each meter has a sticker what are functions and engineer label
enclosure.
●
Relay energized mode:
●
E.C.I. functions mode:
PV.H(PV Hold) /
M.RS(Maximum or Minimum Reset) /
R.RS(Reset for Relay Latch)
●
Engineer Label: over 80 types.
C2-01
-8/10
Max. Hold status
M.H Comm. status
CO M
CI11
Control Input
CI2
CI3
status
M.H
Mini. Hold status
2
K g / c m
?
Engineer Unit
Tare / DI(Digital Input)
CS2-PR-2008-05-14

Operating Key: 4 keys for
Up key / Down key
Up key
Down key
Shift key
Enter/Fun
key

Pass Word Pcode: Settable range: 0000~9999;
User has to key in the right pass word so that get into【Programming
Level】. Otherwise, the meter will go back to measuring page. If user
forgets the password, please contact with the service window.

Function Lock: There are 4 levels programmable.
●
none: no lock all.
None
●
user: User Level lock. User can get into
User Level
User Level for checking but setting.
●
Programming Level
User can get into programming level for checking but setting.
●
flash
all: All lock. User can get into all level for checking but
ALL
setting.

Front Key Function
●
The Key can be set to be the same function as the setting of ECI1.
Ex. The ECI1 set to be pVhld and the function [E1=up] set to be
yes in [ eci group]. When user presses
as like as ECI1 close.
●
The Key can be set to be the same function as the setting of ECI2.
Ex. The ECI2 set to be reLpv and the function [E2=dn] set to be
yes in [ eci group]. When user presses
relative value as like as ECI2 close.
 If the front key function has been set, the terminal input for ECI
will be disabling.
Enter(Function) /
Setting Status Function Index
Increase number Go back to previous
function index
Decrease number Go to next
function index
Shift the setting Go back to this function
position index, and abort the setting
Setting Confirmed From the function index to
and save to EEProm get into setting status
eng: Programming level lock.
Key, the PV will hold
Key, the PV will show
Shift(Escape) /
