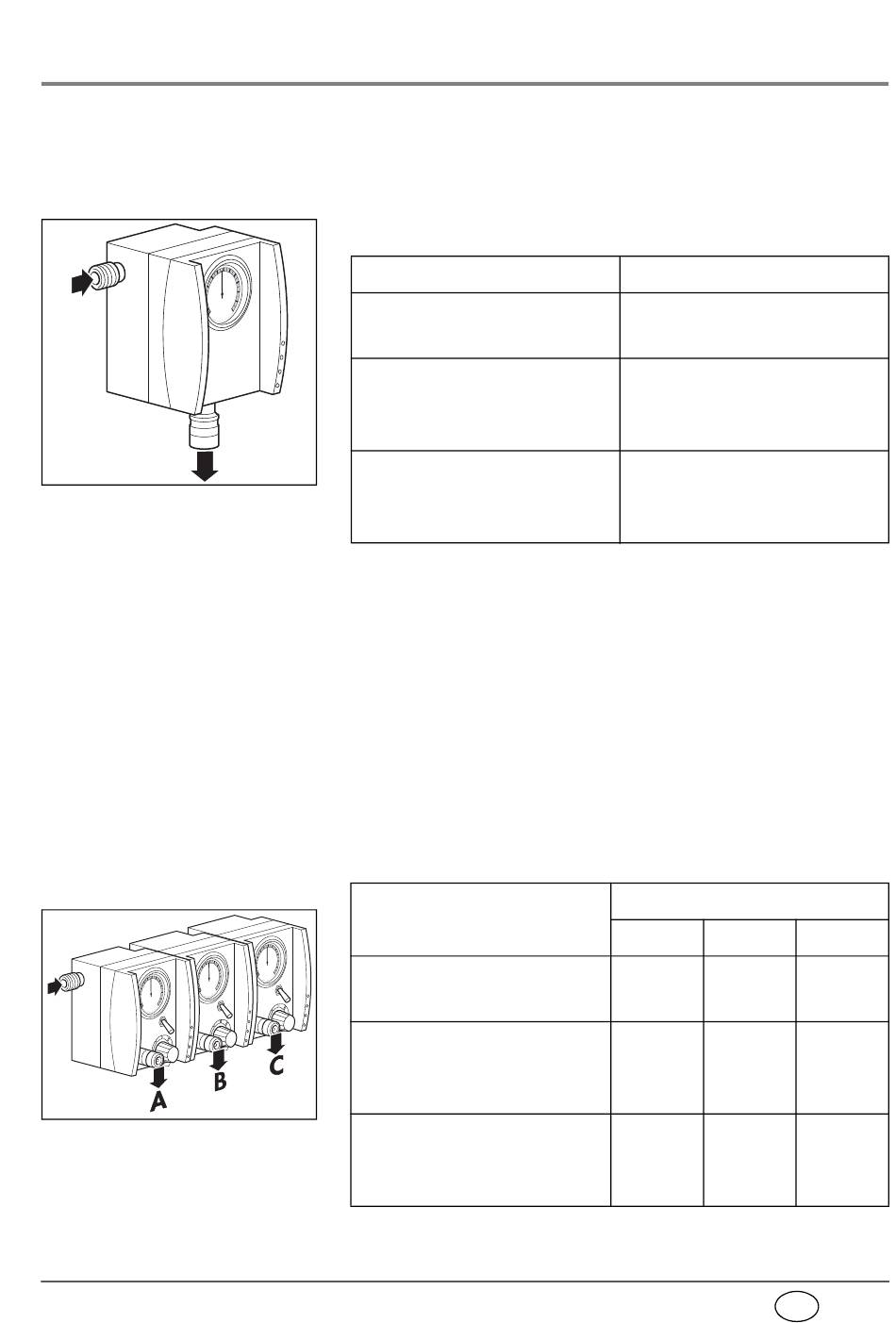

16.2 External oxygen output

The following outputs apply to oxygen output for
other devices.
Interface MODULE
Inlet
2.7 bar dynamic back
pressure at 80 l/min
of WEINMANN Emergency
pressure reducer
WM 1102/106
of WEINMANN Emergency
pressure reducer
WM 30301
Several modules
If several modules are switched in series, output falls
the further the relevant module is from the oxygen
feed. This is due to the increased flow resistance
when oxygen is passed through several modules.
The values quoted relate to the fact that oxygen is
only output by one module at a time.
Inlet
2.7 bar dynamic back
pressure at 80 l/min
of WEINMANN Emergency
pressure reducer
WM 1102/106
of WEINMANN Emergency
pressure reducer
WM 30301
Oxygen output
min. 70 l/min
min. 100 l/min
min. 90 l/min
Oxygen output
A B
min. min.
76 l/min 73 l/min
min.
min.
100 l/
95 l/min
min
min. min.
91 l/min 88 l/min
Technical data EN
C
min.
70 l/min
min.
90 l/min
min.
85 l/min
