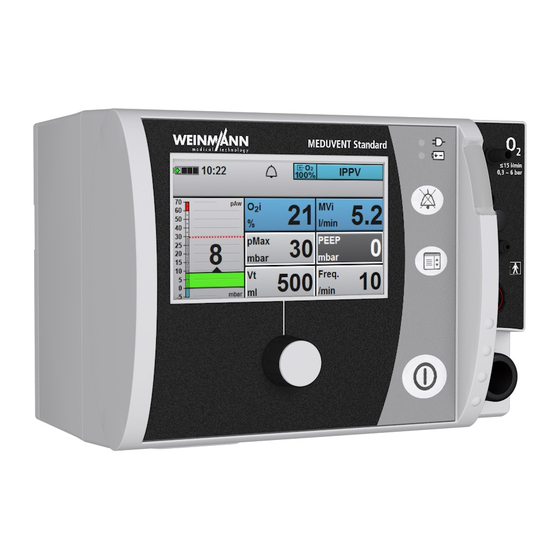

Weinmann MEDUVENT Standard Manual
  1. Manuals
  2. Brands
  3. Weinmann Manuals
  4. Medical Equipment
  5. MEDUVENT Standard
  6. Manual

Weinmann MEDUVENT Standard Manual

Hide thumbs Also See for MEDUVENT Standard:

Advertisement

Quick Links

Download this manual
MEDUVENT Standard
Ventilate
Wherever You Go
MEDUVENT Standard User Training © WEINMANN

Advertisement

loading

Related Manuals for Weinmann MEDUVENT Standard

Summary of Contents for Weinmann MEDUVENT Standard

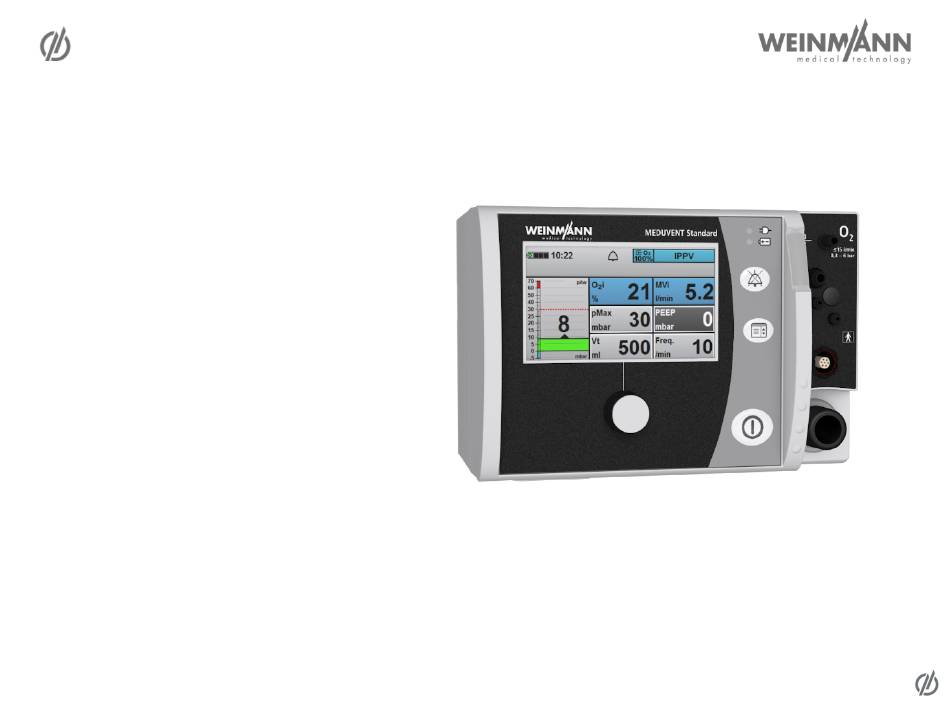

  • Page 1 MEDUVENT Standard Ventilate Wherever You Go MEDUVENT Standard User Training © WEINMANN...
  • Page 2 MEDUVENT Standard Device training for user instruction (including the options: SIMV, S-IPPV)
  • Page 3 • Convey extensive product knowledge for safe operation of MEDUVENT Standard by the user • Convey extensive product knowledge about pre-sets made on MEDUVENT Standard by the operator This training document does not replace the instructions for use. Technical modifications reserved. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 4: Table Of Contents

    Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 5 Introduction SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 6 Emergency and transport ventilator for invasive and non-invasive ventilation via the nose, mouth and trachea. à MEDUVENT Standard is used in the treatment of infants, children, and adults with a body weight of 7 kg and more à Tidal volumes (volume-controlled) of 50 ml or more are possible à...
  • Page 7 - For supporting the induction of anesthesia (TIVA: total intravenous anesthesia) • Transport - In ground, sea and air emergency medical service - Between hospital rooms and departments - Between the hospital and other premises (secondary transport) SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 8 • The device has not been approved for the following applications: - Operation in hyperbaric chambers - Operation in conjunction with MRI, NMR, NMI - Use in long-term ventilation for longer than 24 hours SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 9 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 10 Safety SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 11 • Only use the device for the intended purpose • Please note that the following safety information is not complete. The complete safety information can be found in the Instructions for Use! SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 12 à Continuously observe and monitor the patient and device during ventilation. à Additionally use external monitoring (e.g. SpO and/or etCO SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 13 à Do not use the measured MVi value as an adequate means of assessing ventilation. à Use external monitoring (etCO or expiratory volume measurement). SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 14 This might expose the patient to the risk of serious or life- threatening injury. à Only use approved accessories. à Follow the instructions for use for the accessories. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 15 Reused disposables may cause infections and contamination if they come into contact with airways. This might expose the patient and the user to the risk of serious or life-threatening injury. àDo not reuse disposables. àDo not subject disposables to hygienic reprocessing. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 16 à Quickly move the patient to a warmer location. à At temperatures below 5 °C, use a breathing system filter to extend application time. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 17 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 18: Product Description

    Product description SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 19 Product description Display of: Display - Power supply - Battery status Alarm light SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 20 Product description Oxygen inlet Measuring circuit connection Accessories connection Ventilation hose connection SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 21 Product description Alarm mute button Menu button On/Off button Navigation knob SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 22 Product description Power supply connection Battery compartment cover Hygiene filter Security seal SD card slot SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 23 Product description Reusable breathing circuit Disposable breathing circuit Connection for flexible oxygen tube Pressure measuring tube connection PEEP control tube connection SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 24 Product description Operation with 100 % Alarm Time or 93 % oxygen Active Battery status ventilation mode Emergency modes Infant Child Adult New patient Function check SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 25 Time 93 % oxygen mute Battery status Ventilation mode Oxygen Alarm and concentration information line Measured Bar graph inspiratory minute volume Maximum value indicator PEEP Maximum ventilation Ventilation rate Tidal volume pressure SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 26 Symbols on the Display Symbol Designation Description Audio alarm output active Alarm symbol Audio alarm output muted for 120 s Operation with 100 % oxygen Supply gas symbol Operation with concentrator oxygen SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 27 Battery status symbol Battery almost empty (5 minutes time left, a timer counts down the time) • No battery • Battery not at suitable temperature • Battery defective Green arrow: Battery is charging SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 28 Symbols on the Display Symbol Designation Description Fault determined during function check Follow instructions for use Function check symbol Servicing measure required SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 29 Designation Description Emergency mode Infant (up to about 1 year old) Emergency mode Emergency mode Child (between symbols about 1 and 12 years old) Emergency mode Adult (from about approx. 13 years) SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 30 MEDUtrigger connection line Power supply unit and charger 10. EasyLung 11. Hygiene Filter 12. OXYWAY pressure reducer 13. Charging adapter 14. Ventilation mask 15. Adapter for disposable breathing circuit 16. Oxygen inlet tube SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 31 10. Main body 11. PEEP control diaphragm 12. Control cover 13. Measuring circuit (reusable) 14. Pressure measuring tube 15. Flexible oxygen tube 16. PEEP control tube 17. Measuring circuit connector 18. MEDUtrigger connection line SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 32 Components: Disposable breathing circuit MEDUtrigger connection line Tube clip PEEP control tube Elbow MEDUtrigger Patient valve Pressure measuring tube Flexible oxygen tube Disposable breathing circuit adapter 10. Ventilation hose SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 33 Optional functions Function In MEDUVENT Standard IPPV Ventilation, Manual, Standard scope of delivery CPAP SIMV mode Software option, paid S-IPPV mode Software option, paid SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 34 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 35: Preparation And Operation

    Preparation and operation SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 36 Using the rechargeable battery: Charging options Charging adapter for charging MEDUVENT Standard with power supply unit and charger or via 12 V cable. For charging a single device or MEDUVENT Standard mounted on LIFE-BASE light XS. The charging adapter is automatically pulled into the charging socket of MEDUVENT Standard through a magnetic connection.
  • Page 37 Connecting components: Reusable breathing circuit Connect the ventilation hose to Attach the measuring circuit • • the ventilation hose connection connector to the measuring and connect the MEDUtrigger circuit connection SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 38 Connect the ventilation hose to Connect the flexible oxygen tube • • the ventilation hose connection and pressure measuring tube to and connect the MEDUtrigger the adapter on the device and connect the MEDUtrigger SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 39 Following intubation, attach the the patient valve of the breathing patient valve of the breathing circuit, with or without an elbow circuit to the endotracheal tube, with or without an elbow NOTICE: Use respiratory filter SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 40 Connecting the oxygen supply Tighten the pressure reducer by Connect the oxygen inlet tube to • • hand and place the oxygen inlet the device's oxygen inlet tube on the inhalation outlet SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 41 Switching the device on and off Switching on: Switching off: min. 2 sec Briefly press the On/Off button. Press and hold the On/Off button • • for at least 2 seconds. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 42 After switching on the device an automatic self-test runs which comprises the following sequence: • Alarm light flashes twice and two short test tones are emitted in parallel • The start screen appears SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 43 2. Perform a function check. of the steps have been completed. After the self-test the device displays the start menu: If one or more conditions are not met: Do not operate the device. Perform alternative ventilation! SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 44 This can be recognized by the fact that the menu item Emergency Adult is highlighted in dark gray. • To select another emergency mode, use the navigation knob to select the corresponding menu item and confirm your selection by pressing the navigation knob. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 45 Ventilating the patient: New patient As an alternative to directly selecting an emergency mode, you can also select the New Patient menu item from the start menu: Fast, patient-friendly start of ventilation via height and gender SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 46 Ventilating the patient: New patient Start ventilation via height and gender Select menu item New patient Select the presumed gender of • • with the navigation knob and the patient and confirm. confirm. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 47 Select height with the navigation Select the estimated body height • • knob and confirm. of the patient and confirm. The height is given in 5 cm • increments between 50 cm and 250 cm. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 48 MEDUVENT Standard shows the ventilation parameters determined via • Exit menu via Next height and gender. These can be adjusted before starting the ventilation. After confirmation of the parameters MEDUVENT Standard starts the desired ventilation. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 49 To open the user menu Selection: • • briefly press the menu Adult • button Child or • Infant • The device switches to IPPV mode with the ventilation parameters preset for the patient group! SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 50 Switching ventilation mode Briefly press the menu button to Check the displayed ventilation • • navigate to the user menu. parameters and select Start to Select a ventilation mode. start the selected mode. • SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 51 Ventilating the patient: Changing ventilation parameters Select the ventilation parameter Change the parameter by • • you want to change using the turning the navigation knob and navigation knob. confirm by pressing it. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 52 If you want an oxygen calculated preview value, then concentration of 100 %, the the measured value is same flow as the delivered MVi displayed. must be set at the pressure reducer. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 53 • Press and hold the MEDUtrigger which oxygen flow is to be fed button until two mechanical breaths into the device. The basis for have been delivered. the calculation is a 30:2 CPR. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 54 Patient monitoring The patient is to be constantly monitored by the User. MEDUVENT Standard supports the user in patient monitoring through: • Bar graph indicating the ventilation pressure as well as pInsp and the set pMax. • Display of the inspiratory minute volume MVi •...
  • Page 55 Patient monitoring The patient is to be constantly monitored by the User. MEDUVENT Standard supports the user in patient monitoring through: • Display of the active alarm in text and color High priority • Alarm color according to the priority of the active alarm...
  • Page 56 • output muting. The duration of muting is 120 s. • Canceling the Alarm mute button symbol in the display • muting of the confirms cancellation of the muting. audio alarm output SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 57 Transporting the device You can transport MEDUVENT Standard on the following portable systems: 1. LIFE-BASE 3 NG 2. LIFE-BASE 1 NG 3. LIFE-BASE 1 NG XS 4. LIFE-BASE light XS SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 58 If the flow exceeds the maximum permissible value of 15 l/min, the pressure relief valve might unintentionally open and place the therapy at risk. à Feed in oxygen only at a maximum flow of 15 l/min. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 59 Oxygen: Connecting the oxygen supply Tighten the pressure reducer by Connect the oxygen inlet tube to • • hand and connect the oxygen the device's oxygen inlet. inlet tube to the inhalation outlet. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 60 2. Press and hold the On/Off button for at least 2 seconds to switch the device off. 3. If necessary: Disconnect the oxygen inlet tube from the device. 4. If necessary: Replace the empty oxygen cylinder. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 61 . Internationally, content indicators often indicate the pressure in PSI (pounds per square inch). 1 PSI corresponds to approximately 0.07 bar. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 62 In order to achieve an FiO of 100 % use the minute volume administered as a guide. For example, to achieve 100 % at a MV of 5 l/min, a flow of 5 l/min is required SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 63 (l/min) Operating time oxygen cylinder (hh:mm) 2 l volume 10 l volume 13:20 66:40 06:40 33:20 04:26 22:13 03:20 16:40 02:13 11:06 01:20 08:20 01:06 06:40 00:44 05:33 00:33 03:42 00:26 02:13 SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 64 5. If necessary: Replace the ventilation mask or tracheal tube. 6. If necessary: Replace the disposable breathing circuit. 7. If necessary: Stow the accessories on the portable system. 8. If necessary: Place the device and accessories in storage. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 65 2. Also open the hook and loop fasteners in the protective sleeve completely. 3. Disconnect the connecting cable of the MEDUtrigger and the measuring circuit from the patient valve. (1) PEEP control tube (2) Pressure measuring tube (3) Flexible oxygen tube SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 66 4. Detach the elbow from the patient valve. 5. Disconnect patient valve from ventilation hose. 6. Remove the patient valve. 7. Detach the band of the protective cap from the check valve diaphragm holder. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 67 “TOP” must face upward toward the control cover. • The arrow on the control cover must point toward the patient. 2. Connect the patient valve to the ventilation hose. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 68 7. Place the breathing circuit in the protective sleeve and close the zip fastener. 8. Re-connect the breathing circuit to the device. 9. Perform a function check. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 69 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 70: Description Of The Modes

    Description of the modes SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 71 PEEP tidal volume. However, a spontaneously breathing patient can breathe deeply Freq. IPPV settings and freely during expiration. The set pMax ensures the safety of the patient. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 72 PEEP residual capacity FRC in spontaneously breathing patients. The patient is able to CPAP settings breathe spontaneously without any restriction at the set pressure level. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 73 PEEP mandatory minute volume. Synchronization with the patient in the Freq. SIMV settings last 20% of the expiratory phase. The set pMax ensures the safety of the patient. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 74 PEEP mandatory minute volume. Throughout the entire expiratory phase, the patient S-IPPV Freq. can trigger a new mechanical breath. The settings set pMax ensures the safety of the patient. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 75 The basis for the calucation of S-IPPV pMax settings the value is a 30:2 CPR. The set pressure limit (pMax) ensures the safety of the patient. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 76 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 77: Hygienic Reprocessing

    Hygienic reprocessing SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 78 • Further information n hygienic reprocessing can be found in a brochure on our website at www.weinmann-emergency.com • For hygienic reprocessing, note the MEDUVENT Standard instructions for • Clean the device, components and accessories after every use, but at least once a week! SKR 11/2019 MEDUVENT Standard User Training ©...
  • Page 79 à Release all connections between the device and the patient à Switch off the device and disconnect it from line power à Disconnect the patient circuit from the device à Hygienically reprocess the device and accessories MEDUVENT Standard User Training © WEINMANN SKR 11/2019...
  • Page 80 Wipe down Wash with loop strap gigasept® FF with Derval SOLO neodisher® and Ottalin Not permitted Dose: 5 ml/l permitted MediClean PERACET at Exposure time: forte up to 70 °C 15 min SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 81 Hygiene filter (after change intervals) Disposable; do not reuse, dispose of properly Oxygen inlet tube Pressure reducer Portable system Ventilation Follow the manufacturer's instructions for use mask Tracheal tube Breathing system filter SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 82 Exposure time: disinfection: 5 min at Duration: 15 min 90 °C, 5 min 134 °C Measuring Treat all (corresponds circuit surfaces at to A0 value 4 min at least 2x 3000) 132 °C SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 83 Wash at 60 °C in an industrial washing machine : Derval SOLO Dose: 2 ml/l Disinfectant: Protective Not permitted Not permitted Not permitted sleeve Ottalin permitted PERACET Dose: 2 ml/l Exposure time: 10 min, type SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 84 Thermal 5 min at disinfection: 134 °C Exposure Duration: time: 15 min 90 °C, 5 min Treat all (corresponds 4 min at surfaces at to A0 value 132 °C least 2x 3000) SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 85 Allow the measuring circuit to dry out completely. If necessary: Use sterile compressed air or medical oxygen for drying. Check for soiling, repeat if necessary Risk of injury due to false readings! à Allow the measuring circuit to dry out completely. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 86 4. Fit the accessories 5. Reconnect the power supply 6. Perform a function check 7. Place parts in storage in accordance with the storage conditions Result: Device is ready for operation again SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 87 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 88: Function Check

    Function check SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 89 Intervals • Before each use • After each hygienic reprocessing • After each repair • When using the reusable breathing circuit, at least every 6 months • After each update SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 90 • Check connectors and cables for external damage. • Check the breathing circuit according to the instructions for use section 5.4 • Check the fill level of the oxygen cylinder • Further accessories Check the accessories for external damage SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 91 Performing a function check 2/8 • Switch on the device and select Function check SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 92 Performing a function check 3/8 Device preparation: • Connect patient circuit • Connect test lung • Connect MEDUtrigger When all the requirements are met: Press the navigation knob to select Start SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 93 If the oxygen test is to After the oxygen test, be carried out, set the continue with the pressure reducer to a function check by flow of 5-15 l/min and selecting Next select Start. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 94 • Testing the alarm tone and alarm light If you hear an alarm tone, If the alarm lamp lights up, confirm with Yes, confirm with Yes, otherwise select No otherwise select No SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 95 Performing a function check 5/8 • Press all controls Exception: Do not press the On/Off button SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 96 • Filter wear Proceed according to the following table: Color Action Green Continue to use hygiene filter Keep hygiene Yellow filter ready, order if necessary Replace the hygiene filter NOTICE: Filter reset is protected by a code. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 97 Device not ready Function check If the function for use failed check is still not passed: Contact manufacturer/ dealer Device ready for Guidance notes Contact use/service for the scheduled manufacturer/ symbol flashes service dealer SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 98 Performing a function check 8/8 • Risk of injury due to non-operational device! • Only operate the device after it passes the function check. • Remove the testing bag completely after each function check! SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 99 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...

  • Page 100: Alarms And Faults

    Alarms and faults SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 101 Alarms are shown in the alarm line of the display in the form of text. The text is displayed with a particular background color as a function of alarm priority: Alarm color Meaning High priority Yellow Medium priority Turquoise Low priority SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 102 èTechnical alarms occur when ventilation is no longer possible! See chapter 10.1 in the instructions for use for causes and remedies of alarms. See chapter 10.2 in the instructions for use for the remedy of faults. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 103 Contents • Introduction • Safety • Product description • Preparation and operation • Description of the modes • Hygienic reprocessing • Function check • Alarms and faults • Maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 104 Safety checks (STK)/maintenance SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 105 This might expose the patient to the risk of serious or life-threatening injury. à Observe the maintenance intervals according to the instructions for use and the displays on the device. à Also observe the maintenance intervals for stored devices and accessories. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 106 After being prompted during the User/operator function check or within the scope of (see section 11.3 of the the recommendations instructions for use) SKR 11/2019 MEDUVENT Standard User Training © WEINMANN Accessories See the instructions for use for the accessories...
  • Page 107 Thank you for your attention! SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 108 Annex to the product training MEDUVENT Standard The Operator Menu...
  • Page 109 Operator menu | Introduction • Device is switched on and displays the start screen Press the Use the navigation knob menu button to access to enter the 4-digit access code the operator menu. password. SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 110 • Language • PEEP • pMax • pMax Manual • Infant Patient presets • Reset • Child • Adult • Height • Vt per kg body weight • Reset • PEEP warning SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 111 Operator Menu – Structure Changing the access code • S-IPPV • SIMV Options • Manual • Enable Import/Export • Export log files • Export configuration • Import configuration Software update Device information Battery information SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 112 Minute 0 to 59 Volume 100 %, 50 % 100 % Brightness 10 % to 100 % Filter wear Normal, high, very high Normal Reset filter counter Change filter reset code 0000 SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 113 Suppress maintenance Yes (once for 180 days), reminder Cancel Language de-DE, en-US, es-ES, fr- FR, ar-SA, cs-CZ, fa-IR, he-IL, hi-IN, id-ID, it-IT, nl- NL, pl-PL, pt-BR, pt-PT, ru- RU, sv-SE, th-TH, zh-CN SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 114 20 mbar 25 mbar 30 mbar Reset to factory settings Vt/kg body weight 4 – 10 ml/kg 6 ml/kg Height Reset to factory settings SKR 11/2019 PEEP warning 1 – 21 mbar 11 mbar MEDUVENT Standard User Training © WEINMANN...
  • Page 115 The device imports a configuration from the SD card Device information Contains information on serial numbers, device ID, counters (device check, maintenance, function check), software version Battery information Contains information on battery data SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 116 Open splash guard and press on the SD card. The SD card is ejected slightly: Remove the SD card and close the splash guard again. NOTICE: Do not remove the SD card during a data import or export SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
  • Page 117 Prerequisite: All devices have the same software version! • Exporting Log Files The following files are stored as log files in MEDUVENT Standard à debug and status are used exclusively for service communication with WEINMANN Emergency à...
  • Page 118 4. The device updates the software. Please do not move the device during the process or press buttons! 5. Press SUCCESS after the update. The device restarts. 6. Perform a function check SKR 11/2019 MEDUVENT Standard User Training © WEINMANN...
