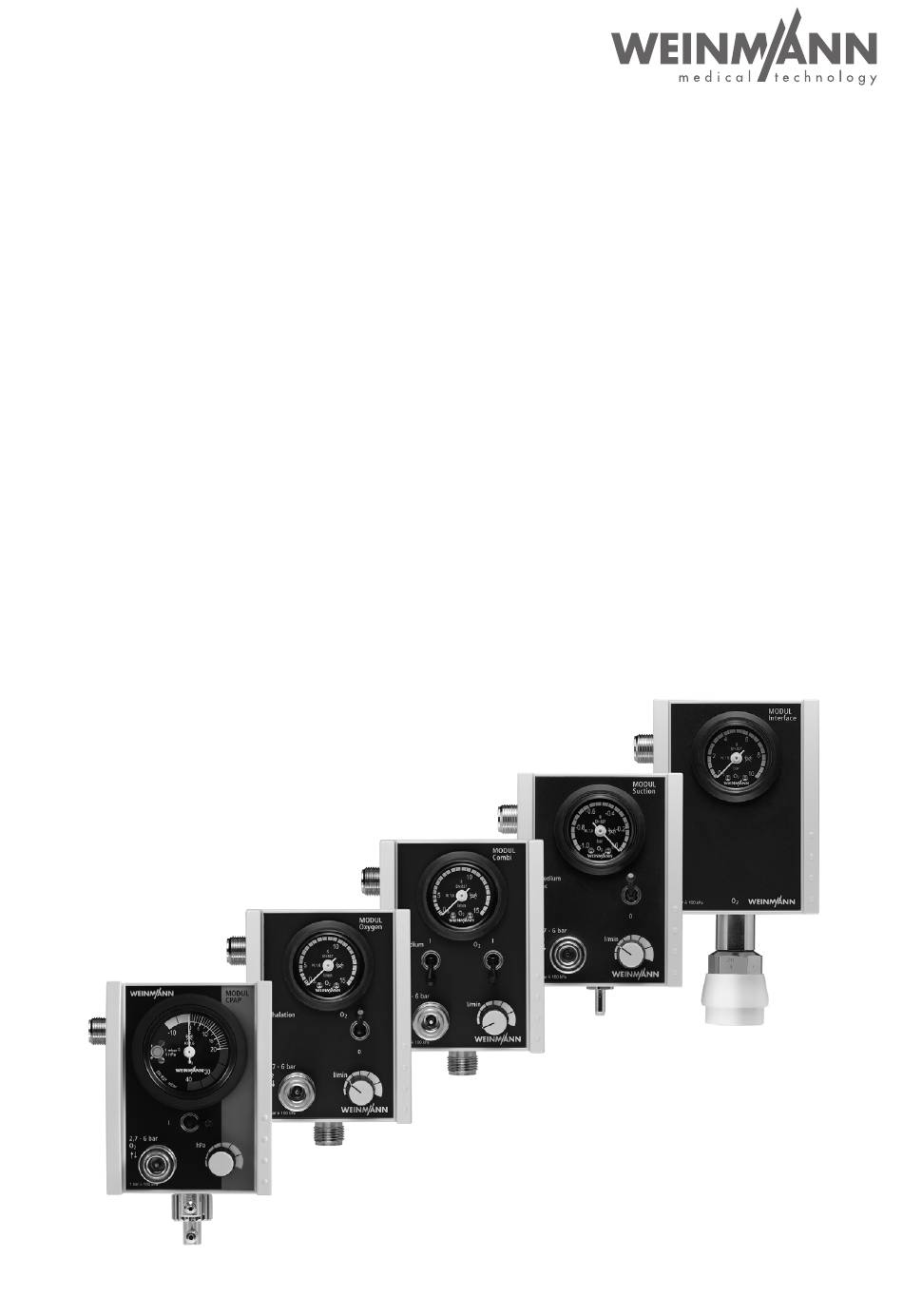

- Page 1 Module System Oxygen MODULE Suction MODULE Combi MODULE Interface MODULE CPAP MODULE Instructions for use...
-
Page 2: Table Of Contents
Contents 1. Overview ....3 9.1 CPAP function ....32 9.2 Operation . -
Page 3: Overview
1. Overview MODUL Oxygen MODUL Suction Inhalation Medium 2,7 - 6 bar l/min 2,7 - 6 bar l/min Suction MODULE Oxygen MODULE MODUL Combi Medium 2,7 - 6 bar l/min Interface MODULE Combi MODULE MODUL CPAP Oxygen inlet with nonreturn valve (not seen) Display Oxygen outlet Toggle switch... -
Page 4: Markings On The Device
1.1 Markings on the device ID plate for MODULES Serial number of device Date of manufacture Type of gas: O CE symbol (confirms that the product conforms to the applicable European directives) Permitted inlet pressure 2.7 - 6 bar O Follow instructions for use Other markings Inhalation connection... - Page 5 Oxygen inlet and outlet 2,7-6 bar Oxygen outlet outlet for CPAP CPAP Permitted inlet pressure 2.7 - 6 bar O Service label: indicates when the next service is required. Overview...
-
Page 6: Description Of Device
2. Description of device 2.1 Intended use Oxygen Suction Combi Interface CPAP Intended use MODULE MODULE MODULE MODULE MODULE To increase the percentage proportion by – – volume of oxygen in inhaled air To create a vacuum to enable relatively large accumulations of blood, mucus, saliva etc. -
Page 7: Combination Options
2.3 Combination options You can use modules individually or connected in series of up to three modules. Another option is to connect up to three modules to the MEDUMAT ventilation device. Always operate only one module or one Medumat at a time. If you use modules simultaneously, it is possible the supply of will be inadequate. -
Page 8: Safety Instructions
3. Safety instructions 3.1 Safety instructions For your own safety and that of your patients, and in accordance with the requirements of directive 93/ 42/EEC, observe the points below. General • Please read these instructions for use through carefully. They are a constituent part of the device and must be available at all times. - Page 9 Suction MODULE or Combi MODULE breaks down. Accessories/repairs • Have repair work performed only by the manufacturer, WEINMANN Emergency, or authorized staff. • If third-party items are used, functional failures and restricted fitness for use may result. Biocompatibility requirements may also not be met.
- Page 10 Do not empty cylinders completely, otherwise damp ambient air may penetrate and lead to corrosion. Inhalation • If you use WEINMANN Emergency inhalation masks, a dangerous rise in pressure is not possible. • However, please ensure that the exhaled respiratory gas can flow away freely.
-
Page 11: Contraindications
familiar with aspiration technology. Severe physical injuries can be caused by incorrect use. • Pay particular attention during aspiration to en- sure that no injuries are caused to the patient’s oropharyngeal cavities, e.g. to the mucous membranes. • For bronchial aspiration, work under sterile conditions and use only sterile aspiration catheters. -
Page 12: Side Effects
• use of mask impossible • undrained pneumothorax • intracranial hypertension. 3.3 Side effects If the contraindications are taken into account, no side effects are likely in use with normal oxygen. However, observe the side effects mentioned in the patient information leaflet entitled “Medical oxygen”... -
Page 13: Assembly
4. Assembly If the modules are supplied complete on a LIFE-BASE or LIFE-BASE Mini carrying platform, they are operational and you need not perform any further assembly. 4.1 Assembling the modules Connecting 1. Release the connection to the oxygen supply (see “Removing an empty cylinder”... -
Page 14: Connecting Oxygen Supply
5. Connect any other modules in exactly the same way. No more than 3 modules may be connected, otherwise it is impossible to guarantee compliance with the specified technical data. 6. Screw the modules and, if appropriate, the MEDUMAT onto the assembly plate from the back as shown in the assembly instructions provided, screw the modules to a solid wall from the back. - Page 15 You should always connect the oxygen supply at the extreme left-hand module, as oxygen inlet of all modules is equipped with a nonreturn valve. The nonreturn valve ensures that the oxygen can get Inlet with nonreturn in but cannot get out at this connection. valve Oxygen outlet has no non-return valve.
-
Page 16: External Oxygen Connection
2. Screw the pressure reducer with the corrugated union nut to the cylinder valve. Tighten the union nut hand-tight. 3. Screw the pressure tube with the G 3/8 union nut to the pressure reducer outlet. 4. Screw the other end of the pressure tube to oxygen inlet of the module. -
Page 17: Assembling Breathing Station
4.4 Assembling breathing station Disposable inhalation mask and nasal cannula The disposable nasal cannula and inhalation masks with or without economy bag are made of transparent plastic. For hygiene reasons, they may only be used for one patient. 1. If necessary, screw union nut supplied onto the corresponding threaded connection of the Oxygen MODULE or the Combi MODULE. -
Page 18: Assembling The Omnivac Secretion Aspiration System
2. Screw the top part of the bubble humidifier onto the corresponding threaded connection of the Oxygen MODULE or the Combi MODULE by hand. 3. Fill the bottom part up to the mark with distilled water (aqua dest.) and screw the tank back on. 4. - Page 19 2. Put both aspirate bottles in the holder. 3. Connect the bottles and the module with the appropriate tubes. Ensure that the bottle with the overflow cutout is connected to the module first. We recommend fitting a hydrophobic bacteria filter WM 22291 for the exhaust air to prevent secretion and bacteria penetrating the module.
-
Page 20: Assembling The Cpap Valve
4.7 Assembling the CPAP valve 1. Connect the CPAP valve to the CPAP module using the connecting tubes. Ensure that the tubes are guided cleanly so that they do not impede one another. 2. Perform a function check (see “12.6 Checking oxygen flow”... -

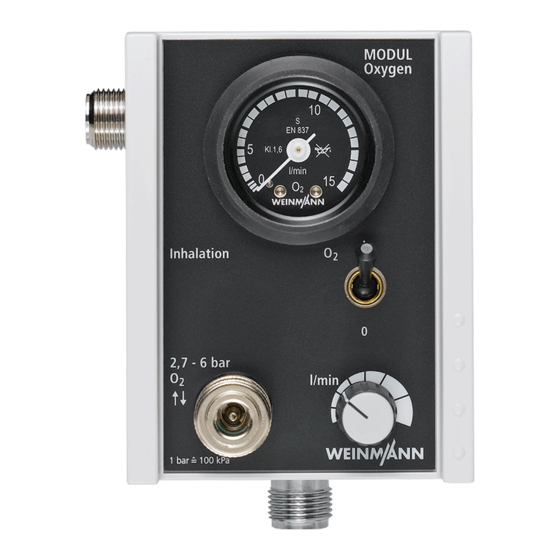

Page 21: Oxygen Module
5. Oxygen MODULE 5.1 Inhalation function You can perform oxygen inhalation using the Oxygen MODULE. Conditions of use Oxygen inhalation only makes sense in emergency patients who are still breathing spontaneously. This is the case with breathing disorders, for example. In the event of respiratory failure, inhalation of oxygen is by no means adequate and artificial ventilation will be required here. -
Page 22: Operation
5.2 Operation Oxygen supply 1. Open the oxygen supply valve . The slowly contents pressure gauge now shows cylinder pressure. 2. Calculate remaining operating time, if appropriate (see “Calculating filling level” on page 43). Method 1. Switch on oxygen inhalation at toggle switch MODUL Oxygen 2. -
Page 23: Stop Inhalation
5.3 Stop inhalation 1. Check the oxygen reserve at the contents pressure gauge of the pressure reducer. 2. Close the oxygen supply valve and wait until the system is depressurized. 3. Turn dial to the left-hand stop (to “zero”). This prevents the pressure gauge being damaged by hammering when the device is switched back 4. -
Page 24: Suction Module
6. Suction MODULE 6.1 Vacuum/aspiration function The Suction MODULE is used to aspirate accumulations of blood, secretions or pieces of food from the oral cavity, nasopharyngeal cavity and the bronchial system. The OMNIVAC secretion aspiration system is available as an accessory, complete with tubes and two aspirate bottles (see “10. -
Page 25: Stop Aspiration
Method 1. Switch on the vacuum at toggle switch MODUL Suction 2. Close the fingertip regulator and hold the opening of the end-piece closed so that no more air can flow through it. 3. Regulate the vacuum using dial . There are three revolutions of the dial between minimum and maximum. -
Page 26: Combi Module
7. Combi MODULE You can use the Combi MODULE to perform oxygen inhalation or aspiration. Oxygen inhalation and aspiration may not be used simultaneously, otherwise oxygen output is reduced during inhalation. 7.1 Inhalation function Conditions of use Oxygen inhalation only makes sense in emergency patients who are still breathing spontaneously. -
Page 27: Vacuum/Aspiration Function
7.2 Vacuum/aspiration function The Combi MODULE can also be used to aspirate accumulations of blood, secretions or bits of food from the oral cavity, the nasopharyngeal cavity and the bronchial system. The OMNIVAC secretion aspiration system, complete with tubes, is available as an accessory. There is an example in the adjacent picture. -
Page 28: Stop Inhalation
Method 1. Switch on oxygen inhalation at toggle switch MODUL Combi 2. Regulate the quantity of oxygen coming out infinitely between 0 and 15 l/min using dial This corresponds to three revolutions of the dial. The value set is displayed on pressure gauge Determine oxygen concentration if necessary Medium (see “16.1 Determining oxygen concentration”... -
Page 29: Aspiration - Operation
5. Clean and disinfect/sterilize the device and the device parts (see “11. Hygiene treatment” on page 39). 6. Perform a function check (see “12. Function check” on page 42). 7.5 Aspiration - operation Oxygen supply 1. Open the oxygen supply valve . -
Page 30: Stop Aspiration
7.6 Stop aspiration 1. Check the oxygen reserve at the contents pressure gauge of the pressure reducer. 2. Close the oxygen supply valve and wait until the system is depressurized. 3. Turn dial to the left-hand stop (to “zero”). This prevents the pressure gauge being damaged by hammering when the device is switched back 4. -
Page 31: Interface Module
8. Interface MODULE 8.1 Coupling/oxygen connection function The Interface MODULE allows oxygen (2.7 – 6 bar) to be tapped off or additional oxygen to be fed in from an external supply. The Interface MODULE serves as an interface - to the central oxygen supply, for example. -
Page 32: Cpap Module
9. CPAP MODULE 9.1 CPAP function You can use the CPAP MODULE to perform CPAP therapy in conjunction with a CPAP valve approved by WEINMANN Emergency. Conditions of use Therapy may only be carried out on emergency patients who are breathing spontaneously. - Page 33 Method 1. Switch on the oxygen supply to the CPAP valve MODUL by switching toggle switch CPAP 2. If oxygen escapes from the O outlet, switch it off by turning dial to the left until you feel it reach the stop. 3.
- Page 34 Stop CPAP therapy 1. Check the oxygen reserve at the contents pressure gauge of the pressure reducer. 2. Close the oxygen supply valve and wait until the system is depressurized. 3. Turn dial anti-clockwise until you feel it reach the stop. This will prevent the next patient inadvertently obtaining too high a CPAP pressure.
-
Page 35: Omnivac Secretion Aspiration System
10. OMNIVAC secretion aspiration system The OMNIVAC secretion aspiration system consists of one or two aspirate bottles and the necessary tubing. The aspirate bottles are available in capacities of 250 ml, 500 ml or 1000 ml. An overflow cutout in the lid of the bottle stops secretion penetrating the module by a ball floating on the surface of the secretion and blocking the outlet. -
Page 36: Starting Work
10.1 Starting work Cleaning will be facilitated if you pour about 50 ml of disinfectant or water into the aspirate bottle before you start. The aspirated matter is then less likely to adhere to the bottom of the bottle. 1. If necessary, adapt the end-piece of an Fingertip regulator aspirating catheter of a suitable size for tracheal Catheter... - Page 37 Important! Please ensure that the aspirate bottles are always upright during operation, otherwise the ball of the overflow cutout cannot reliably block the connection to the vacuum source. This could result in secretion getting into the vacuum source. For hygiene reasons, we therefore recommend using hydrophobic bacteria filter WM 22291.
-
Page 38: Stop Aspiration
Emptying the aspirate bottle When the aspirate bottle is full to the limit, you must interrupt the aspiration process and empty the aspirate bottle. Important! When taking off and emptying the aspirate bottle, please ensure that the lid does not accidentally come off the bottle and cause the contents to spill. -
Page 39: Hygiene Treatment
11. Hygiene treatment The modules and the accessories used must be subjected to a hygiene treatment after every use. After that, you should always perform a function check (see “12. Function check” on page 42). 11.1 Preparing the OMNIVAC secretion aspiration system Note When taking off and emptying aspirate bottles,... -
Page 40: Cleaning, Disinfecting And Sterilizing
11.2 Cleaning, disinfecting and sterilizing The individual parts can be cleaned, disinfected and sterilized as listed in the table below. Follow the instructions for use for the disinfectant used. We recommend TERRALIN. It is recommended that suitable gloves (e.g. household or disposable gloves) are used for disinfecting. -
Page 41: Assembling The Omnivac Secretion Aspiration System
Washing Parts Clean Disinfect Sterilize machine cycle Hot-steam In hot water with Immerse in Mask for inhalation, Washing cycle sterilization a mild household dilute solution reusable up to 95 °C up to 134 °C detergent CPAP valve Disposable item, re-use not permitted, replace for every patient (1) After disinfecting the parts, rinse them thoroughly in distilled water and then leave them to dry. -
Page 42: Function Check
12. Function check If you find any faults or deviations from specified values during the function check, you may not use the modules or OMNIVAC again until the faults have been remedied. We recommend that you always keep in stock: •... -
Page 43: Check Filling
12.2 Check filling Open the oxygen supply valve . You can now slowly read off cylinder pressure at the pressure gauge of the pressure reducer. A display of 200 bar, for example, means that the cylinder is full, whilst at 100 bar, it is still half full. -
Page 44: Test Leaktightness
Calculating operating time for CPAP therapy Example: reserve = 1000 l; setting for CPAP 5 hPa = O consumption of 20 l/min: 1000 l Operating time for CPAP therapy (min) = = 50 min 20 l/min Consumption with Set CPAP therapy pressure Boussignac CPAP valve for [hPa] CPAP MODULE [l/min]... -
Page 45: Checking Inhalation
4. Check that all screwed connections and tube connections are secure. Tighten up screwed connections if necessary. by hand Under no circumstances may you tighten up the screwed connections with a spanner or other tools. 5. Open the oxygen supply valve slowly 6. -
Page 46: Checking Aspiration
– 0.5 bar (at 4.5 bar O inlet pressure) and can- ≥ not be read off directly on the pressure gauge. You should therefore plug WEINMANN Emergency test pressure gauge WM 15294 onto connection for the vacuum 4. Read off the value which becomes constant on the pressure gauge (Suction MODULE) or on the test pressure gauge (Combi MODULE). -
Page 47: Checking Oxygen Flow
If this value is not reached, the connections must be checked for leaks. 12.6 Checking oxygen flow 1. Switch on the MODULE. Required for the CPAP MODULE 2. Use the dial to open the oxygen supply. The oxygen must be felt to come out at the CPAP valve connection. -
Page 48: Troubleshooting
13. Troubleshooting Fault Cause of fault Remedy Find and eliminate leak (see Unusually high oxygen Leak in system “12.3 Test leaktightness” on consumption page 44) Replace oxygen cylinder (see Oxygen cylinder empty “4.2 Connecting oxygen supply” on page 14) Check assembly (see “4.1 Module incorrectly assembled Assembling the modules”... -
Page 49: Adjusting Pressure Gauge
Fault Cause of fault Remedy Needle of pressure Adjust pressure gauge needle Pressure gauge needs adjusting gauge not at zero (see following section) 13.1 Adjusting pressure gauge If the needle of the pressure gauge does not show zero when at rest (device switched off and oxygen cylinder connected), perform the steps which follow. -
Page 50: Servicing
We recommend having maintenance measures such as servicing or repair work carried out by the manufacturer, WEINMANN Emergency, or by professionals expressly authorized by the manufacturer to do this. The devices should be serviced every 4 years. The device should be cleaned and disinfected beforehand(see “11. -
Page 51: Disposal
Take the following into account. • Visual inspection: – mechanical damage – labeling of components • Accuracy of the pressure display • Leaktightness of system • Oxygen output and aspiration performance • Replace wear parts, compulsory change parts. You should also check intervals for the regular function check (see “12. -
Page 52: Scope Of Supply
15. Scope of supply 15.1 Standard scope of supply 1. Oxygen MODULE 22200 consisting of: – module for oxygen inhalation – instructions for use 16201 – set of assembly elements 15288 – connecting bushing with union nut – G 3/8 (up to year of manufacture 2009) 1470 –... - Page 53 – UNF (from year of manufacture 2010) 31122 – test pressure gauge set for vacuum 15294 5. Combi MODULE with angled connecting bushing 22370 consisting of: – module for oxygen inhalation and for vacuum – instructions for use 16201 – set of assembly elements 15288 –...
-
Page 54: Accessories
4. WEINMANN Emergency pressure reducer with inhalation option WM 30851 5. WEINMANN Emergency pressure tube for 10 bar, with connecting bushing and union nut G 3/8, on the other side optionally union nut G 3/8 or connector for oxygen supply 6. - Page 55 3. Bracket for aspirate bottle 2245 4. Set of bacteria filters, 1x 22291 5. Set of bacteria filters, 10x 15237 6. Set of bacteria filters, 50x 15238 7. Aspiration catheter CH 6, Ø 2 mm 5156 8. Aspiration catheter CH 10, Ø 3 mm 5158 9.
-
Page 56: Replacement Parts
20702 11. Retaining ring for head attachment 20701 12. Pressure gauge test set 15665 15.3 Replacement parts 1. Seal for WEINMANN Emergency tube WM 1145/31 2. Seal for plug connection WM 1145/68 3. Blind plug for housing 22229 4. Protective ring for plug connection WM 1145/84 5. -
Page 57: Technical Data
16. Technical data Oxygen Suction Combi Interface CPAP MODULE MODULE MODULE MODULE MODULE Dimensions 100 x 130 x 90 100 x 172 x 90 100 x 145 x 90 W x H x D in mm Weight 0.9 kg 0.9 kg 0.95 kg 0.65 kg 0.9 kg... -
Page 58: Determining Oxygen Concentration
16.1 Determining oxygen concentration Oxygen and Combi MODULES Oxygen concentration depends on the flow rate of the oxygen and on the patient’s respiratory minute volume. You can determine the relevant reference values from the diagram below. Flow rate in l/min Example Set flow rate is 6 l/min, respiratory minute volume is 10 l/min, breathing station with economy bag in... - Page 59 CPAP MODULE Oxygen concentration depends on the following factors: – respiratory frequency – tidal volume – CPAP The corresponding reference values can be determined from the diagrams below. CPAP = 5 hPa Tidal volume Respiratory frequency in 1/min Technical data...
- Page 60 CPAP = 7.5 hPa Tidal volume Respiratory frequency in 1/min CPAP = 10 hPa Tidal volume Respiratory frequency in 1/min Technical data...
-
Page 61: External Oxygen Output
The following outputs apply to oxygen output for other devices. Interface MODULE Inlet Oxygen output 2.7 bar dynamic back min. 70 l/min pressure at 80 l/min of WEINMANN Emergency pressure reducer min. 100 l/min WM 1102/106 of WEINMANN Emergency pressure reducer min. 90 l/min WM 30301... -
Page 62: Oxygen Output, Inhalation
16.3 Oxygen output, inhalation Inlet pressure 2.7 bar 3.0 bar 3.5 bar 6.0 bar in operation 11 l/min 12 l/min 15 l/min 15 l/min Max. O output Tolerance ±10 % 16.4 Aspiration performance Maximum performance Maximum performance for the Combi MODULE and the Suction MODULE depend on the inlet pressure of the oxygen supply in operation. - Page 63 Suction MODULE aspiration performance The aspiration performance of the Suction MODULE at any particular time depends on the vacuum set. The measurements relate to an aspirate bottle with a capacity of 2 liters. Required Aspiration inlet pressure Vacuum set performance consumption - 0.2 bar 5.3 l/min...
-
Page 64: Warranty
17. Warranty WEINMANN Emergency gives the customer a limited manufacturer warranty on new original WEINMANN Emergency products and any replacement part fitted by WEINMANN Emergency in accordance with the warranty conditions applicable to the product in question and in accordance with the warranty periods from date of purchase as listed below. -
Page 65: Declaration Of Conformity
GmbH + Co. KG declares herewith that the product complies fully with the respective regulations of the Medical Device Directive 93/42/EEC. The unabridged text of the Declaration of Conformity can be found on our website at www.weinmann-emergency.com Declaration of conformity... - Page 68 Manufacturer Center for Production, Logistics, Service WEINMANN Emergency WEINMANN Emergency Medical Technology GmbH + Co. KG Medical Technology GmbH + Co. KG Frohbösestraße 12 Siebenstücken 14 22525 Hamburg 24558 Henstedt-Ulzburg GERMANY GERMANY T: +49 40 88 18 96-120 E: customerservice@weinmann-emt.de...
