- 3.2 -
! When entering numeric data (for example the number of sensors) it allows you
to increase the numeric value of the field. If it is held down continuously the
numeric field increments more rapidly.

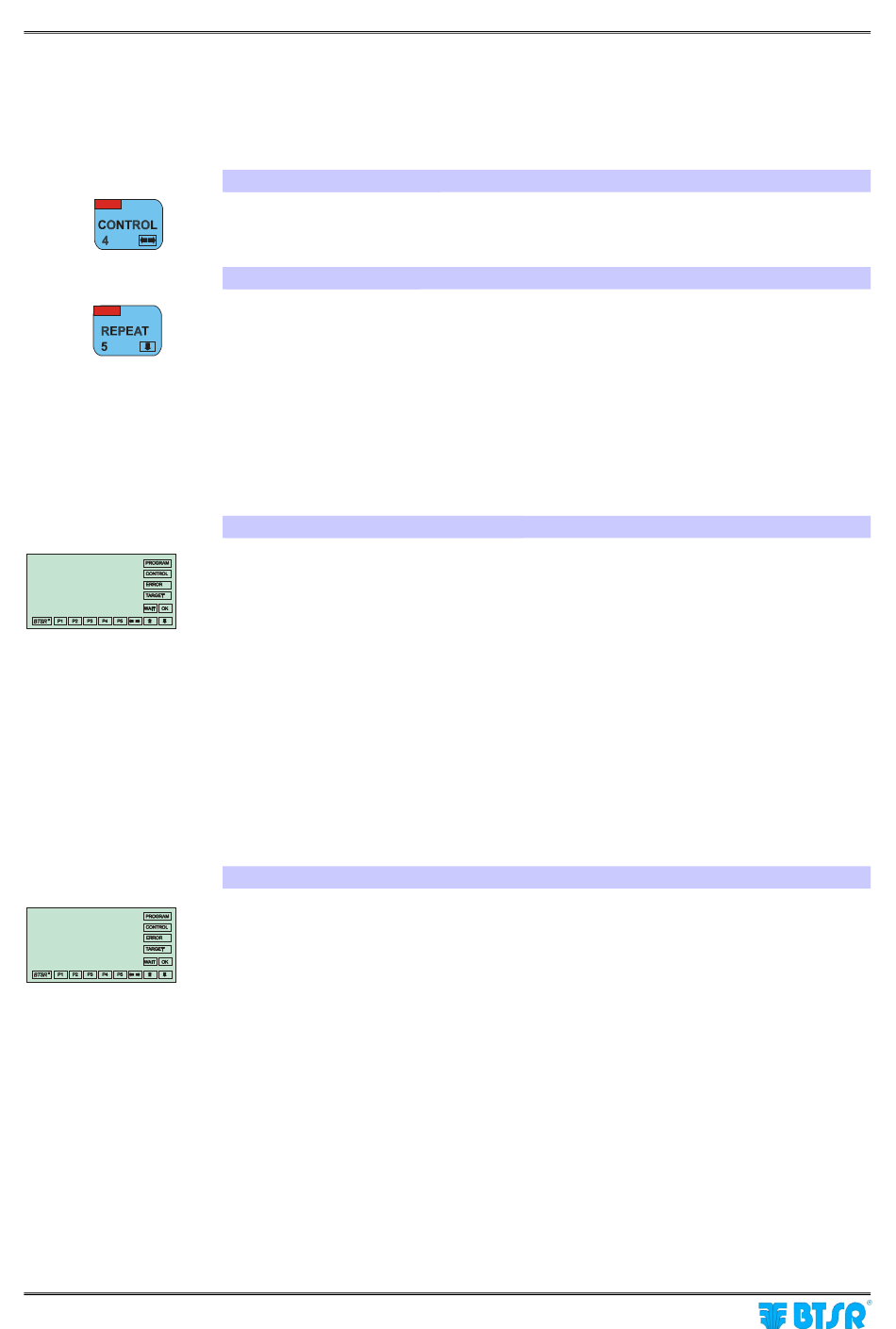

4. CONTROL Button
During parameter programming, it allows changing the position of the cursor.
5. REPEAT button
!
During navigation within the menus this button allows you to select the
previous option within the same menu level; this button has a cyclical function
in the sense that when the first choice of menu is selected it returns to the last
option of the same menu.
! When entering numeric data (for example the number of sensors) it allows you
to decrease the numeric value of the field. If it is held down continuously the
numeric field decrements more rapidly.
6. Operator's Message Area:
The menu choices, or settings for the selected function during programming or
setup phase of the system as well as service messages are displayed with large size
fonts (1.5 x 0.8 cm), easy to read even from a distance, when the system is running
normally. In other words, it shows all the necessary information to guide the
operator step by step through the programming phase and interactive management
of the system.
When the displayed lines refer to the menu items, the selected one is indicated with
>
the symbol .
The presence of a flashing cursor
can enter an alphanumeric character or variable setting which will replace the
value currently displayed.
7. Operating Status Signaling Area
To enable a more direct and evident interpretation of the operating context in
which you are working, on the right hand side and bottom side of the operator
message area, 16 rectangular boxes (labels) are implemented. They display the
operating status of the system, and the hierarchic level of the menu at which you
are operating.
More specifically, the PROGRAM label indicates that you are operating in one of
the following modes: configuration, programming or data transmission to the
sensors.
The CONTROL label indicates that the system is operating normally with all
monitor functions enabled, and according to the parameters currently set in the
system. In this phase the message display indicates MACHINE >>>>>.
The flashing PROGRAM and ERROR labels indicate an error occurred during
the system programming operation (inconsistent parameters, etc.).
SMART KNIT
(---)
indicates the position where the operator
