Operation

SMART KNIT Terminal Features

As for all SMART BTSR systems, the operation of SMART KNIT system is
controlled by just 5 membrane buttons and it is monitored by a LCD graphic
display, which guides the operator through all programming and administration
phases of the system, by means of straight-forward messages which can be
understood clearly and immediately.
On the top left hand side of each button there is a red LED, which indicates that
the button is pressed down.
The display screen includes two separate zones used respectively for displaying
messages to the operator ! during the system programming and administration
phases and for signaling the operating status and levels in which the system is
.
working "

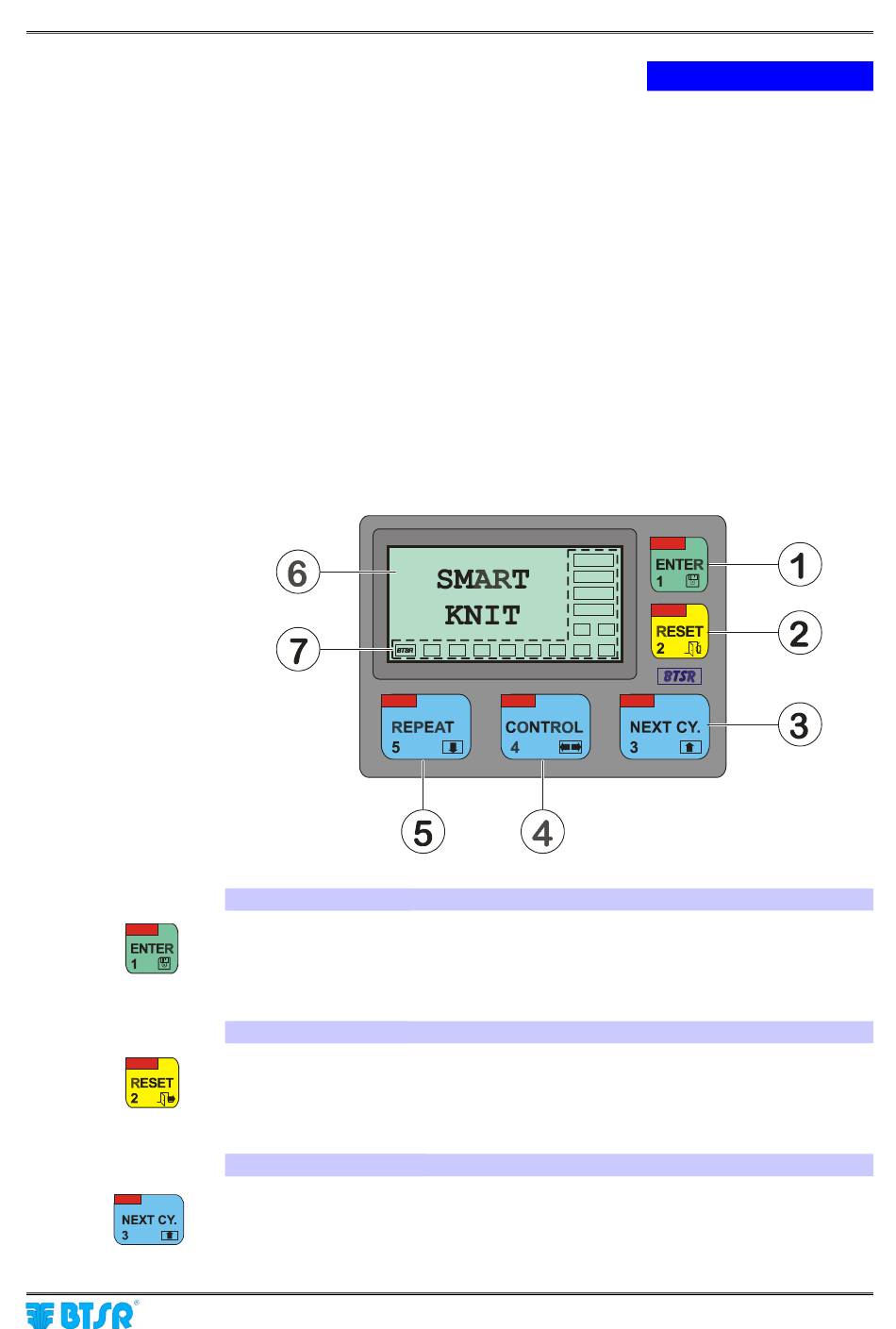

The following picture shows the location of the buttons and display zones that
constitute the control panel of the system.
1. ENTER button
It allows you to activate the function selected from the menu (indicated by the
>
symbol ), to move to the programming of the displayed function or to confirm the
setting value displayed on the messages screen.
2. RESET button
It allows you to return to the previous level of the menu (next upper level), without
continuing with the currently selected function, or without confirming the value of
a setting entered by mistake.
3. NEXT CY button
! During navigation within the menus this button allows you to select the next
option within the same menu level; this button has a cyclical function in the
sense that when the last choice from the menu has been selected, it returns to
the first option of the same menu.
