8. Hold bottom part of the housing
circuit boards in one hand, turn bottom part of
the housing over and screw in the four
24
hexagon screws .
50
Caution!
When fitting the power supply connection, the
Capno connection adapter and the connection
for the BiCheck flow sensor, ensure that the
connections are correctly positioned in the
corresponding ducts in the housing (groove
and spring), otherwise the connections or the
bottom part of the housing may be damaged.
9. Push power supply connection
corresponding bore of bottom of the housing
and screw it up with a hexagon nut
24
10. Push Capno connection adapter
corresponding bore of bottom part of the
housing and screw it up with a nut
24
described in Section "7.4 Replace the Capno
connecting adapter" on page 24.
11. Push BiCheck flow sensor connection
corresponding bore in the bottom of the
housing and screw it up with hexagon nut

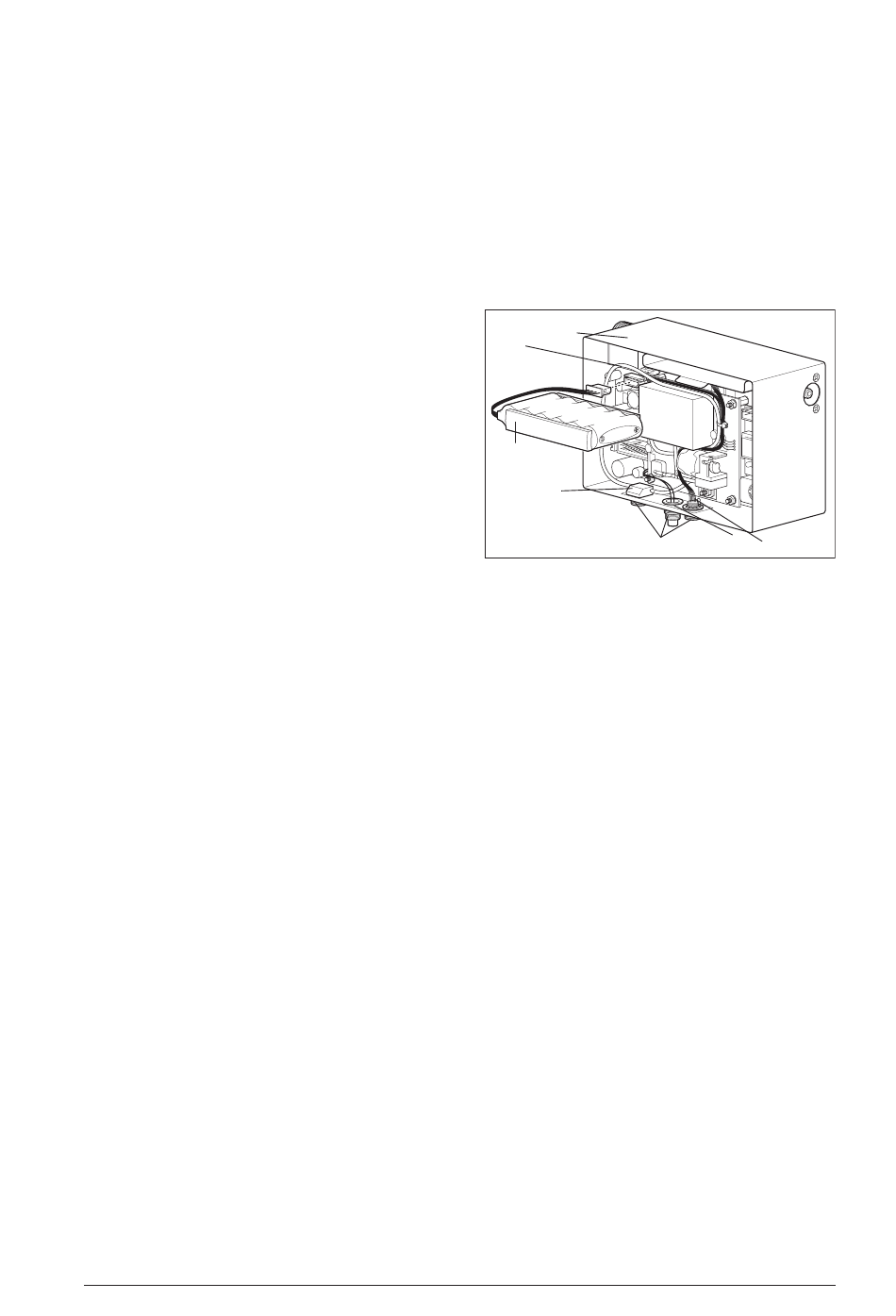

12. Put battery in the bracket in the bottom of
30
the housing and connect the connector of
battery to connection
30
board.
13. Close the device (see "7.3 Close the device"
on page 23).
14. Test the device (see "4. Test the device" on
page 8).
Note
Return the faulty circuit boards to
WEINMANN.
and the
24
into the
9
.
35
into the
43
as
35
into the
8
.
35
on the circuit
X1
24
X1
30
43
35
