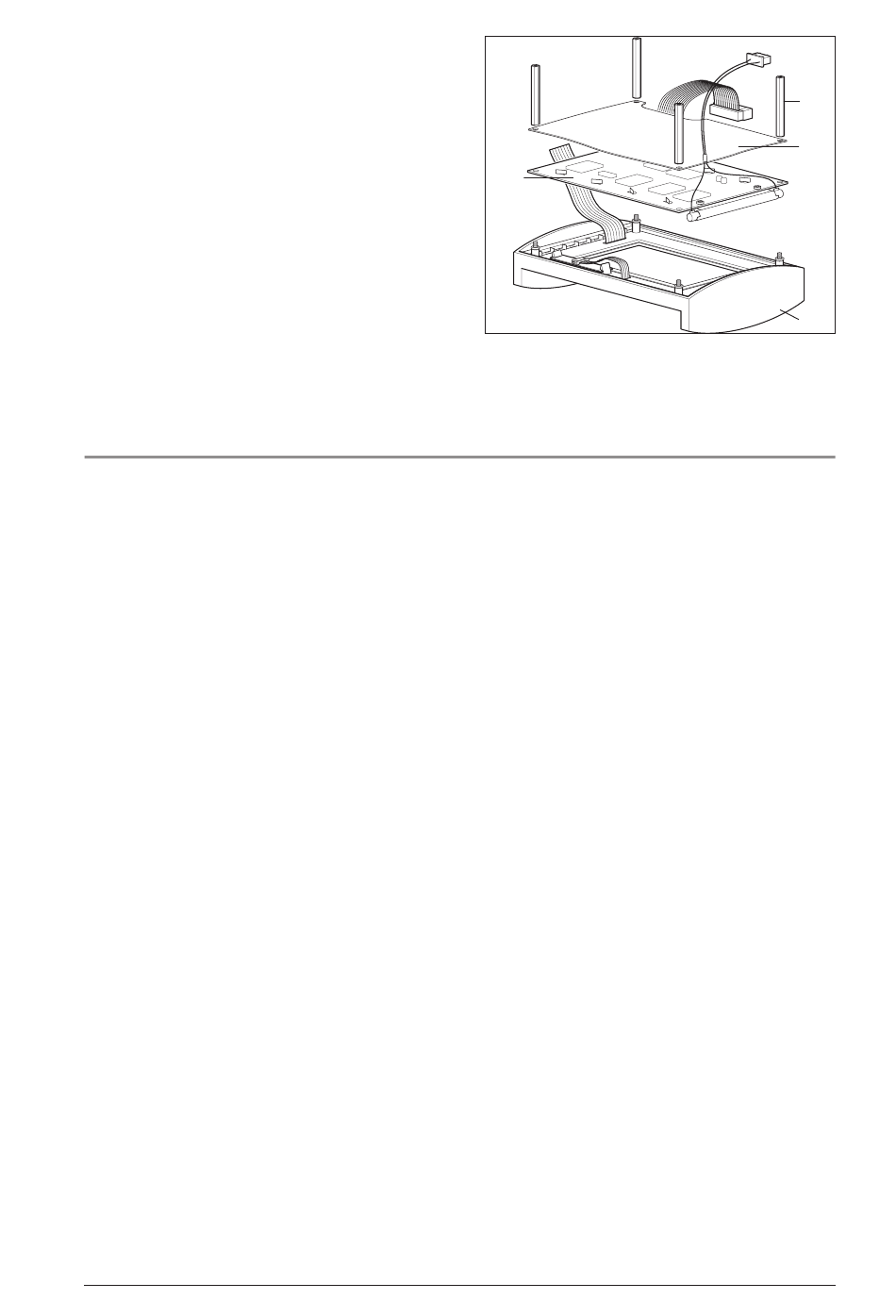

10. Put display circuit board
housing
. When putting it in, ensure that the
23
washers
on the screws remain pushed on.
39
11. Place top part of insulating cover
circuit board
.
38
12. Wet the first two turns of the threads on the four
spacer bolts with Loctite WM 14920.
13. Screw on the four spacer bolts
14. Close the device (see "7.3 Close the device"
on page 23).
15. Test the device (see "4. Test the device" on
page 8).
7.11 Replace top part of housing
Materials and tools required
•
ESD workstation
•
Slot screwdriver, insulated, size 1
•
Phillips screwdriver, size 2
•
Ring spanner 14 mm
•
Open-ended spanner 15 mm
•
Tubular hexagon box wrench 5.5 mm
1. Open the device (see "7.2 Open the device"
on page 22).
2. Remove the display circuit board and the
infrared circuit board (see "7.9 Replace
display circuit board" on page 31 and "7.10
Replace infrared circuit board" on page 32).
3. Pick up the new top part of the housing.
4. Fit the display circuit board in the new top part
of the housing (see "7.9 Replace display
circuit board" on page 31).
5. Fit the infrared circuit board in the new top part
of the housing (see "7.10 Replace infrared
circuit board" on page 32).
6. Close the device (see "7.3 Close the device"
on page 23).
7. Test the device (see "4. Test the device" on
page 8).
in top part of
38
on display
37
.
36
38
Repair information and repair instructions
36
37
23
33
