Summary of Contents for Weinmann ULM CASE III

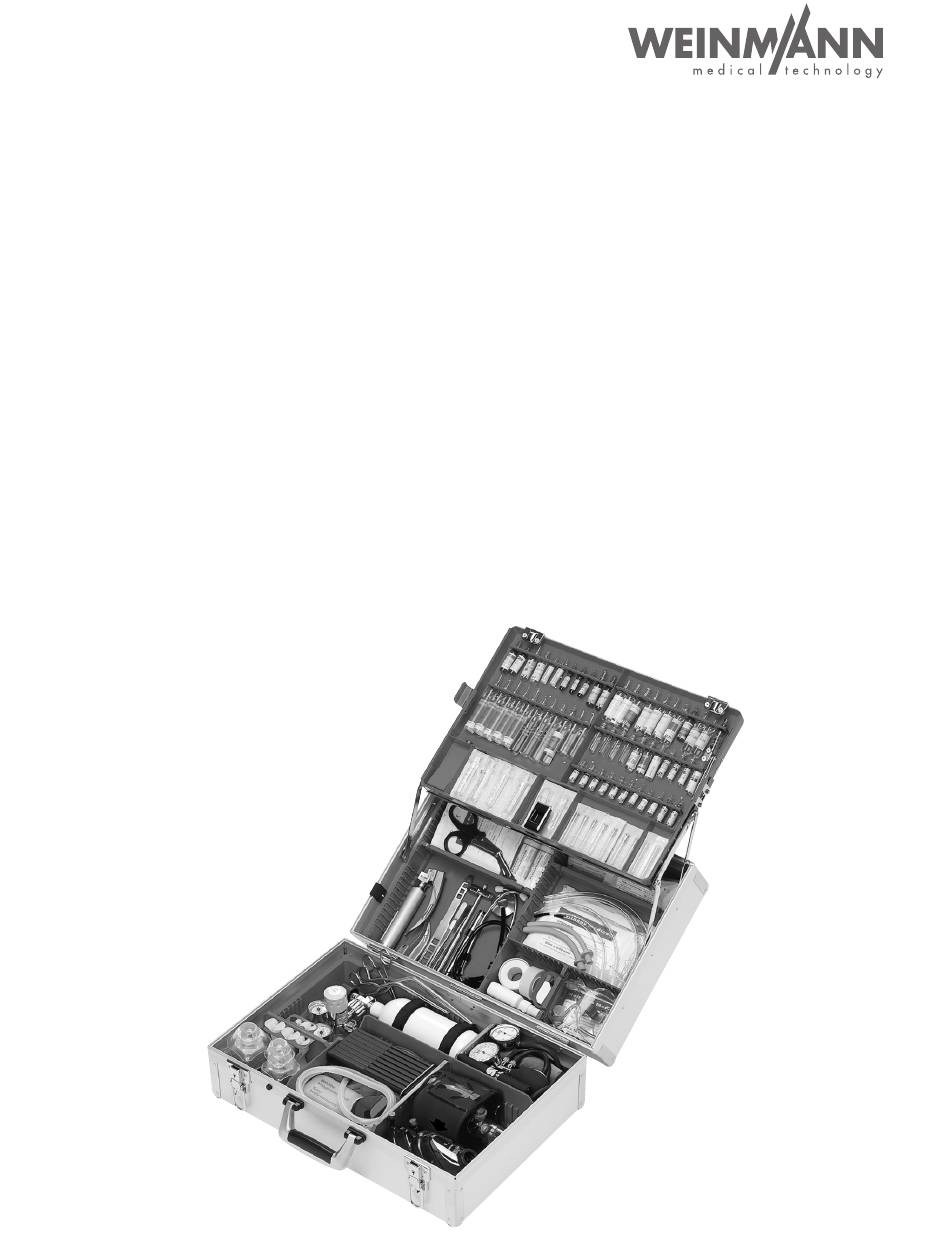

  • Page 1 The ULM CASE III Emergency Case Description and instructions for use...
  • Page 2: Table Of Contents

    Contents 1. Overview ......3 1.1 Special symbols on the device ... . 4 2.
  • Page 3: Overview

    1. Overview Legend Base of case Plug-in fastener Cover plate Corner of case Rubber tie Lock Case fastener Long top divider (246.5 mm) Holding device Case handle Container rack Lock Long base divider (211 mm) Socket Top of case Seal Spring steel sheets Top recess Medium base divider...
  • Page 4: Special Symbols On The Device

    1.1 Special symbols on the device Symbol Meaning ULM CASE III device information plate Serial number of device Year of manufacture CE marking Other markings Removing the bars EN Overview...
  • Page 5: Description

    2.2 Function The interior of the ULM CASE III can be subdivided to suit individual requirements using the variable dividers. Accessories, such as ampoule strips, ampoule pan- els, tube holders and oxygen cylinder clamp straps, offer further possibilities for individual outfitting.
  • Page 6 • The case is intended only for the designated purpose described. • If third-party items are used, functional failures may occur and fitness for use may be restricted. Biocompatibility requirements may also not be met. Please note that in such cases, any claim under warranty and liability will be voided if nei- ther the accessories nor genuine replacement parts recommended in the instructions for use...
  • Page 7: Use

    4. Use 4.1 Ampoule Tray After opening the case, loosen the rubber ties by lateral pressing the plug-in fastener. Now, hold the spring steel sheets and swing out the ampoule tray. To open the cover plate, move the fastener and turn up the cover plate until the holding device snaps in.
  • Page 8 The open cover plate is fi xed. To close it, release the holding device and close the cover plate until the fastener snaps in. The ampoule tray can be removed from the contain- er rack. For this, press the spring steel sheets until the seal is released and remove the tray.
  • Page 9: Dividers

    4.2 Dividers The case can be divided internally as required using the dividers. An example is shown on the folding page. When fitting the dividers, please ensure that: • they are positioned correctly as in figure • they are fitted perpendicularly into opposing grooves •...
  • Page 10: Ampoule Panels

    4.5 Ampoule Panels The “ampoule panels WM 8771” , available as ac- cessories, can be fitted as required in the top of the case simply by fitting the case top dividers in the ap- propriate position. The position of the ampoule strips on the ampoule panels can also be changed by loosening the fixings and relocating the ampoule strips as desired.
  • Page 11: Hygienic Preparation

    (e.g. household or dispos- able gloves) during disinfection procedures. Remove the dividers first. If the ULM CASE III is fitted with oxygen cylinders, use a clean, dry cloth or a cloth dampened with clean water to clean the outside of the fittings.
  • Page 12: Maintenance

    (see “6. Functional Control” on page 11). We recommend that maintenance work such as in- spections and repairs be performed only by the man- ufacturer, WEINMANN Emergency, or by qualified technicians expressly authorized by WEINMANN Emergency. 7.2 Disposal Do not dispose of the unit with domestic waste.
  • Page 13: Extent Of Supply

    8. Extent of Supply 8.1 Standard supply schedule ULM CASE III 8830 Case, fully assembled with: 1x Ampoule tray (incl. 2 ampoule strips) 8803 1x Base divider, long (211 mm) 8741 1x Base divider, medium, with 2 tube holders (147 mm)
  • Page 14 – Tubes 1071 – Clamps 1072 – Poison 1073 – Infant, red 1074 – Infant, green 1075 Wall mount 5605 Base divider, long (211 mm) 8741 Base divider, medium (147 mm) 8742 Base divider, short (121 mm) 8743 Top divider, long (246,5 mm) 8744 Top divider, short (105 mm) 8745...
  • Page 15 Case support, set of 2* 15149 Case hinge, set of 3* 15150 Case fastener, set of 2* 15151 Retaining clamp, set of 6* 15152 Case corner, set of 4* 15158 Cover plate* 15159 Holding sheet* 15160 Rubber tie* 15161 To change the following inserts, the entire case shell has to be dismantled.
  • Page 16: Technical Data

    9. Technical Data ULM CASE III Product class as per 93/42/EEC E DIN 13232 Standards met EN 1789 Dimensions 526 x 400 x 230 (WxHxD*) Weight, empty 8.3 kg Temperature range: – Operation –20 °C to +50 °C – Storage –30 °C to +70 °C...
  • Page 17: Warranty

    10. Warranty WEINMANN Emergency gives the customer a limited manufacturer warranty on new original WEINMANN Emergency products and any replacement part fitted by WEINMANN Emergency in accordance with the warranty conditions applicable to the product in question and in accordance with the warranty periods from date of purchase as listed below.
  • Page 20 Manufacturer Center for Production, Logistics, Service WEINMANN Emergency WEINMANN Emergency Medical Technology GmbH + Co. KG Medical Technology GmbH + Co. KG Frohbösestraße 12 Siebenstücken 14 22525 Hamburg 24558 Henstedt-Ulzburg GERMANY GERMANY T: +49 40 88 18 96-120 E: customerservice@weinmann-emt.de...
