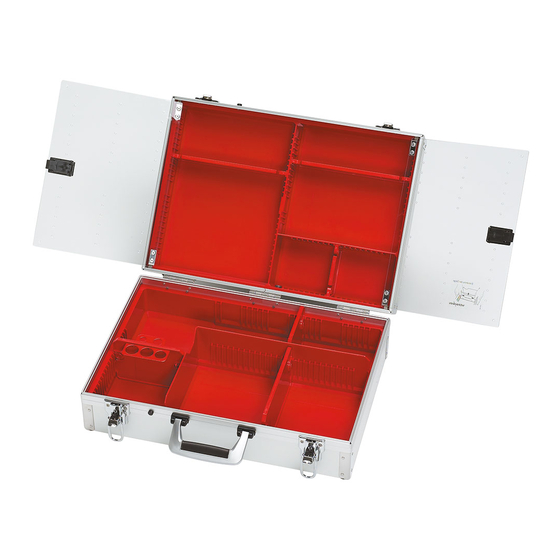

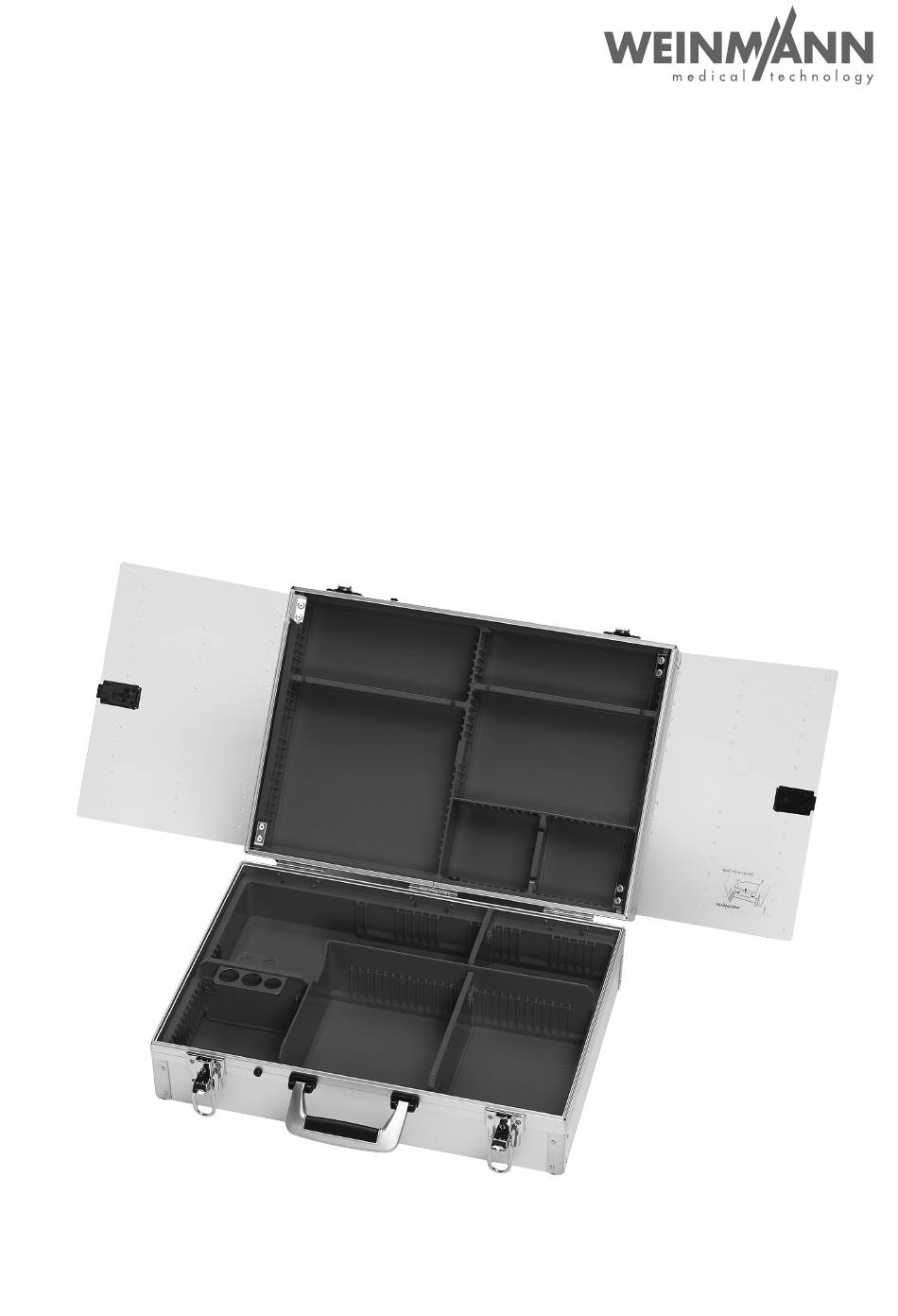

- Page 1 ULM CASE II Emergency Case Instructions for use...
-
Page 2: Table Of Contents
Contents Overview ................ 3 1.1 Special markings on the device ........4 Description ..............5 2.1 Intended purpose ............5 2.2 Function ..............5 Safety Instructions ............5 Use ................... 7 4.1 Dividers ..............7 4.2 Tube Holder ............... 8 4.3 Ampoule Strips ............ -
Page 3: Overview
1 Overview Legende 10 Bottom recess 18 Tube holder 1 Cover plate 11 Base of case a) Oropharyngeal tube, small 2 Long top divider (246,5 mm) 3 Short top divider (105 mm) 12 Corner of case b) Oropharyngeal tube, large 4 Case top 13 Case fastener 19 Lock... -
Page 4: Special Markings On The Device
1.1 Special markings on the device Symbol Meaning Device ID plate ULM CASE II Follow instructions for use. Other markings Removing the bars EN Overview... -
Page 5: Description
2.2 Function The interior of the ULM CASE II can be subdivided to suit individual requirements using the varia- ble dividers. Accessories, such as ampoule strips,... - Page 6 accessories nor genuine replacement parts re- commended in the instructions for use are used. • Ensure that spilled liquids, e.g. from ampoules, are removed immediately, otherwise they could destroy the backpack and injure the user. In this respect, comply with the warning and disposal instructions from the manufacturer concerned.
-
Page 7: Use
4 Use 4.1 Dividers The case can be divided internally as required using the dividers (7, 15 and 17). An example is shown in Legend. When fitting the dividers, please ensure that: • they are positioned correctly as • they are fitted perpendicularly into opposing grooves •... -
Page 8: Tube Holder
4.2 Tube Holder When the case is supplied, the tube holders are attached to the “medium base” divider (17). The tube holder can be moved to another divider in the base of the case by loosening the fixings and relocating the holder as required. 4.3 Ampoule Strips The ”ampoule strips WM 15140”... -
Page 9: Cylinder Clamp Straps
(e.g. household or disposa- ble gloves) are used for disinfecting. Remove the dividers first. If the ULM CASE II is fitted with oxygen cylinder, use a clean, dry cloth or a cloth dampened with clean water to clean the outside of the fittings. -
Page 10: Functional Control
Risk of infection due to contaminated parts during maintenance work! The device, accessories and other parts may be contaminated and infect technicians with bacte- ria and viruses. Parts sent in which are obviously contaminated will be disposed of by WEINMANN EN Functional Control... -
Page 11: Disposal
1. Remove parts 2. Clean and disinfect parts (“5 Hygienic preparation” on page 9). 3. Send parts to WEINMANN Emergency, or to a technician specifically authorized by WEINMANN Emergency. 7.3 Disposal Do not dispose of the therapy device in domestic waste. -
Page 12: Accessories And Spare Parts
8.2 Accessories and Spare Parts Standard symbol labels: Oxygen WM 0900 Put on protective gloves WM 0970 Dressing box WM 0971 Syringes WM 1040 WM 1041 Intubation WM 1042 Infusion WM 1043 CIRCULATION drugs WM 1044 RESPIRATION drugs WM 1045 Universal drugs WM 1046 Resuscitation... - Page 13 Holder for oropharyngeal tubes, large* (for adults, juveniles and children) WM 15143 Lock WM 15144 Case handle* WM 15145 Journal pins, set of 2* WM 15146 Seal, set of 2* WM 15147 Ampoule strip, set of 3 WM 15157 To replace the following fittings, the rivets of the parts needing replaced have to be bored out.
-
Page 14: Technical Data
WEINMANN Emergency gives the customer a limited manufacturer warranty on new original WEINMANN Emergency products and any replace- ment part fitted by WEINMANN Emergency in accordance with the warranty conditions applica- ble to the product in question and in accordance with the warranty periods from date of purchase as listed below. - Page 15 Product Warranty period WEINMANN Emergency devices 2 years including accessories (except masks) for oxygen medicine and emergency medicine Masks including accessories, rechar- 6 months geable batteries, batteries (unless quoted differently in the technical do- cumentation), sensors, tube systems Disposable products...
- Page 16 Center for Production, Logistics, Service Manufacturer WEINMANN Emergency WEINMANN Emergency Medical Technology GmbH + Co. KG Medical Technology GmbH + Co. KG Siebenstücken 14 Frohbösestraße 12 24558 Henstedt-Ulzburg 22525 Hamburg GERMANY GERMANY T: +49 40 88 18 96-120 E: customerservice@weinmann-emt.de...
