1
2

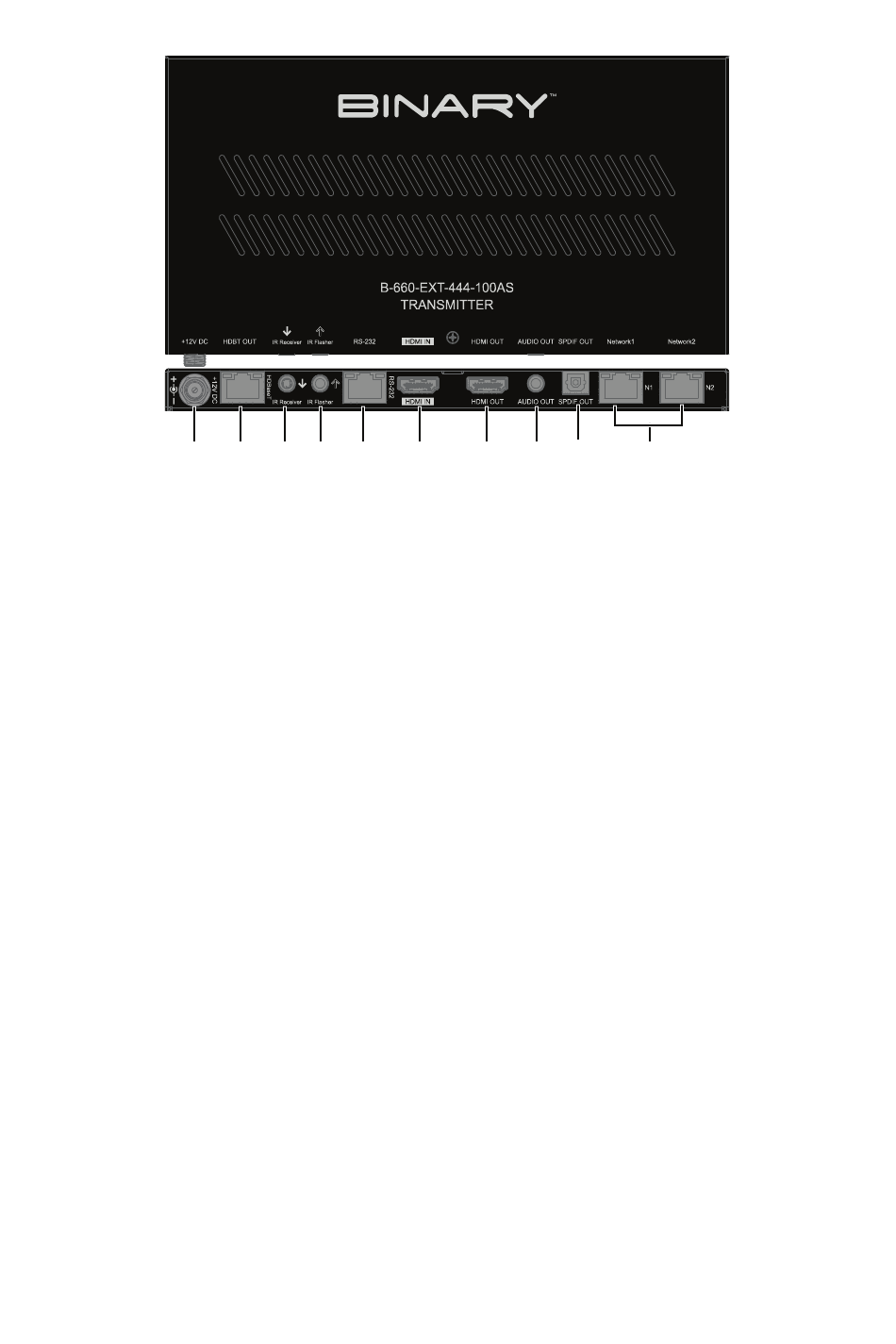

1. +12V DC
Connect the 12V power cord provided.
2. HDBT OUT
Connect to the receiver via a Cat 5e/6/6a/7 cable.
3. IR Receiver
Connect to an IR receiver cable.
4. IR Flasher
Connect to an IR emitter cable.
5. RS-232
RJ45 port. Connect to a RS-232 control device such as a control system for RS-232 pass-
through or a PC for firmware update.
6. HDMI IN
Connect to an HDMI source device.
7. HDMI OUT
Connect to an HDMI display device.
8. AUDIO OUT
3.5mm analog audio out, HDMI IN de-embedding, connect to an audio system.
9. SPDIF OUT
TOSLINK connector, connect to an audio system such as an AV receiver.
10. Network 1&2
Connect to internet devices or to the internet. These two ports share the same built-in
switch, so when one of the network ports is connected to an Ethernet switch, the other port
is prohibited to connect to the same switch to avoid network loops.
Rear
3
4
5
6
7
9
7
8
10
