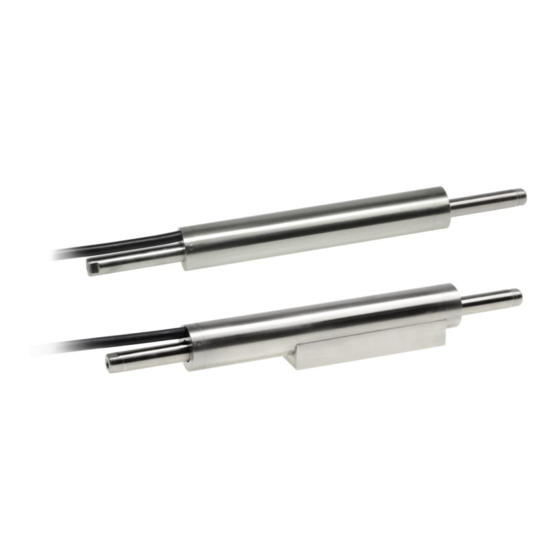

- Page 1 Installation Guide Linear Motors P01-23-HP-SSCP NTI AG / LinMot Dok-Nr. 0185-0136-E_1V0_IG_Linear_Motors_P01-23-HP-SSCP...
-
Page 2: Table Of Contents
Maintenance of Linear Motors ......................20 6.2.1 Maintenance Schedule ........................ 20 6.2.2 Cleaning ............................20 Cleaning Agent / Lubricant ......................20 6.2.3 «Wash-Down» Advice ..........................20 Storage, Transport, Installation Altitude ....................21 Dimensions ............................. 21 Stator ............................... 21 Seite 2 / 30 P01-23-HP-SSCP NTI AG / LinMot... - Page 3 9.1.5 PS01-23x160H-HP-SSCP-R20 ....................23 9.1.6 PS01-23x160H-HP-SSCP-G02-R20 ................... 24 9.1.7 PS01-23x160H-HP-SSCP-R150 ....................24 9.1.8 PS01-23x160H-HP-SSCP-G02-R150 ..................25 Slider ..............................25 Declaration of Conformity and CE-marking ..................27 CB Test Certificate ..........................28 NTI AG / LinMot P01-23-HP-SSCP Seite 3 / 30...
-
Page 4: General Information
1.4 Liability NTI AG (as manufacturer of LinMot and MagSpring products) excludes all liability for damages and expenses caused by incorrect use of the products. This also applies to false applications, which are caused by NTI AG's own data and notes, for example in the course of sales, support or application activities. -
Page 5: Safety Instructions
Before working, make sure that there are no high voltages. Fast-moving Machine Parts The sliders of LinMot linear motors are fast-moving machine parts. All necessary precautions must be taken to prevent persons approaching the moving elements during operation (provide covers, guards, etc.). - Page 6 Linear motor sliders consist of a high-precision, thin-walled stainless steel tube in which the neodymium magnets are housed. The LinMot sliders should be handled with care. Avoid contact with other sliders or iron parts as this can damage the magnets and the slider surface.
-
Page 7: Installation Instructions
The grease can be applied by hand or with a soft paper towel. Always observe the specified grease quantity. Over lubrication leads to a gumming of the grease, which appears particularly at higher operating temperatures! NTI AG / LinMot P01-23-HP-SSCP Seite 7 / 30... -
Page 8: Mounting The Stator
The stator can be mounted vertically and horizontally using the threaded holes provided. Both mounting options are shown below. 3.3.1 Vertical Mounting of the Stator Mounting using the threaded holes on the front side. See thread details in chapter 9 "Dimensions". Seite 8 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 9: Horizontal Stator Mounting
When attaching the load, the wrench for tightening the load must be used only on the load- facing side of the slider. Avoid torsional stress on slider (note the following figures). NTI AG / LinMot P01-23-HP-SSCP Seite 9 / 30... -
Page 10: Moving Slider" Installation
If a mechanical end stop at the back end of the slider is required, make sure that the stator cable is not kinked during operation. Seite 10 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 11: Minimum Distance From Slider
Minimum distance from slider surface Minimum distance from slider surface to Motor to ferromagnetic parts non-ferromagnetic metallic parts (iron, steel, etc.) (aluminum, bronze, stainless steel, etc.) P01-23x… 10 mm 5 mm NTI AG / LinMot P01-23-HP-SSCP Seite 11 / 30... -
Page 12: Material Data
Stainless steel 1.4404 / AISI 316L Stator connector housing (Statorvariant …R150) Steel nickel-plated Slider tube HP Standard Stainless steel 1.4301 / AISI 304 Slider tube HP HCR Stainless steel 1.4404 / AISI 316L Seite 12 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 13: Electrical Connection
4.1 Motor Cable Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 14: Technical Data Of Extension Cables
Dimensions and tightening torque are shown in the following illustrations. 4.2.1 IP Class IP67 R-Connector Material: Nickel-plated Max. torque: 0.6 Nm Note: This cable connector is used with the assembled extension cables for the stators with end designation R150. Seite 14 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 15: Ip Class Ip69K
4.2.3 Pin Assignment Linear Motor Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 16: Accessories
Note: The usual standard cables, which are used for stationary installation, are also available on request. In contrast to the IP 69k cables listed above, the standard cables meet the IP67 protection class. Seite 16 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 17: Slider Mounting Kits
It also helps to compensate for radial and angle offset. Material Spherical washer / conical seat: case hardened steel Item Item No. Slider Thread PLF01-12-Ni 0150-3573 12mm 5.2mm 6.0mm 10.5mm 3.2mm (Nickel-plated) (0.20in) (0.24in) (0.41in) (0.13in) NTI AG / LinMot P01-23-HP-SSCP Seite 17 / 30... -
Page 18: Maintenance And Test Instructions
Temp. Sensor / GND Black / Brown Pin E / Pin B 10 k Phase / GND Pin 1,2,3,4 / Pin B >20 M All Pin / Shield Pin 1-E / Housing >20 M Seite 18 / 30 P01-23-HP-SSCP NTI AG / LinMot... - Page 19 Temp. Sensor / GND Black / Brown Pin E / Pin B 10 k Phase / GND Pin 1,2,3,4 / Pin B >20 M All Pin / Shield Pin 1-E / Housing >20 M NTI AG / LinMot P01-23-HP-SSCP Seite 19 / 30...
-
Page 20: Maintenance Of Linear Motors
Finally, grease the slider according to paragraph 3.2 "Assembly of the linear motor". 6.2.3 Cleaning Agent / Lubricant All stainless steel motors from LinMot have an IP69 protection class. They can be cleaned with the usual cleaning agents, in the usual concentration and quantity as used in the food and pharmaceutical industry. If necessary, compatibility with the bearing material (PEEK / PPS) must be checked. -
Page 21: Storage, Transport, Installation Altitude
• Sliders are to be stored and transported only in the plastic containers (with cardboard inlay) provided for this purpose, or already installed and secured in LinMot P stators. • Remove the slider from this plastic containers only for assembling. -
Page 22: Ps01-23X80F-Hp-Sscp-G02-R20
Installation Guide Linear Motors 9.1.2 PS01-23x80F-HP-SSCP-G02-R20 in mm 9.1.3 PS01-23x80F-HP-SSCP-R150 in mm Seite 22 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 23: Ps01-23X80F-Hp-Sscp-G02-R150
Installation Guide Linear Motors 9.1.4 PS01-23x80F-HP-SSCP-G02-R150 in mm 9.1.5 PS01-23x160H-HP-SSCP-R20 in mm NTI AG / LinMot P01-23-HP-SSCP Seite 23 / 30... -
Page 24: Ps01-23X160H-Hp-Sscp-G02-R20
Installation Guide Linear Motors 9.1.6 PS01-23x160H-HP-SSCP-G02-R20 in mm 9.1.7 PS01-23x160H-HP-SSCP-R150 in mm Seite 24 / 30 P01-23-HP-SSCP NTI AG / LinMot... -
Page 25: Ps01-23X160H-Hp-Sscp-G02-R150
Sliders of the HCR series ("high corrosion resistant") are made of stainless steel 1.4404 - chrome-nickel-molybdenum (AISI 316L). Their use is particularly recommended in environments with a high chloride content at temperatures above 60°C. NTI AG / LinMot P01-23-HP-SSCP Seite 25 / 30... - Page 26 0150-4269 PL01-12x480/440-HP-W01 Slider 'High Performance' HCR 0150-4270 PL01-12x580/540-HP-W01 Slider 'High Performance' HCR 0150-4271 PL01-12x690/650-HP-W01 Slider 'High Performance' HCR 0150-4522 PL01-12x760/720-HP-W01 Slider 'High Performance' HCR 0150-4272 PL01-12x850/810-HP-W01 Slider 'High Performance' HCR 0150-4273 Seite 26 / 30 P01-23-HP-SSCP NTI AG / LinMot...
-
Page 27: Declaration Of Conformity And Ce-Marking
Normen, based on the following standards, base aux normes suivants, EN61000-6-2: 2016 EN61000-6-4: 2007 + A1: 2011 EN61000-6-7: 2015 Spreitenbach, 02.11.2020 Dr.-Ing. Ronald Rohner CEO NTI AG NTI AG / LinMot P01-23-HP-SSCP Seite 27 / 30... -
Page 28: Cb Test Certificate
Installation Guide Linear Motors 11 CB Test Certificate Seite 28 / 30 P01-23-HP-SSCP NTI AG / LinMot... - Page 29 Installation Guide Linear Motors Notes NTI AG / LinMot P01-23-HP-SSCP Seite 29 / 30...
- Page 30 ALL LINEAR MOTION FROM A SINGLE SOURCE Europe / Asia Headquarters North / South America Headquarters NTI AG - LinMot & MagSpring LinMot USA Inc. Bodenaeckerstrasse 2 N1922 State Road 120, Unit 1 CH-8957 Spreitenbach Lake Geneva, WI 53147 Switzerland Sales / Administration: +41 56 419 91 91 Sales / Administration: 262.743.2555...
