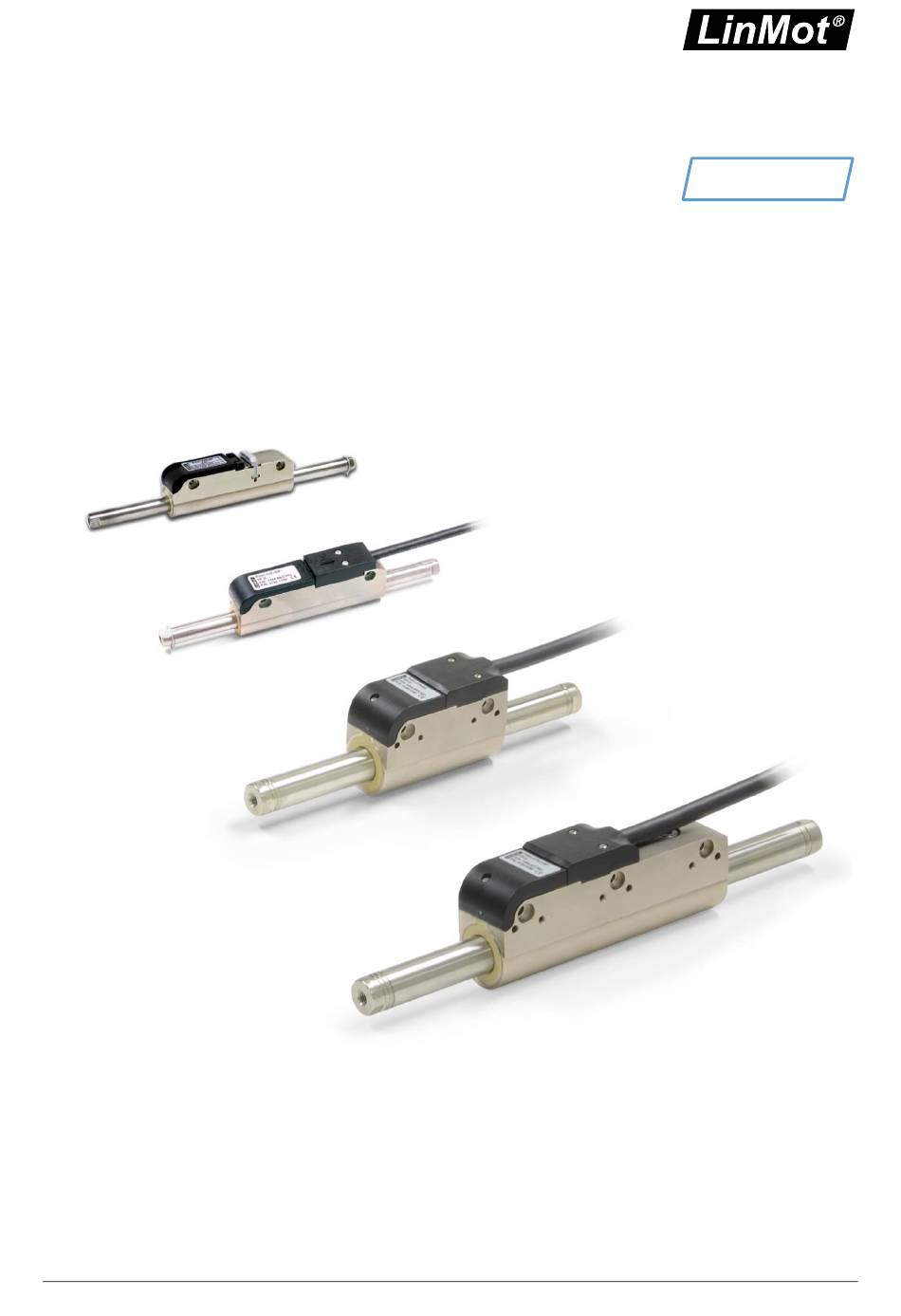

- Page 1 Installation Guide Linear Motors P02-23S / P01-37S Short type NTI AG / LinMot Dok-Nr. 0185-0002-E_3V1_IG_Linear_Motors_Short_Type...
-
Page 2: Table Of Contents
Cleaning ............................22 Cleaning agent / Lubricant ......................22 6.3.4 Storage, transport, installation altitude ....................23 Dimensions ............................. 24 Stator PS02-23Sx80-F ........................24 Stator PS02-23Sx80F-HP-K ......................25 Stator PS01-37Sx60F-HP-N ......................26 Page 2 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... - Page 3 Installation Guide Linear Motors Stator PS01-37Sx120F-HP-N ......................27 Declaration of Conformity and CE-marking ..................28 CB Test Certificate ..........................29 NTI AG / LinMot P02-23S / P01-37S Short type Page 3 / 30...
-
Page 4: General Information
1.4 Liability NTI AG (as manufacturer of LinMot linear motors and MagSpring products) excludes all liability for damages and expenses caused by incorrect use of the products. This also applies to false applications, which are caused by NTI AG's own data and notes, for example in the course of sales, support or application activities. -
Page 5: Safety Instructions
Before working, make sure that there are no high voltages. Fast-moving machine parts The sliders of LinMot linear motors are fast-moving machine parts. All necessary precautions must be taken to prevent persons approaching the moving elements during operation (provide covers, guards, etc.). - Page 6 When machining magnets, the drilling dust could easily ignite. Machining the sliders and the magnets they contain is not permitted. Burn hazard The sliders of LinMot motors can reach temperatures of 80 °C, which may cause burns upon contact. Grounding All metal parts that are exposed to contact during any user operation or servicing and likely to become energized shall be reliably connected to the means for grounding.
-
Page 7: Installation Instructions
2. Lubricate the slider in accordance with the « lubrication order » (see the section 6.3) 3. Insert the slider in regular direction (see Assembly step 4.). NTI AG / LinMot P02-23S / P01-37S Short type Page 7 / 30... -
Page 8: Mounting The Payload To The Slider
When attaching the load, the wrench for tightening the load must be used only on the load- facing side of the slider. Avoid torsional stress on slider (note the following figures). Page 8 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... -
Page 9: Moving Slider" Installation
Slider mounting kits) are used to connect to the load. The mounting kit of slider and an oversized hole for the screw make it possible to adjust a radial and angle offset. NTI AG / LinMot P02-23S / P01-37S Short type Page 9 / 30... -
Page 10: Moving Stator" Installation
On the opposite end, the slider is mounted in a floating bearing. Mounting kits are available for mounting the slider (see the section Slider mounting kits). Page 10 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... -
Page 11: Assembling Instruction
15 mm) between slider and linear guide. The spacer prevents injuries to the hands and damage to the slider surface! 3. Insert slider into stator. NTI AG / LinMot P02-23S / P01-37S Short type Page 11 / 30... - Page 12 7. Move stator (front side) to the floating bearing and tighten screws. After the installation of the slider a safety label must be placed close to the slider. Page 12 / 30 P02-23S / P01-37S Short type NTI AG / LinMot...
-
Page 13: Minimum Distance From Slider
(iron, steel, non-ferromagnetic metallic parts etc.) (aluminum, bronze, stainless steel, etc.) P01-23x… 10 mm 5 mm P01-37x… 15 mm 7 mm P01-48x… 20 mm 10 mm NTI AG / LinMot P02-23S / P01-37S Short type Page 13 / 30... -
Page 14: Motor Cable
Adapter cables for all other short motor types are available with different connectors and in different length. Please find a list of these options in the LinMot data book on www.linmot.com. If you need a special cable, please contact LinMot directly (see contact information on last page). -
Page 15: Mounting The Motor Cable
Then plug on the cable relief. 4.3.2 PS02-23Sx80F-HP-K Cable outlet to the front Position Description M2.5 x 12 Cover M2.5 x 6 Shielding and cable relief Cable with connector NTI AG / LinMot P02-23S / P01-37S Short type Page 15 / 30... -
Page 16: Ps01-37Sx60 (120) F-Hp-N
• It is important to ensure that the cable relief must be positioned differently depending on the direction of the cable outlet. Cable outlet to the front Page 16 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... - Page 17 M2.5 x 10 Shielding and cable relief Cable with connector Ordering information Description Description Description PSM01-37S Spare part kit incl. Pos 2 and 3 with srews 0150-3469 NTI AG / LinMot P02-23S / P01-37S Short type Page 17 / 30...
-
Page 18: Accessories
Floating bearing assembly that permits radial adjustment of slider position and permits a small amount of radial and axial movement. Material Housing: Stainless steel 1.4305 Bearing: Nitrile butadiene rubber Spring steel DIN17223 Page 18 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... -
Page 19: Complete Mounting Kit
1 Socket hd. cap screw * DIN 912 / M8, L=35 mm (L=1.38 in) 4 Socket hd. cap screw * DIN 912 / M5, L=20 mm (L=0.78 in) * For use with 12 mm (1/2 in) thick mounting plates. NTI AG / LinMot P02-23S / P01-37S Short type Page 19 / 30... -
Page 20: Maintenance And Test Instructions
6.1 Stator connector assignment Do not connect or disconnect motor when there is power on the servo drive. Use only original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 21: Stator Checking
All Pin / Shield Pin 1-4, A-E / Housing >20 M For stators before serial no. xxxx.3IJ.xxx For stators before serial no. xxxx.3UZ.xxx For stators before serial no. xxxx.371.xxx NTI AG / LinMot P02-23S / P01-37S Short type Page 21 / 30... -
Page 22: Maintenance Of Linear Motors
Finally, slider should be lubricated according to the chapter 'mounting'. 6.3.4 Cleaning agent / Lubricant For the cleaning of LinMot stators and sliders cleaning agent spray LU06 is recommended. To improve the sliding characteristics between the stainless steel surface of the slider and the plastic slide bearing the LinMot lubricant LU02 is prescribed. -
Page 23: Storage, Transport, Installation Altitude
Installation Guide Linear Motors * LinMot Spray LU06 corresponds to KLÜBERFOOD NH1 4-002 which was developed for the food processing industry. ** LinMot LU02 Lubricant corresponds to KLÜBERSYNTH UH1 14-31 which was developed for the food processing industry. 7 Storage, transport, installation altitude •... -
Page 24: Dimensions
Installation Guide Linear Motors 8 Dimensions 8.1 Stator PS02-23Sx80-F in mm Page 24 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... -
Page 25: Stator Ps02-23Sx80F-Hp-K
Installation Guide Linear Motors 8.2 Stator PS02-23Sx80F-HP-K in mm NTI AG / LinMot P02-23S / P01-37S Short type Page 25 / 30... -
Page 26: Stator Ps01-37Sx60F-Hp-N
Installation Guide Linear Motors 8.3 Stator PS01-37Sx60F-HP-N Cable outlet right Cable outlet front Cable outlet left in mm Page 26 / 30 P02-23S / P01-37S Short type NTI AG / LinMot... - Page 27 Installation Guide Linear Motors 8.4 Stator PS01-37Sx120F-HP-N Cable outlet right Cable outlet front Cable outlet left in mm NTI AG / LinMot P02-23S / P01-37S Short type Page 27 / 30...
- Page 28 EN61000-6-2:2005 EN61000-6-4:2007 + A1:2011 Jahr der CE-Kennzeichnung: Year of CE marking: Annee du marquage CE: 2017 Spreitenbach, 24.05.2019 Dr.-Ing. Ronald Rohner CEO NTI AG Page 28 / 30 P02-23S / P01-37S Short type NTI AG / LinMot...
- Page 29 Installation Guide Linear Motors 10 CB Test Certificate NTI AG / LinMot P02-23S / P01-37S Short type Page 29 / 30...
- Page 30 Tech. Support: +41-(0)56-544 71 00 Tech. Support: usasupport@linmot.com support@linmot.com Tech. Support (Skype): skype:support.linmot E-Mail: usasales@linmot.com Web: http://www.linmot-usa.com/ Fax: +41-(0)56-419 91 92 Web: http://www.linmot.com/ Visit http://www.linmot.com/ to find a distributor next to you. © 2019 NTI AG / LinMot Subject to alterations...
