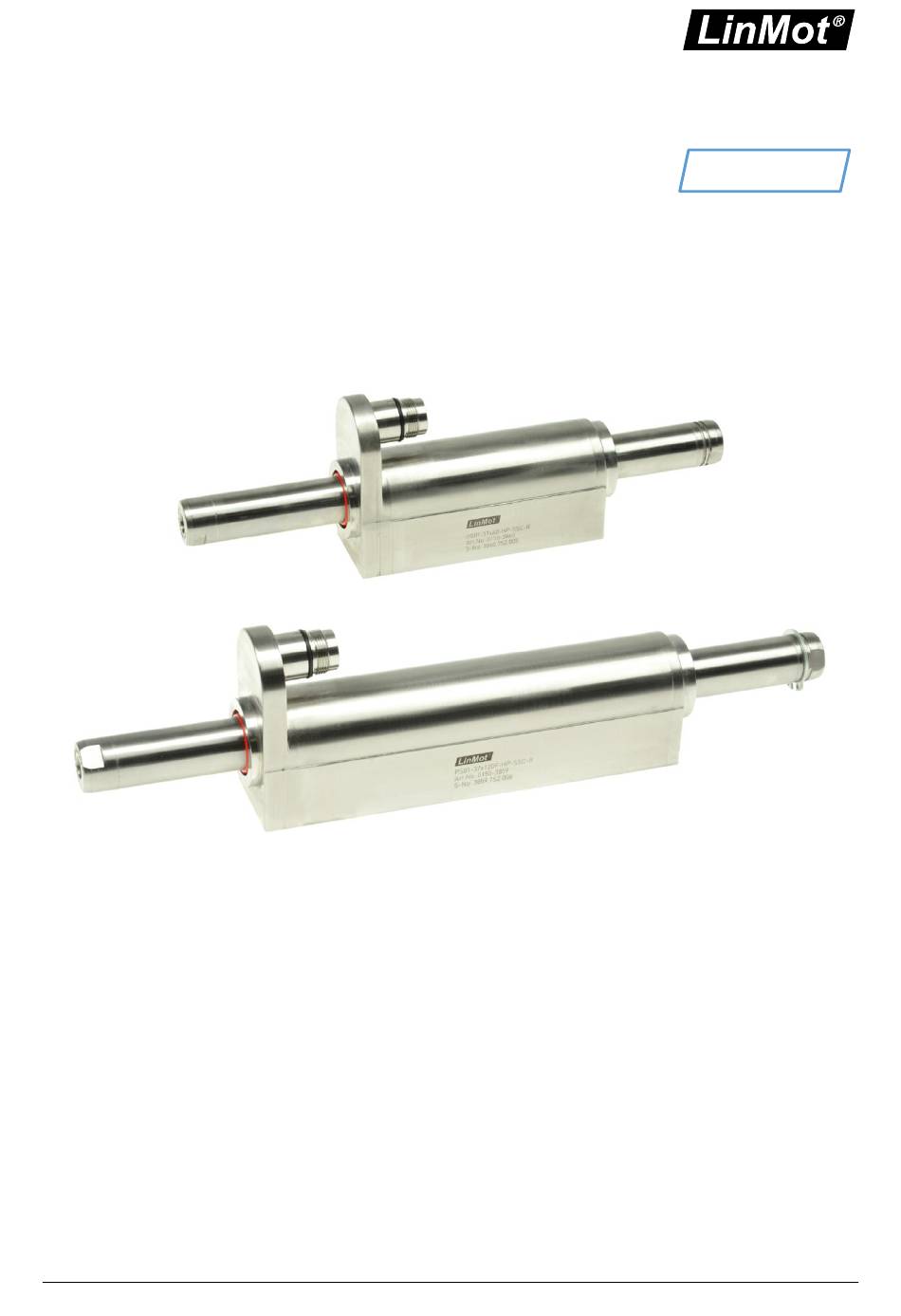

- Page 1 Installation Guide Linear Motors P01-37S-HP-SSCP NTI AG / LinMot Dok-Nr. 0185-0116-E_1V1_IG_Linear_Motors_P01-37S-HP-SSCP...
-
Page 2: Table Of Contents
Maintenance of linear motors .......................20 6.2.1 Maintenance schedule ......................20 6.2.2 Cleaning ..........................20 6.2.3 Cleaning agents / Lubricants ....................20 Storage, transport, installation altitude ....................20 Dimensions ............................21 Stator ............................21 8.1.1 PS01-37Sx60-HP-B02-SSCP-R / PS01-37Sx60-HP-B03-SSCP-R ...........21 Page 2 / 28 P01-37S-HP-SSCP NTI AG / LinMot... - Page 3 Installation Guide Linear Motors 8.1.2 PS01-37Sx120F-HP-B02-SSCP-R / PS01-37Sx120F-HP-B03-SSCP-R ........21 Slider ............................22 8.2.1 Slider HP / Heavy Duty HP.......................22 8.2.2 Hollow slider HP ........................23 Declaration of Conformity and CE-marking ..................24 CB Test Certificate ........................25 NTI AG / LinMot P01-37S-HP-SSCP Page 3 / 28...
-
Page 4: General Information
Liability NTI AG (as manufacturer of LinMot linear motors and MagSpring products) excludes all liability for damages and expenses caused by incorrect use of the products. This also applies to false applications, which are caused by NTI AG's own data and notes, for example in the course of sales, support or application activities. -
Page 5: Safety Instructions
Before working, make sure that there are no high voltages. Fast-moving machine parts The sliders of LinMot linear motors are fast-moving machine parts. All necessary precautions must be taken to prevent persons approaching the moving elements during operation (provide covers, guards, etc.). - Page 6 When machining magnets, the drilling dust could easily ignite. Machining the sliders and the magnets they contain is not permitted. Burn hazard The sliders of LinMot motors can reach temperatures of 80 °C, which may cause burns upon contact. Grounding All metal parts that are exposed to contact during any user operation or servicing and likely to become energized shall be reliably connected to the means for grounding.
-
Page 7: Installation Instructions
Insert the slider in the defined direction (see next assembly step). Large magnetic attraction forces (Observe warning notice from page 5)! If necessary, cover obvious iron constructions with non-magnetic material (e.g. wood). NTI AG / LinMot P01-37S-HP-SSCP Page 7 / 28... -
Page 8: Mounting The Stator
The load is mounted as a fixed bearing using spherical washers and conical seats (see the section «Slider mounting kits»). To avoid shear force on slider and wear on stator, the payload has to be beared by a linear guide. Page 8 / 28 P01-37S-HP-SSCP NTI AG / LinMot... - Page 9 Avoid torsional stress on slider (note the following figures). Incorrect mounting Torsional stress on slider! Correct mounting Slider Thread Max. torque for screw (Stainless steel A4) 20 mm 16 Nm NTI AG / LinMot P01-37S-HP-SSCP Page 9 / 28...
-
Page 10: Moving Slider" Installation
On the opposite end, the slider is mounted in a floating bearing. Mounting kits are available for mounting the slider (see the section Slider mounting kits). Page 10 / 28 P01-37S-HP-SSCP NTI AG / LinMot... -
Page 11: Assembling Instruction
Put a spacer (wood, plastic, aluminium with thickness 15 mm) between slider and linear guide. The spacer prevents injuries to the hands and damage to the slider surface! Insert slider into stator. NTI AG / LinMot P01-37S-HP-SSCP Page 11 / 28... - Page 12 Move stator (front side) to the floating bearing and tighten screws. After the installation of the slider a safety label must be placed close to the slider. Page 12 / 28 P01-37S-HP-SSCP NTI AG / LinMot...
-
Page 13: Minimum Distance From Slider
Minimum distance from slider surface Minimum distance from slider surface to Motor to ferromagnetic parts (iron, steel, non-ferromagnetic metallic parts etc.) (aluminum, bronze, stainless steel, etc.) P10-70x… 20 mm 10 mm NTI AG / LinMot P01-37S-HP-SSCP Page 13 / 28... -
Page 14: Electrical Connection
Motor cable Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 15: Ip Class Ip69K
4.2.3 Pin assignment linear motor Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 16: Accessories
Note: The usual standard cables, which are used for stationary installation, are also available on request. In contrast to the IP 69k cables listed above, the standard cables meet the IP67 protection class. Page 16 / 28 P01-37S-HP-SSCP NTI AG / LinMot... -
Page 17: Bearing Kit
Installation Guide Linear Motors Bearing kit For fast, uncomplicated maintenance, the linear motors P01-37S-HP-SSCP are equipped with replaceable slider bearings. The integrated sliding bearings are east to replace in a few manual steps. These plastic bearings are specially designed for food processing and allow easy wash-down of the stator and slider. -
Page 18: Floating Bearing
Material Housing: Stainless steel 1.4305 Bearing: Nitrile butadiene rubber Spring steel DIN17223 Item Item No. Slider Thread PLL01-20 0150-3084 20mm 20mm 23mm 30mm 37mm 20mm (0.79in) (0.90in) (1.18in) (1.46in) (0.79in) Page 18 / 28 P01-37S-HP-SSCP NTI AG / LinMot... -
Page 19: Maintenance And Test Instructions
Temp. Sensor / GND Black / Brown Pin E / Pin B 10 k Phase / GND Pin 1,2,3,4 / Pin B >20 M All Pin / Shield Pin 1-E / Housing >20 M NTI AG / LinMot P01-37S-HP-SSCP Page 19 / 28... -
Page 20: Maintenance Of Linear Motors
Finally, grease the slider according to paragraph 3.2 "Assembly of the linear motor". 6.2.3 Cleaning agents / Lubricants All LinMot stainless steel motors have a protection class of IP69. Standard cleaning agents in food and pharmaceutical industries with usual concentration and amount, can be used for the cleaning. If necessary, compatibility with the bearing material (PEEK / PPS) and the wiper material (H-ECOPUR) must be checked. -
Page 21: Dimensions
Installation Guide Linear Motors 8 Dimensions Stator 8.1.1 PS01-37Sx60-HP-B02-SSCP-R / PS01-37Sx60-HP-B03-SSCP-R in mm 8.1.2 PS01-37Sx120F-HP-B02-SSCP-R / PS01-37Sx120F-HP-B03-SSCP-R in mm NTI AG / LinMot P01-37S-HP-SSCP Page 21 / 28... -
Page 22: Slider
Slider 'heavy duty' 'High Performance 0150-2166 PL02-20x600/540-HP Slider 'heavy duty' 'High Performance 0150-2167 PL02-20x700/640-HP Slider 'heavy duty' 'High Performance 0150-2168 PL02-20x800/740-HP Slider 'heavy duty' 'High Performance 0150-2169 PL02-20x900/840-HP Slider 'heavy duty' 'High Performance 0150-2170 Page 22 / 28 P01-37S-HP-SSCP NTI AG / LinMot... -
Page 23: Hollow Slider Hp
0150-3702 PL01-20x1000/940-HP-L Slider 'High Performance L' 0150-3703 1000 PL01-20x1200/1140-HP-L Slider 'High Performance L' 0150-2510 1200 PL01-20x1400/1340-HP-L Slider 'High Performance L' on request 1400 PL01-20x1600/1540-HP-L Slider 'High Performance L' on request 1600 NTI AG / LinMot P01-37S-HP-SSCP Page 23 / 28... -
Page 24: Declaration Of Conformity And Ce-Marking
Normen, based on the following standards, base aux normes suivants, EN61000-6-2: 2016 EN61000-6-4: 2007 + A1: 2011 EN61000-6-7: 2015 Spreitenbach, 06.02.2020 Dr.-Ing. Ronald Rohner CEO NTI AG Page 24 / 28 P01-37S-HP-SSCP NTI AG / LinMot... -
Page 25: Cb Test Certificate
Installation Guide Linear Motors 10 CB Test Certificate NTI AG / LinMot P01-37S-HP-SSCP Page 25 / 28... - Page 26 Installation Guide Linear Motors Notes Page 26 / 28 P01-37S-HP-SSCP NTI AG / LinMot...
- Page 27 Installation Guide Linear Motors Notes NTI AG / LinMot P01-37S-HP-SSCP Page 27 / 28...
- Page 28 Sales / Administration : 262-743-2555 F +41-(0)56-419 91 92 usasales@linmot.com office@linmot.com Tech. Support: +41-(0)56-544 71 00 Tech. Support: usasupport@linmot.com support@linmot.com Web: http://www.linmot.com/ Web: http://www.linmot-usa.com/ Visit http://www.linmot.com/ to find a distributor next to you. © 2020 NTI AG / LinMot Subject to alterations...
