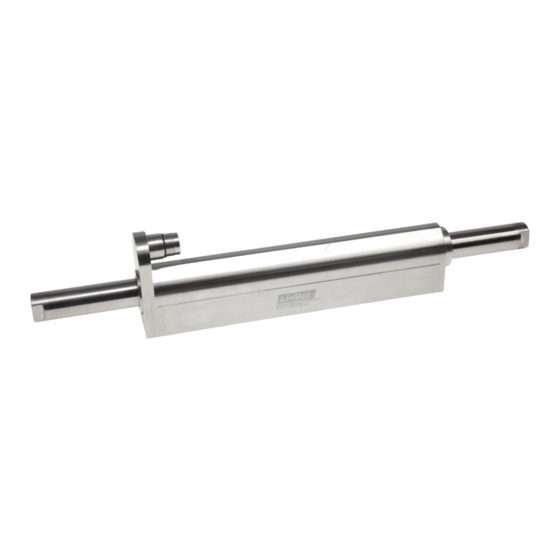

- Page 1 Installation Guide Linear Motors P01-48-HP-SSCP NTI AG / LinMot Dok-Nr. 0185-0145-E_1V0_IG_Linear_Motors_P01-48-HP-SSCP...
-
Page 2: Table Of Contents
Cleaning ............................20 6.2.3 Cleaning Agents / Lubricants ....................... 21 Storage, Transport, Installation Altitude ....................21 Dimensions ............................. 22 Stator ............................... 22 8.1.1 PS01-48x150G-HP-B02-SSCP-C....................22 8.1.2 PS01-48x240F-HP-B02-SSCP-C ....................22 Slider ..............................23 Page 2 / 26 P01-48-HP-SSCP NTI AG / LinMot... - Page 3 Installation Guide Linear Motors 8.2.1 Slider HP / HCR ........................... 23 Declaration of Conformity and CE-marking ..................24 CB Test Certificate ..........................25 NTI AG / LinMot P01-48-HP-SSCP Page 3 / 26...
-
Page 4: General Information
1.4 Liability NTI AG (as manufacturer of LinMot linear motors and MagSpring products) excludes all liability for damages and expenses caused by incorrect use of the products. This also applies to false applications, which are caused by NTI AG's own data and notes, for example in the course of sales, support or application activities. -
Page 5: Safety Instructions
Before working, make sure that there are no high voltages. Fast-moving machine parts The sliders of LinMot linear motors are fast-moving machine parts. All necessary precautions must be taken to prevent persons approaching the moving elements during operation (provide covers, guards, etc.). - Page 6 When machining magnets, the drilling dust could easily ignite. Machining the sliders and the magnets they contain is not permitted. Burn hazard The sliders of LinMot motors can reach temperatures of 80 °C, which may cause burns upon contact. Grounding All metal parts that are exposed to contact during any user operation or servicing and likely to become energized shall be reliably connected to the means for grounding.
-
Page 7: Installation Instructions
Insert the slider in the defined direction (see next assembly step). Large magnetic attraction forces (Observe warning notice from page 5)! If necessary, cover obvious iron constructions with non-magnetic material (e.g. wood). NTI AG / LinMot P01-48-HP-SSCP Page 7 / 26... -
Page 8: Mounting The Stator
The load is mounted as a fixed bearing using spherical washers and conical seats (see the section «Slider mounting kits»). To avoid shear force on slider and wear on stator, the payload has to be beared by a linear guide. Page 8 / 26 P01-48-HP-SSCP NTI AG / LinMot... - Page 9 Avoid torsional stress on slider (note the following figures). Incorrect Mounting Torsional stress on slider! Correct Mounting Slider Thread Max. torque for screw (Stainless steel A4) 28 mm 32 Nm NTI AG / LinMot P01-48-HP-SSCP Page 9 / 26...
-
Page 10: Moving Slider" Installation
On the opposite end, the slider is mounted in a floating bearing. Mounting kits are available for mounting the slider (see the section Slider mounting kits). Page 10 / 26 P01-48-HP-SSCP NTI AG / LinMot... -
Page 11: Assembling Instruction
Put a spacer (wood, plastic, aluminium with thickness 20 mm) between slider and linear guide. The spacer prevents injuries to the hands and damage to the slider surface! Insert slider into stator. NTI AG / LinMot P01-48-HP-SSCP Page 11 / 26... - Page 12 Move stator (front side) to the floating bearing and tighten screws. After the installation of the slider a safety label must be placed close to the slider. Page 12 / 26 P01-48-HP-SSCP NTI AG / LinMot...
-
Page 13: Minimum Distance From Slider
Minimum distance from slider surface Minimum distance from slider surface to Motor to ferromagnetic parts (iron, steel, non-ferromagnetic metallic parts etc.) (aluminum, bronze, stainless steel, etc.) P01-48x… 20 mm 10 mm NTI AG / LinMot P01-48-HP-SSCP Page 13 / 26... -
Page 14: Electrical Connection
4.1 Motor Cable Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 15: Connectors
4.2.1 Pin Assignment Linear Motor Do not connect or disconnect motor when there is power on the servo drive. Use only double-shielded original LinMot cable. Cables from other sources must be checked precisely before commissioning. Incorrect connections can destroy the drive and stator. -
Page 16: Accessories
Trailing Chain Cable W/C-SSC, 6 m 0150-2677 KS10-W/C-SSC-8 Trailing Chain Cable W/C-SSC, 8 m 0150-2678 KS10-W/C-SSC- Trailing Chain Cable W/C-SSC, Custom length 0150-3358 KS10-Y/C-SSC-2 Trailing Chain Cable Y/C-SSC, 2 m 0150-2679 Page 16 / 26 P01-48-HP-SSCP NTI AG / LinMot... - Page 17 MC01-Y-Fe/m Motor Connector Y-Fe/m 0150-3289 MC01-C/f-IP69K-SSC Motor Connector C/f, IP69K, SSC 0150-3306 K15-04/05 Motor Cable per m 0150-1978 KS10-04/05 Trailing Chain Cable per m 0150-1977 KR10-04/05 Robot Cable per m 0150-1830 NTI AG / LinMot P01-48-HP-SSCP Page 17 / 26...
-
Page 18: Bearing Kit
Installation Guide Linear Motors 5.2 Bearing Kit For fast, uncomplicated maintenance, the linear motors P01-48-HP-SSCP are equipped with replaceable slider bearings. The integrated sliding bearings are easy to replace in a few manual steps. These plastic bearings are specially designed for food processing and allow easy wash-down of the stator and slider. -
Page 19: Floating Bearing
Material Housing: Stainless steel 1.4305 Bearing: Nitrile butadiene rubber Spring steel DIN17223 Item Item No. Slider Thread PLL01-28 0150-3094 28mm 28mm 32mm 40mm 48mm 20mm (1.10in) (1.26in) (1.57in) (1.89in) (0.79in) NTI AG / LinMot P01-48-HP-SSCP Page 19 / 26... -
Page 20: Maintenance And Test Instructions
Clean the slider and bearings with a soft disposable paper, using for example acetone or benzene cleaner. Common cleaning agents used in the food industry may also be used. However, these should not leave any residues. Page 20 / 26 P01-48-HP-SSCP NTI AG / LinMot... -
Page 21: Cleaning Agents / Lubricants
Finally, grease the slider according to paragraph 3.2 "Assembly of the linear motor". 6.2.3 Cleaning Agents / Lubricants All LinMot stainless steel motors have a protection class of IP69. Standard cleaning agents in food and pharmaceutical industries with usual concentration and amount, can be used for the cleaning. If necessary, the compatibility with the bearing material (PEEK / PPS), the wiper material (NBR FDA) and the cable sheath material (PUR) must be checked. -
Page 22: Dimensions
Installation Guide Linear Motors 8 Dimensions 8.1 Stator 8.1.1 PS01-48x150G-HP-B02-SSCP-C in mm 8.1.2 PS01-48x240F-HP-B02-SSCP-C in mm Page 22 / 26 P01-48-HP-SSCP NTI AG / LinMot... -
Page 23: Slider
Slider 'High Performance' HCR 0150-4295 PL01-28x1010/960-HP-W01 Slider 'High Performance' HCR 0150-4296 1010 PL01-28x1220/1170-HP-W01 Slider 'High Performance' HCR 0150-4297 1220 PL01-28x1400/1350-HP-W01 Slider 'High Performance' HCR 0150-4298 1400 PL01-28x1610/1560-HP-W01 Slider 'High Performance' HCR 0150-4299 1610 NTI AG / LinMot P01-48-HP-SSCP Page 23 / 26... - Page 24 Normen, based on the following standards, base aux normes suivants, EN61000-6-2: 2016 EN61000-6-4: 2007 + A1: 2011 EN61000-6-7: 2015 Spreitenbach, 28.06.2021 Dr.-Ing. Ronald Rohner CEO NTI AG Page 24 / 26 P01-48-HP-SSCP NTI AG / LinMot...
- Page 25 Installation Guide Linear Motors 10 CB Test Certificate NTI AG / LinMot P01-48-HP-SSCP Page 25 / 26...
- Page 26 Sales / Administration : 262-743-2555 F +41-(0)56-419 91 92 usasales@linmot.com office@linmot.com Tech. Support: +41-(0)56-544 71 00 Tech. Support: usasupport@linmot.com support@linmot.com Web: http://www.linmot.com/ Web: http://www.linmot-usa.com/ Visit http://www.linmot.com/ to find a distributor next to you. © 2021 NTI AG / LinMot Subject to alterations...
