2.6.2 Wiring Examples

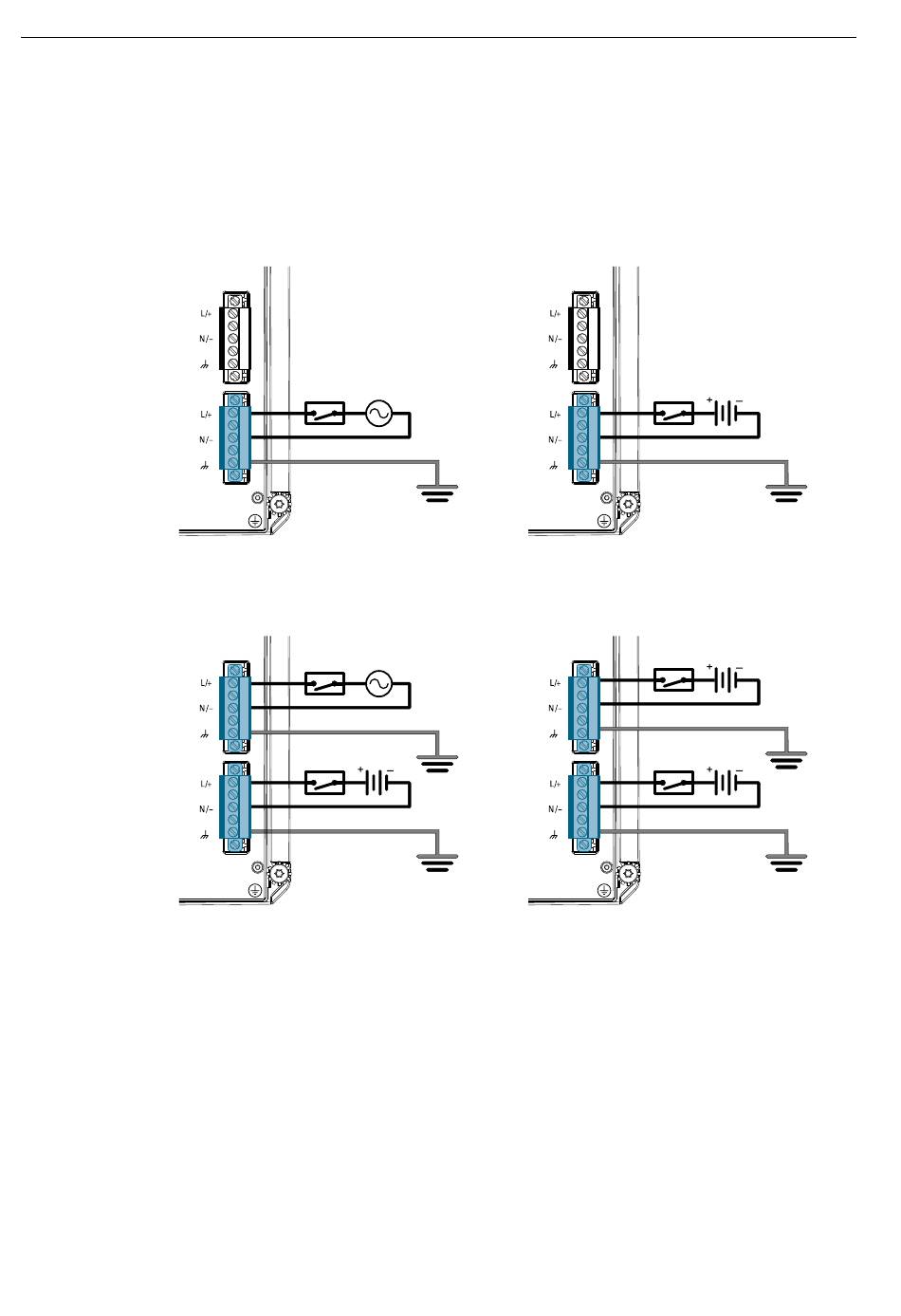

The following illustrate how to connect single and dual power supplies to the device.
HI Power Supply Configurations
Figure 2.13
Figure 2.15
RUGGEDCOM RST916C
Installation Manual, 04/2021, C79000-G8976-1490-03
Single HI AC Power Input
Configuration
Dual HI AC and DC Power
Supplies
2.6.2 Wiring Examples
Figure 2.14 Single HI DC Power Input
Configuration
Figure 2.16 Dual HI DC Power Supplies
Installing the Device
