Installing the device
2.5.2 Connecting main power
6.
2.5.2.1

Wiring examples

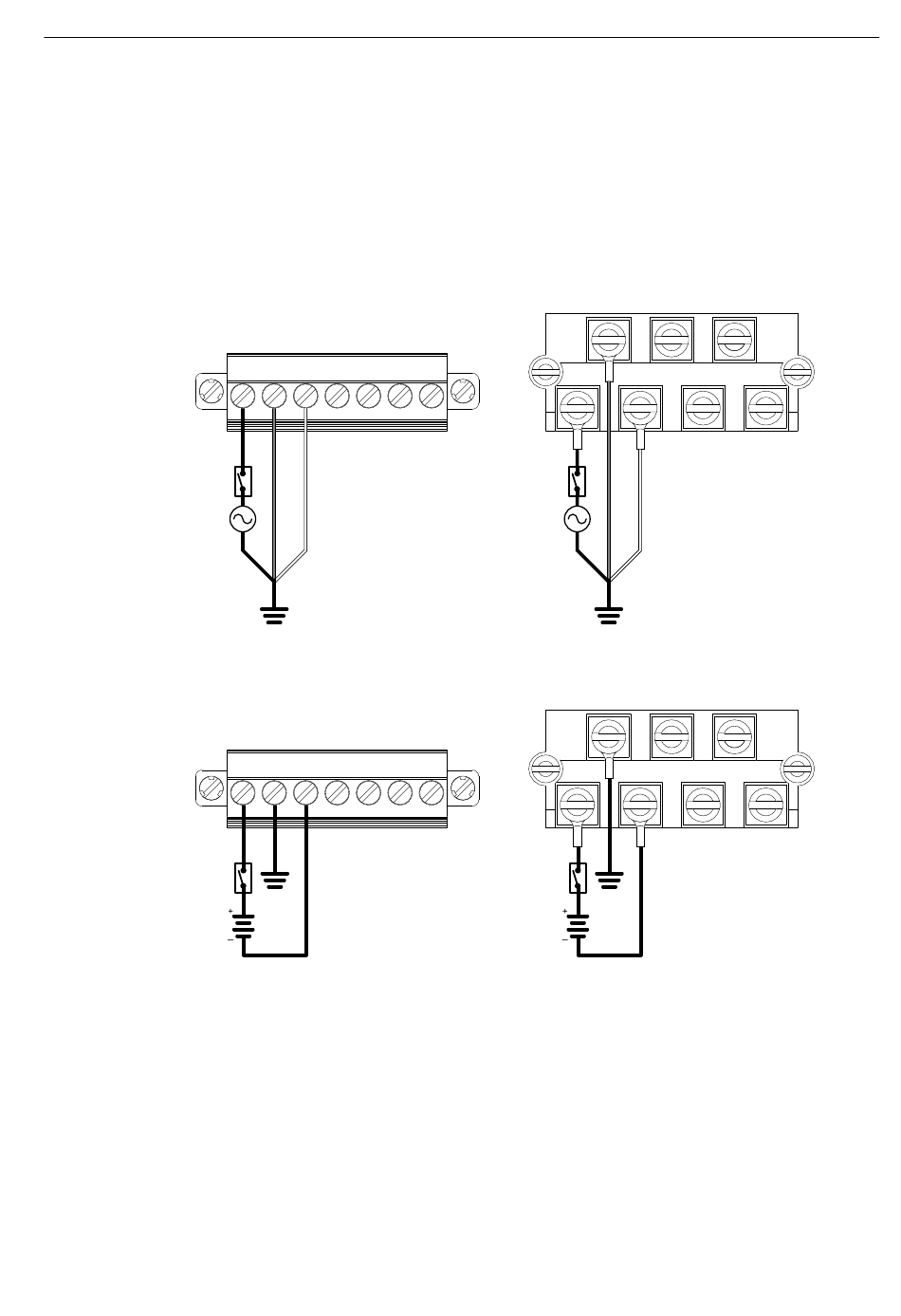

The following illustrate how to connect single and dual power supplies to the device.
Figure 2.15
Figure 2.16
32
Connect the device to ground (Protective Earth).
For more information, refer to "Grounding the device" (Page 38).
Single high AC/DC power supply
Single low DC power supply
