Communication Ports

The RUGGEDCOM RST916C can be equipped with various types of communication
ports to enhance its abilities and performance.
2
3
1
2
3

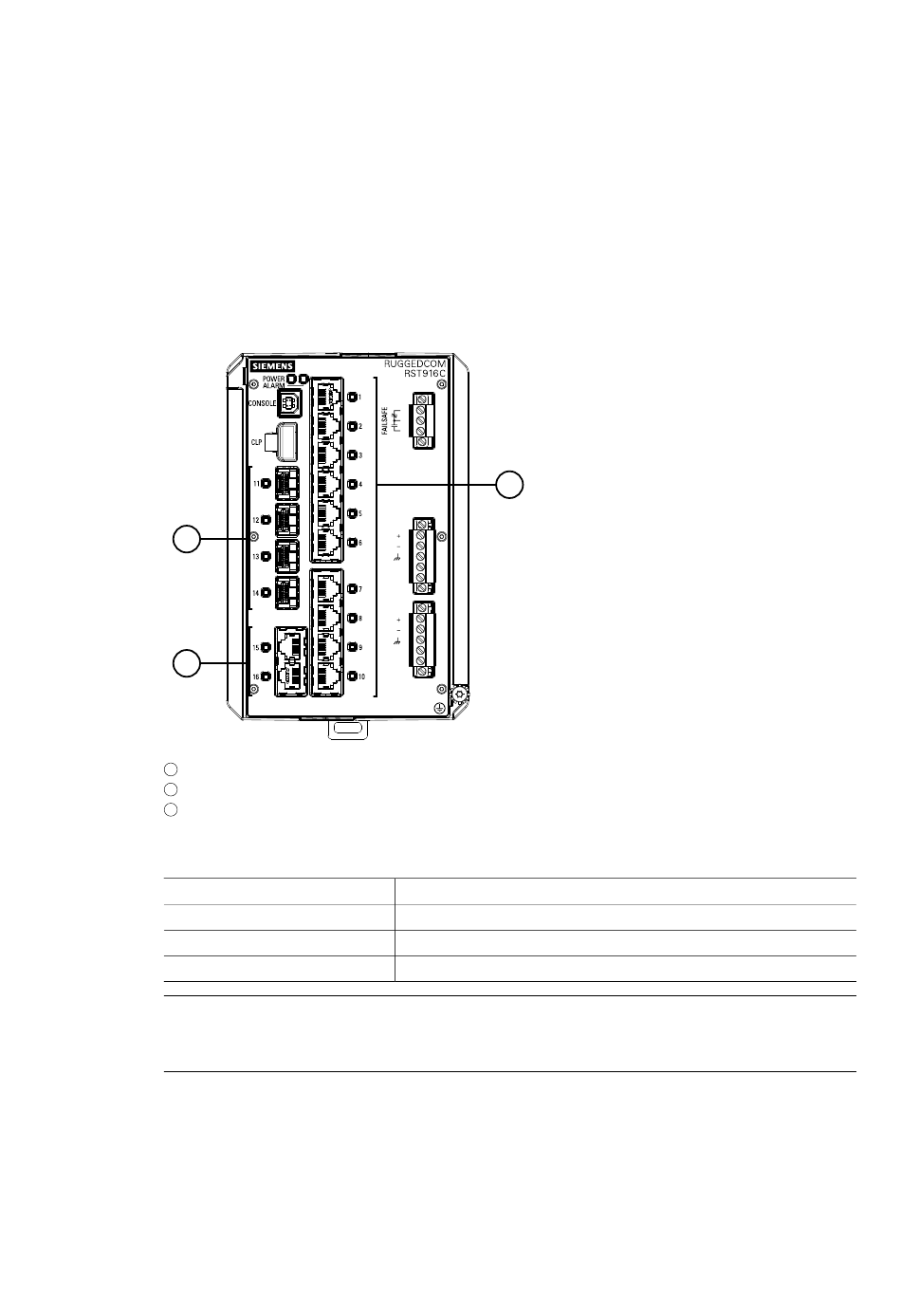

Figure 4.1
Note
When connecting the device to a 10 Gbps network, connect ports 11 and 12 and
ports 13 and 14 in pairs to guarantee non-blocking operation.
RUGGEDCOM RST916C
Installation Manual, 04/2021, C79000-G8976-1490-03
Ports 1 to 10
Ports 11 to 14
Ports 15 to 16
Port Assignment
Port
1 to 10
11 to 14
15 and 16
1
Copper (10/100/1000Base-T) Ethernet Ports
SFP/SFP+ Transceivers
Copper (10/100/1000Base-T) Ethernet Ports
Type
4
