9.3.3

Connectors

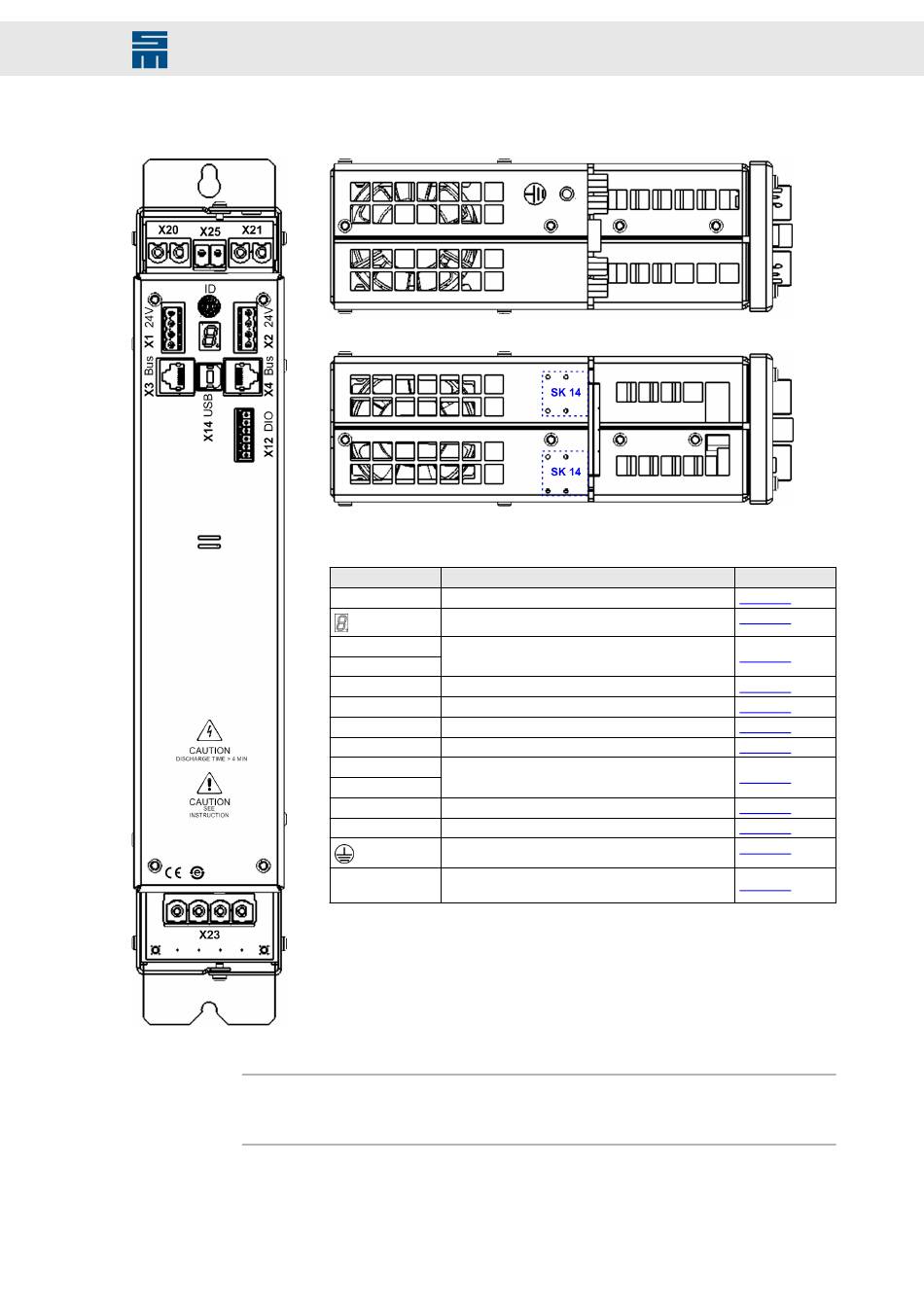

Fig. 68: Front view
Note
You can order the suitable connector kit for the device variant 0362191y at SIEB & MEY-
ER under article number 32299540.
Drive System SD2 - Hardware Description
Fig. 69: Top view
Fig. 70: Bottom view
Connector Meaning
ID Address selection switch of device
Status display
X1 24 V
Power bus: 24 V logic supply and status message
from the power supply
X2 24 V
X3 Bus Bus inputs
X4 Bus Bus outputs
X12 DIO Digital inputs / digital outputs
X14 USB USB interface for parameterization
X20
DC link output
X21
X23 Mains supply of power supply unit
X25 External ballast resistor
Device housing ground
Mounting holes for shield connection clamp SK 14
SK 14
by Phoenix
Power Supply Unit PS2
Description
page 107
page 164
page 107
page 108
page 108
page 116
page 118
page 118
page 121
page 121
page 151
page 152
93
