12.20 X26/ X27 – SERVOLINK 4
SERVOLINK 4: optical input (X26) and optical output (X27)
The fiber optic connectors for SERVOLINK 4 are located at the bottom side of the de-
vice.
Risk of cable damage
If you pull the optical fiber cable with its connector too fast out of the connector, the cable
may be damaged.
→ When unplugging the cable, hold the fiber optic connector and pull the cable care-
fully out of the connector.
Related topics
X26/X27 – SERVOLINK, page 151
Connection Diagram, page 186

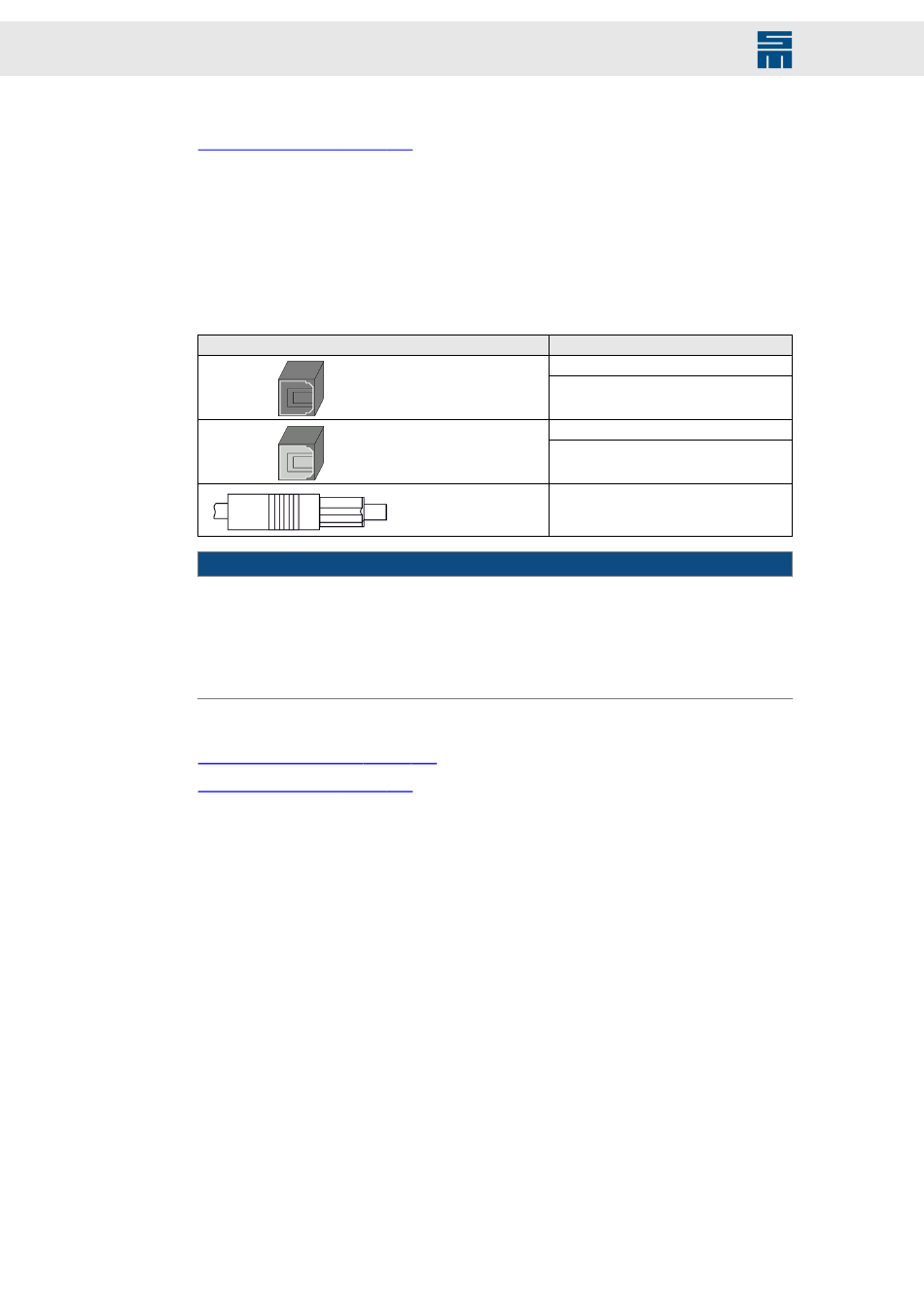

12.20.1 Preparation of Optical Fiber Cables with
Connector
Every optical fiber connector requires an optical fiber cable with a male connector. The
following information apply for connectors used in applications with 1 mm standard plas-
tic optical fibers (POF).
122
Connector
Inputs (black)
Outputs (gray or white)
Cable connector
(TOSLINK F05)
NOTICE
SIEB & MEYER article number
12540102
12540103
12540202
12540203
32022900
