Single-axis Drive Amplifiers
For further information on the water cooling refer to
(0362111OF/RF/SF)", page
The device is designed for vertical wall mounting. Other setup positions are possible but
you must consult SIEB & MEYER before.
6.4.1
Dimensions
The housing changes from July 2019 are gray-colored.

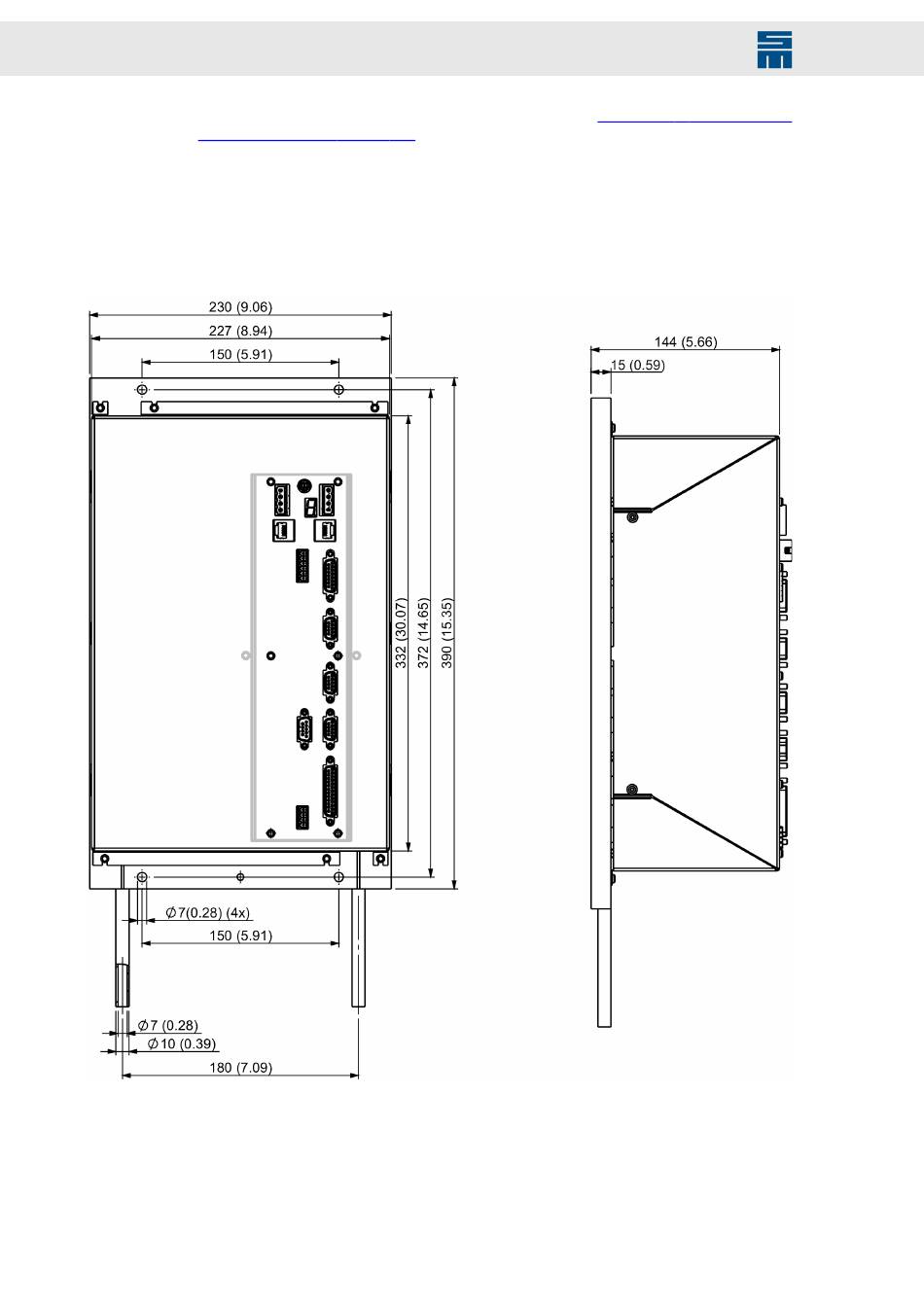

Fig. 16: Dimensions 0362111RF in mm (inch)
38
105.
Drive System SD2 - Hardware Description
chapter 11 "Water Cooling
