Mounting Example with External Heat Sink
10.2
Extruded Heat Sink Made of Aluminum
This solution is suited for average performance applications:

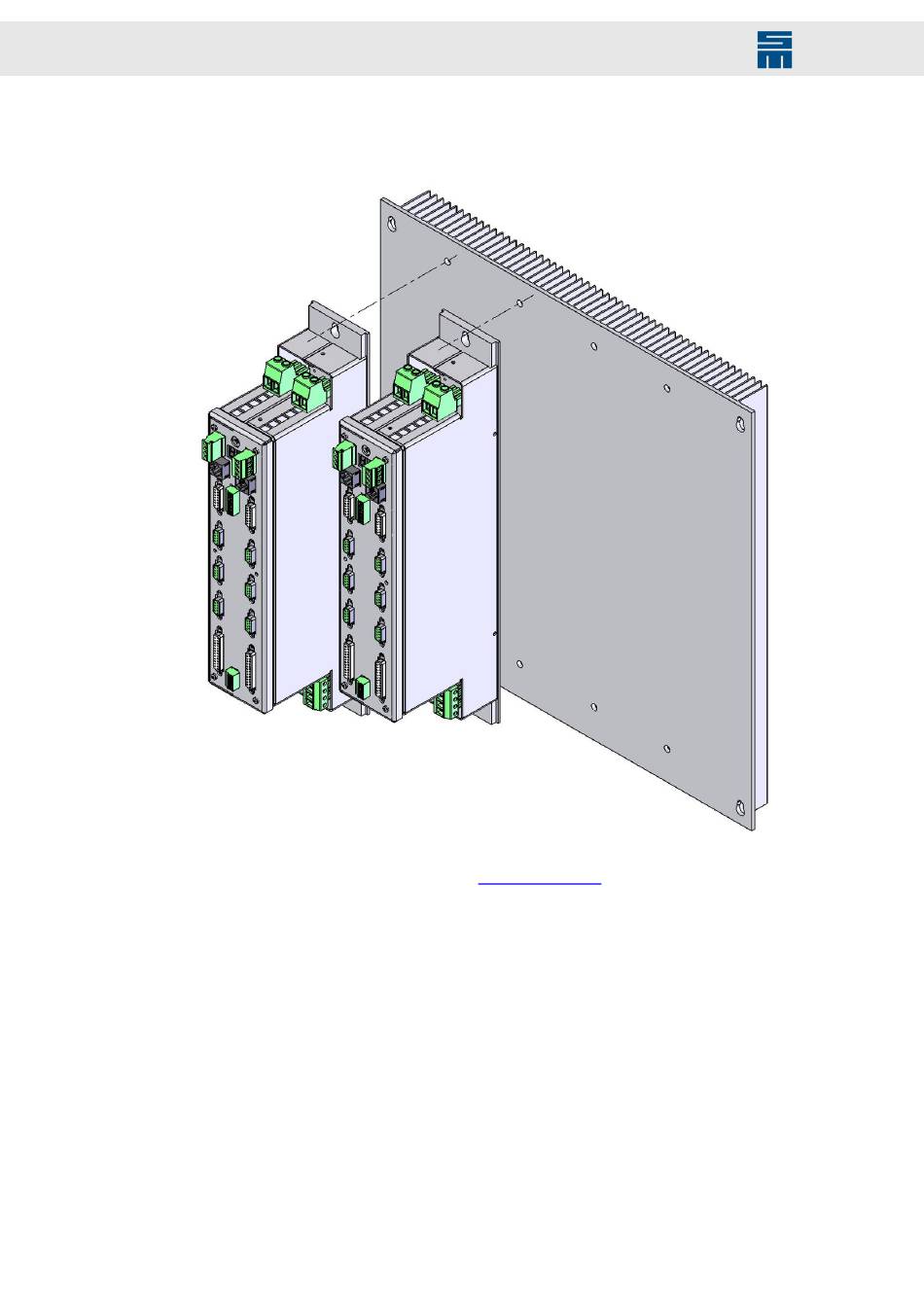

Fig. 76: Mounting the SD2 to an extruded heat sink
Heat sinks are, for example, available at
100
Fischer
Elektronik.
