SIEB & MEYER SD2 Series Hardware Description page 153

The device is designed for usage with the following shield connection clamps by
Phoenix:
Shield connection clamp
SK 8
SK 14
SK 20

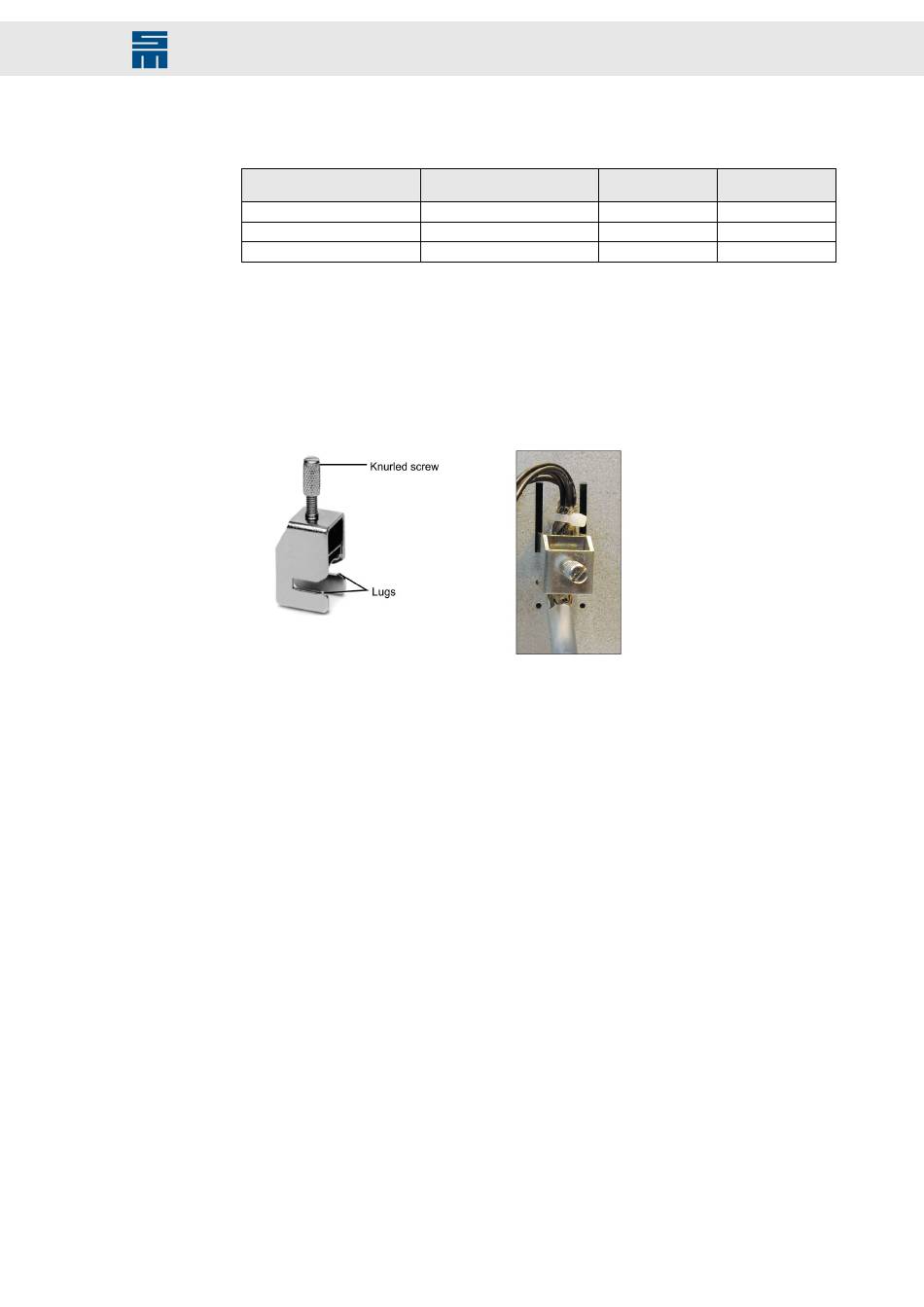

Creating the contact between a cable and the device housing
1. Remove the insulation of the cable in the place the shield connection clamp is to be
fixed.
2. Place the cable between the suitable slot holes at the device.
3. Put the clamp over the cable into the slot holes.
4. Push the clamp to the back so that the lugs lock in the circular holes.
5. Fix the cable using the knurled screw.
Drive System SD2 - Hardware Description
Connection method
Screw connection (M4)
Screw connection (M4)
Screw connection (M4)
Connection Examples
Max. tightening Phoenix article
torque number
0.6 Nm 3025163
0.8 Nm 3025176
0.8 Nm 3025189
